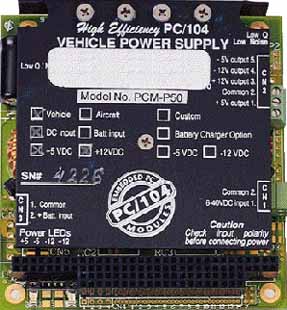

PCM-P50/N PC/104 Vehicle Power Supply

Pricing

PCM-P50/N is a PC/104 Vehicle Power Supply that provides a convenient way to supply power to PC/104 bus equipped products. PCM-P50 is a high-efficiency 50 Watt DC to DC converter with optional Power management unit with "logic level" remote shutdown feature. The power management unit is to to allow remote shutdown and programmed control of the power supply. PCM-P50/N is designed for embedded vehicular applications to withstand low ambient temperatures (-40°C), and the shocks and vibrations of mobile equipment.

FEATURES

Clean and filtered power for the PC/104 bus
PCM-P50 : 5V & 12V
PCM-P50N: ±5V & ±12V
“Load Dump” transient protection
6 to 40 V DC input range
50 Watts output
Stacks on the PC/104 bus
Highly compact, PC/104 compliant
AC bus termination optional
-40 to 85°C operation
Low quiescent current

OPTIONS

AC bus termination optional (suggested for stacks of more than 4 PC/104 modules)
Backup Battery input
Backup battery charger up to 1A
Power management unit with wires to control power operations

SPECIFICATIONS

Output Voltage:
- +5V @ 10A, +12V @ 2A
- -5V @ 400 mA, -12V @ 500 mA(Optional)
Input Range: 6 to 40V
Efficiency: up to 95%
Temp Range: -40° to 85° C
Weight: 6 oz. (174 gm)
Size: 3.55"(W) x 3.75"(L) x 0.6"(H)

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

PCM-P50 ..... Vehicle Power Supply (+5,+12V)	288.00
PCM-P50/N ... Vehicle Power Supply (+5,-5,+12,-12V)	360.00
