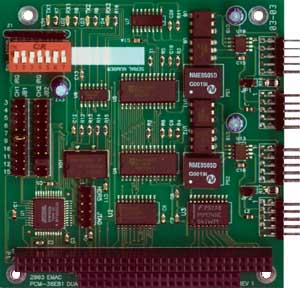

PCM-3680 / PCM-36E81

The PCM-3680 / 36E81 is a special purpose communication module which offers connectivity of the Controller Area Network to your PC/104 SBC. With the built-in CAN controller, the PCM-3680 / 36E81 provides bus arbitration and error detection with automatic transmission repeat function. The PCM-3680 / 36E81 provide two independent fully isolated CAN channels with high speed data transmission up to 1 Mbps.

Features

  • Operates two seperate CAN networks at the same time
  • High speed transmission up to 1 Mbps
  • Direct memory mapping enables very fast access to the CAN controllers
  • C library and examples included
  • DOS Library, Utility and Win 3.1/NT DeviceNet DLL drivers included

Overview

The PCM-3680 / 36E81 is a special purpose communication module which offers connectivity of the Controller Area Network to your PC/104 SBC. With the built-in CAN controller, the PCM-3680 / 36E81 provides bus arbitration and error detection with automatic transmission repeat function. The PCM-3680 / 36E81 provide two independent fully isolated CAN channels with high speed data transmission up to 1 Mbps.

Manuals

PDF icon pcm3680.pdf

Specifications

Characteristics
Module
  • Ports: 2
  • CAN Controller: SIA-1000
  • CAN Transceiver: SIA-1000
  • Signals support: CAN_H, CAN_L
  • Memory Segment Base Address: From C800H to EF00H
  • IRQ: 3, 4, 5, 6, 7, 9, 10, 11, 12 or 15
  • Isolation Voltage: 1000 VDC
  • Power Consumption: +5 V @ 400 mA
  • Connectors: dual DB-9 male connectors (cable included)
  • Operating Temperature: 32° ~ 122° F (0° ~ 65° C)
  • Dimmensions: 3.6" X 3.8" (90 mm x 96 mm)
Manuals
PDF icon pcm3680.pdf

Pricing

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-3680-0 PC/104 CAN Interface Module Includes Windows drivers $166.00
PCM-36E81 PC/104 CAN Interface Module Includes LINUX AND Windows Drivers ( Minimum Order Quantity 25 - NCNR - This Product is Build to Order ) Call
