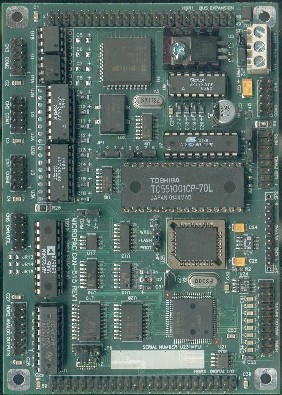

µPac 515C


  • Infineon C515C with 10.00 MHz crystal speed
  • 128 K RAM Upgrade.
  • RS422/485 replacement of RS232 Ports.
  • Upgrade Option provides 2 additional RS232 Serial Ports, a 16 bit timer/counter, and 6 additional I/O lines (3 in/ 3 out).

The MicroPac series of single board computers feature micro size with micro power consumption at a micro price. The MicroPac 515C has dimensions of 5.375" by 3.625" with a power requirement of 45 ma. typical and 80 ma. with the DUART upgrade option installed.

Features


  • CPU: Infineon C515C with 10.00 MHz crystal speed, which has an internal equivalent clock of 20 MHz. Improved architecture results in 600 nS instruction cycle time at 10.00 MHz crystal speed.
  • CAN MODULE: It is a full CAN module version 2.0 B active with 15 message objects and basic-CAN feature with data rates approaching 1 MBaud. The module has 256 register/data bytes allocated in external data memory area.
  • DIGITAL I/O: 19 TTL level, bit programmable I/O lines, 8 high current outputs, with an additional 2 inputs and 3 output lines available with the purchase of the DUART upgrade option. There is a 50 pin I/O rack compatible header connector which allows connection to 24 of these I/O lines (consisting of the 8 high current outputs, 11 TTL level programmable lines and the optional 2 inputs and 3 outputs). When the CAN option and coprocessor are not installed, an additional 8 TTL level, bit programmable I/O lines are available on a 10 pin header.
  • ANALOG INPUTS: Fast 8 channel, 10 bit analog to digital converter with a 10.4 microsecond conversion rate. A/D inputs may be also be used as an addition 8 digital inputs.
  • ANALOG OUTPUTS: The optional D/A has 4 channels with 8 bit resolution.
  • COUNTER/TIMERS/PWM: Three, 16 bit counter/timers are included standard. One of these has four I/O lines which can be used as compare outputs, or capture inputs (for Pulse Width Modulation/Demodulation). A watchdog timer is also provided. An additional 16 bit counter/timer is included with purchase of the coprocessor option.
  • COMMUNICATION: The 515C is capable of supporting up to 4 RS232 serial ports, 1 is standard and 3 are included with the purchase of optional upgrades. Conversion of up to 3 ports from RS232 to RS-422/485 is available optionally.
  • COPROCESSOR: An optional coprocessor may be added which is preprogrammed to provide an additional RS232 serial port with transmit and receive data buffering and a keypad interface (for decoding up to 20 keys in a 4x5 matrix). This coprocessor may be custom programmed by EMAC for almost unlimited capabilities. Resources available on the coprocessor: 255 bytes of RAM, a UART, two 16 bit timer/counters with counter inputs, 2 interrupt inputs, 15 I/O lines, and an analog comparator.
  • LCD INTERFACE: The interface will drive all industry-standard character displays based on the HD44780 and compatibles. It will also drive all industry-standard graphic displays based on the the HD61830 and compatibles.
  • PERIPHERAL EXPANSION: The address bus, data bus, reset and interrupt lines are included on a 50 pin bus expansion header for connecting to external peripherals from EMAC, or to peripherals of your own design.
  • MEMORY: In addition to the 255 bytes of IRAM and 2K of XRAM memory within the C515C, there is provision for up to 128 K of EPROM or in-circuit programmable FLASH and up to 512 K of RAM. Total memory capacity is 640K bytes. The C515C directly accesses 128 K of memory (64K EPROM and 64K RAM) with the balance being Banked Selected memory. A parameter storage area is implemented with a 1K bit serial EEPROM. The EEPROM is a nonvolatile memory organized into 64, 16 bit words with over 10,000 write cycles guaranteed and unlimited read cycles.
  • DISTRIBUTION CD: A CD is included with a demo program in assembly language and drivers for the onboard peripherals.
  • THIRD PARTY SOFTWARE: The C515C is supported by Keil Software's C-compiler and their RTOS has a CAN API. A more economical DDS ANSI C subset compiler is also available as an alternative. There are C drivers for the onboard peripherals.

Overview


The MicroPac series of single board computers feature micro size with micro power consumption at a micro price. The MicroPac 515C has dimensions of 5.375" by 3.625" with a power requirement of 45 ma. typical and 80 ma. with the DUART upgrade option installed.

The MicroPac 515C single board computer utilizes the Infineon C515C microprocessor. EMAC integrated this powerful processor onto a board that can provide up to 32 digital I/O lines, 4 serial RS-232/485 ports, 128 K of Flash or ROM, 512 K of RAM, serial EEPROM, CAN interface, LCD interface, keypad interface, SPI compatible interface, 8 channels of A/D, and 4 channels of D/A.

The MicroPac 515C is ideally suited for controller applications requiring in-circuit Flash reprogramming, on-board graphic or character LCDs and/or keypad interface circuitry. It is also ideal for low cost data acquisition and control applications. The 8 channels of A/D allow the board to be connected to temperature sensors, pressure sensors, strain gauges, and LVDTs. Conditioned signals from these sensors can be used to make decisions in controlling motors, lights, heaters, etc.

Manuals
mp515c_rev0_hrd_r14.pdf
MicroPac 515C Rev 0 Hardware Manual rev 1.4.pdf
C515C Users Manual.pdf
Data Sheets

Specifications


Processor
CPU
Infineon C515C
Clock Speed
10 MHz
Memory
RAM
up to 512 KB RAM
Primary Flash
128K EEPROM
Primary IO
GPIO
19x TTL level bit prog. I/O
Video Out
LCD HD44780
Serial Ports
1x RS-232
Secondary IO
CAN
CAN 2.0 B
Timers/ Counters/ PWM
3x 16
Expansion
Bus Expansion
1x 50 pin
Analog
A/D Channels
8 Chan. 10 bit
D/A Channels
4 Chan. 8 bit

Mechanical and Environmental


Dimensions
Size
5.375" ×3.625" (136mm × 92mm)
Power Requirements
Voltage
7 V
Typical Voltage
7 V
Typical Current
80 mA
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature70 C (158 F)
Upper Operating Humidity
90%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
Stock
E515-01-10000 515C SBC, 1 RS232 & CAN (EOL 12/31/2019) Call
E515-01-10020 515C SBC, 3 RS232 & CAN (EOL 12/31/2019, Limited stock remain) $210.00
E515-01-10121 515C SBC, KEYPAD, D/A, HIDRIVE,1x RS422/485, 3x RS232 & CAN (EOL 12/31/2019, Limited stock remain) $340.00
Non-Stock
E515-01-10010 515C SBC, 1 RS422/485 & CAN (EOL 12/31/2019) Call
E515-01-10021 515C SBC, 4 RS232, KEYPAD & CAN (EOL 12/31/2019, Limited stock remain) Call
E515-01-10030 515C SBC, 1 RS422/485, 2 RS232 & CAN (EOL 12/31/2019) Call
E515-01-10040 515C SBC, 1 RS232, 2 RS422/485 & CAN (EOL 12/31/2019) Call
Build-to-order

EMAC can build the µPac 515C with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required.

Call for pricing

Peripheral Options


Product # Description Price
Peripherals
E515-21 128K FLASH BOOTLOADER FOR 32K/128K RAM SYSTEM $20.00
E515-18 PLCC ROM MONITOR/DEBUGGER WITH RAM BOOTLOADER $15.00
E515-17 BASIC 52 INTERPRETER IN PLCC ROM $30.00
E010-11 WALL TRANSFORMER 110V - 9 V 500 MA $10.00
E010-15 WALL TRANSFORMER 110V - 9 V 1 A $18.00
E010-10 WALL TRANSFORMER 110V - 12 V 800 MA $10.00
Keypads
E020-25 12 KEY MEM TELEPHONE STYLE KEYPAD $25.00
E020-21 16 KEY MEMBRANE HEX STYLE KEYPAD $30.00
Displays
E020-30 20 CHAR. X 2 Line LCD Display $49.00
E020-31 20 CHAR. X 2 Line LCD backlit display $65.00
E020-32 20 char. X 4 line LCD $74.00
E020-33 20 Char. X 4 line backlit LCD (EOL, LIMITED AVAILABILITY) Call
Power Supplies
E010-05 32K BY 8 BATTERY BACKED SOCKET (REQUIRES 32K RAM, 06-0723 OPTION) $24.00
E010-07 128K BY 8 BATTERY BACKED SOCKET (REQUIRES 128K RAM, 06-0724 OPTION) $29.00
E010-13 512K BY 8 BATTERY BACKED SOCKET (REQUIRES 512K RAM, 06-0725 OPTION) $32.00
Cables & Adapters
CAB-35-004-1 6" 10 PIN HEADER TO DB9 SERIAL ADAPTER CABLE $5.00
CAB-35-002-1 6" DB9 TO DB9 EXTENSION CABLE $10.00
Date/Time Clocks
E010-03 REAL TIME CLOCK/CALENDAR 32K BATTERY BACKED PROVISION (REQUIRES 32K RAM, 06-0723 OPTION) $39.00
E010-04 REAL TIME CLOCK/CALENDAR 128K BATTERY BACKED PROVISION (REQUIRES 128K RAM, 06-0724 OPTION) $50.00
E010-14 REAL TIME CLOCK/CALENDAR 512K BATTERY BACKED PROVISION (REQUIRES 512K RAM, 06-0725 OPTION) $39.00
Memory
06-0723 32K BY 8 STATIC RAM $10.00
06-0724 128K BY 8 STATIC RAM $15.00
06-0725 512K BY 8 STATIC RAM $35.00
06-90072 128K BY 8 BLANK PLCC FLASH $15.00
