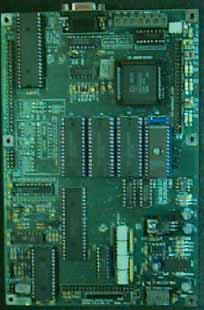

The EPAC 3000 is a high performance data acquisition and control computer based on Hitachi's HD64180 / Zilog Z180 processor. This high integration CMOS microprocessor features an enhanced Z80 instruction set that includes a fast multiply instruction, two 16 bit timers, a memory management unit that supports 1 MB abyte of memory and 64K bytes of I/O space, a DMA controller with memory to memory and memory to I/O transfer capability and a versatile interrupt controller that manages twelve interrupt sources. EMAC integrated this powerful processor onto a board that contains 36 digital I/O lines, 2 serial RS232 ports, an 8 bit A/D converter (13 bit optional), all CMOS construction and more with a board size of 5 1/4" by 8.0".

The EPAC 3000 was designed with the same key features (watchdog timer, machine sockets, single rail power supply with on board regulation, optically coupled digital inputs, transient protection for analog inputs and a separate analog ground) that give the EPAC series of single board computers their high degree of reliability. Reliability and Performance make the EPAC 3000 just as home on the Factory Floor as the Laboratory Bench. Future expansion is also provided for by the EPAC 3000 with the ENET network. ENET allows up to 32 EPAC single board computers to exchange information.

EMAC offers a total system solution to your application needs, with development software, peripheral boards, signal conditioning cards and more. The new Universal Expansion Interface gives the EPAC 3000 compatibility with virtually all the EPAC series accessory boards. So take the EPAC 3000 for a 30 day risk free test drive and just see what this single board computer can do for you!

FEATURES

CENTRAL PROCESSING UNIT: HD64180/Z180 with 6.144 MHz clock speed.
LOW POWER: All CMOS construction.
DIGITAL I/O: 8 optically coupled inputs, 8 high drive outputs, 20 programmable unbuffered lines terminated to a 50 pin I/O rack compatible header connector.
ANALOG I/O: 16 channel, 8 bit analog to digital converter, or optional 16 channel, 12 bit plus sign analog to digital converter with sample/hold.
MEMORY: Maximum system memory is 512K bytes, 128K RAM is furnished and 1K bit nonvolatile EEPROM.
COMMUNICATION: 2 RS232 serial ports with interrupt support.
TIMERS: 2, 16 bit timers with interrupt support and a watchdog timer.
POWER SUPPLY: Single Voltage supply operating from +8 to +15 Vdc. with on board regulation.
EXPANSIBILITY: 50 pin header connector for use with accessory boards.

SPECIFICATIONS

POWER REQUIRMENTS: Single Voltage supply operation from +8 Vdc to +15 Vdc (+12 Vdc recommended) with on board regulation. Maximum current draw is 150 ma., 130 ma typical.
OPERATING TEMPERATURE: 0 to 60 degrees centigrade, humidity range without condensation 0% to 90% RH.
DIGITAL I/O: 8 optically coupled inputs that require 7 to 14 ma. sink current depending on pullup Voltage selected. 8 open collector output drivers that can be pulled up to 5 Vdc, the supply, or left open. 20 programmable unbuffered I/O lines implemented using a PPI and terminated to a 50 pin I/O rack compatible header connector.
ANALOG INPUTS: 16 analog inputs (multiplexed) have a jumper selectable range select 0 to 5Vdc, 1 to 6 Vdc, and 0 to 10 Vdc. The 12 bit option provides the ranges of +1 to +6 Vdc, -10 to +10 Vdc, -5 to +5 Vdc, and -2.5 to +2.5 Vdc. Resolution is 8 bits with 12 bits plus sign (12 bits negative and 12 bits positive) optional. The conversion from analog to digital is 125 microseconds for the standard configuration and 35 microseconds for the 12 bit configuration. When switching analog channels an additional 5 microseconds is recommended. The A/D has interrupt support.
ANALOG OUTPUTS: The optional D/A converter has 4 independent channels with 8 bit resolution. D/A output ranges are jumper selectable, with available ranges of: 1 to 6 Vdc and 0 to 5 Vdc. A settling time of 1 microsecond is required for each channel.
COMMUNICATIONS: 2 serial channels with software selectable baud rates of 300 to 38400 baud are provided. Both channels are configured as standard RS232 ports one of which provides handshaking. An optional RS422/485 interface can replace one of the RS232 ports. Each serial channel has interrupt support.
TIMERS: 2 independent 16 bit reloadable timers clocked at 307.2 KHz (standard configuration) are provided. Each timer has interrupt support, with 1 timer output available externally.
MEMORY: Memory space for up to 128K of EPROM and up to 384K of RAM. Total physical memory space on board is 512K bytes. In addition to the EPROM/RAM memory is a 1K bit serial EEPROM. The EEPROM is a nonvolatile memory organized into 64, 16 bit words with 10,000 write cycles guaranteed and unlimited read cycles.
WATCHDOG TIMER: Watchdog timer when enabled, must be software accessed no less than once every second to prevent system reset.
EXTERNAL RESET: Optically coupled input pulled low (grounded) will reset the system.

OPTIONS

ON BOARD OPTIONS

CENTRAL PROCESSING UNIT: HD 64180 with 9.216 MHz clock speed.
ANALOG: 16 channel 12 bit plus sign analog to digital converter;
-4 channel, 8 bit digital to analog converter.
-High Voltage spike protection for analog inputs.
MEMORY: Up to 384K of battery backed RAM.
REAL TIME CLOCK: Battery backed real time clock/calendar.
COMMUNICATION: RS422/485 replacement of RS232 port.
RESIDENT SOFTWARE: BASIC and FORTH embedded development systems and networking

OTHER OPTIONS

Terminal Board
LCD Display Board
Programmable 32 Line Digital I/O Board
Signal Conditioning Cards
EPROM Programmer Board

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

**THIS PRODUCT IS NO LONGER AVAILABLE. CONSIDER USING: MICROPAC HC16 **

E301-01 ... EPAC 3000 COMPUTER AND MANUAL
(5 piece minimum order for this product)

200.00

ON-BOARD OPTIONS

SPEED

E301-22 ... 12.288 MHz SYSTEM

29.00

SOFTWARE

E301-08 ... E-FORTH SBC180 EPROM AND MANUAL	99.00
E301-07 ... MTBASIC 180 EPROM AND MANUAL	99.00

MANUALS

E301-10 ... EPAC 3000 HARDWARE MANUAL	24.00
E301-11 ... E-FORTH SBC180 SOFTWARE MANUAL	24.00
E301-09 ... MTBASIC 180 SOFTWARE MANUAL	24.00

ANALOG

E301-03 ... 12 BIT PLUS SIGN RESOLUTION A/D CONVERTER	34.00
E301-04 ... 4 CHANNEL, 8 BIT RESOLUTION D/A CONVERTER	59.00
E010-02 ... TRANSIENT SPIKE PROTECTION FOR A/D	19.00

TIME

E010-04 ... REAL TME CLOCK/calendar BATTERY BACKED

39.00

COMMUNICATION

E301-05 ... RS-422/485 FULL DUPLEX COM PORT

19.00

MEMORY

E010-07 ... 128K BY 8 BATTERY BACKED SOCKET

29.00

FLASH DISK

E010-09 ... 32K BY 8 BATTERY BACKED RAM MODULE	39.00
E010-12 ... 128K BY 8 BATTERY BACKED RAM MODULE	39.00

PERIPHERAL OPTIONS

KEYPAD

E020-25 ... 12 KEY MEM TELEPHONE STYLE KEYPAD	25.00
E020-21 ... 16 KEY MEMBRANE HEX STYLE KEYPAD	30.00

DISPLAY

E020-25 ... 20 CHAR. X 2 LINE LCD DISPLAY	49.00
E020-31 ... 20 CHAR. X 2 LINE LCD BACKLIT DISPLAY	65.00
E020-24 ... 240 X 128 BACKLIT GRAPHIC LCD DISPLAY	195.00

POWER SUPPLIES

E010-11 ... Wall Transformer 110 V - 9 V 500 mA	10.00
E010-15 ... Wall Transformer 110 V - 9 v 1 A	18.00
E010-10 ... Wall Transformer 110 V - 12 V 800 mA	10.00
