The VSX-6127 has a fully static 32-bit x86 processor and is PC compatible allowing it to run most popular 32-bit Operating Systems such as Windows CE and Linux as well as older Operating Systems such as DOS. The XGI Volari Z9 video chipset features 32 MB onboard video memory supporting Analog VGA monitors and TFT Flat panel LCDs and has a resolution of up to 1280x1024 @ 16M colors. In addition to video, three USB 2.0 ports are provided as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices) and seven RS-232 and one RS-232/422/485 serial port. The PCM-6127 can run at temperatures of -20 º C (-4º F) to 70º C (158º F). The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential. **Flash Disk not included.**
The VSX-6124 utilizes an onboard Vortex86SX Fanless 300MHz processor built for Ultra Low Power Consumption. The processor is highly integrated so that it reduces the price of any board utilizing this processor. The VSX-6124 is comes with a PC/104 bus connector and an optional PCI-104 / PC/104+ bus connector which allows it to utilize higher end PCI bus based modules. **Flash Disk not included.**
The MIO-5373 3.5” SBC w/ MIOe is powered by 8th Gen. Intel® Core i7/i5/ i3/Celeron processors. It offers low power features, high performance computing, and multimedia capabilities.
RISC/ARM SBCs
| Product # | CPU | Memory ROM/ RAM/ EEPROM | Serial Ports | Digital I/O | A/D | D/A | Dim. | Form | Other IO |
|---|---|---|---|---|---|---|---|---|---|
DEV-IIOTC |
Microcontroller Development Kit ST STM32F407IGH6 ARM Cortex-M4 | 192KB SRAM, up to 1MB of Flash | 4x Serial, 2x CAN 2.0B 2x USB OTG | 16x External Dedicated GPIOs (64x fully allocated) | 2.25" ×3.5" | Pico-ITX | Wireless: Wifi, Bluetooth, 64x GPIO(16x dedicated GPIO), 13x A/D 12-Bit Channels, 2x D/A 12-Bit Channels | ||
DEV-IOT6U |
Embedded Linux Development kit Freescale/NXP i.MX6 UltraLite Cortex A7 528Mhz Processor | 128 MB onboard DDR2 | 4x Serial, 3x USB 2.0, 1x USB OTG | 8x GPIO | 3" ×4.75" ×0.75" | pitx | Wifi 802.11 b/g/n, Bluetooth, 10/100 BaseT Ethernet, A/D, D/A, SPI, Audio In/Out, MikroBUS Expansion | ||

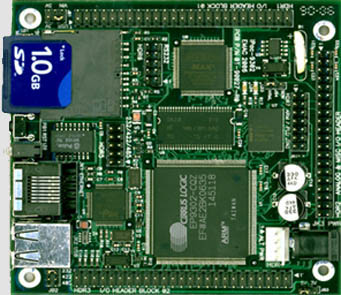

iPac-9302 |
Cirrus EP9302 ARM9 | Up to 32MB Flash, 64MB RAM, EEPROM 256 | 1x RS232, 1x RS-232/422/485 | 16x prog. 3.3V I/O lines, 16x PLD 3.3V in, 8x PLD 3.3V out, 8x PLD HDOC out | 5 Chan. 12 bit | none | 3.8" ×3.5" | iPac | 10/100 BaseT, Dual USB 2.0 Host Port, Battery Backed Clock |
IPAC-9X25 |
Embedded Atmel ARM9 AT91SAM9X25, 400 MHz | 128 MB of DDR RAM, 16MB of Serial Data Flash | 3x RS232. 1x RS232/422/485 | 20x General Purpose SAM9X25 Digital I/O lines, 16x SPI I/O Expander Based Digital I/O, and 8x High Drive Digital Outputs. ***Requires Qty 2 Terminal Boards to utilize all GPIO*** | 7 channel, 10-bit | none | 3.77" ×3.54" | PC/104 SBC sized module | 2x 10/100 BaseT Ethernet, Dual USB 2.0 Host Port, CAN Port, Battery Backed Clock |
IOT-F407C |
ST STM32F407IGH6 ARM Cortex-M4 | 192KB SRAM, up to 1MB of Flash | 4x Serial, 2x CAN 2.0B 2x USB OTG | 16x External Dedicated GPIOs (64x fully allocated) | 2.25" ×3.5" | Pico-ITX | Wireless: Wifi, Bluetooth, 64x GPIO(16x dedicated GPIO), 13x A/D 12-Bit Channels, 2x D/A 12-Bit Channels | ||
IOT-F407M |
STM32F407IGH6 ARM Cortex-M4 168 MHz | 192 KB of SRAM, Up to 1M of Flash | 4x Serial Ports, 2x CAN, 2x USB 2.0 FS OTG (1x Internal, 1x External) | 8x External Dedicated GPIOs (up to 64x fully allocated) | 13 | 2 | 4.38" ×6.05" | 3.5 Inch SBC | 1x 100 BaseT Ethernet (POE Optional), Wireless: Wifi, Bluetooth, Cell Modem, LoRa, 16x GPIO (8x External & 8x High Drive) |
GENE-1350 |
TI OMAP™ 3503/3530 600 MHz | Onboard 128/256 MB (Optional) LP DDR RAM | 1x RS-232, 1x RS-232/422/485 (auto flow), 1x TTL UART | 8-bit GPIO | 5.75" ×4" | 3.5 SBC | 8-bit GPIO, 2x USB 2.0 Host, 1x USB 2.0 Client | ||
VAB-600 |
WonderMedia WM8950 Cortex-A9 SoC, 800 MHz | 1GB DDR3 SDRAM Onboard | 2x RS232 COM, 3x USB 2 | 8 GPIO (4 GPI +4 GPO) | 3.9" ×2.8" | 2.5 P-ITX | 10/100 Ethernet, 8x GPIO, Audio, SIM card slot, Touch screen, Android | ||
RSB-4410 |
Freescale® i.MX6 Dual or Quad ARM® Cortex™ A9 CPU | Up to 1GB DDR3 Memory, 4GB eMMC flash | 3x RS232, 3x USB 2.0 ports | N/A | N/A | N/A | 5.75" ×4.02" ×0.78" | 3.5 SBC | Gigabit LAN |
RSB-4220 |
TI Sitara AM3352 Cortex A8 1.0GHz | 512MB DDR3, 4GB eMMC flash | 5x COM, 1x USB 2.0 Host/OTG, 1x CAN | 4x GPI & 4x GPO with isolation | N/A | N/A | 5.75" ×4.02" | 3.5 Inch SBC | 2x Gigabit LAN, 8x GPIO |
RICO-3288 |
Rockchip RK3288 Quad Core | 2GB DDR3L Onboard | 2x COM, 3x USB 2.o, 2x USB OTG | 8x GPIO (4x in & 4x Out) | 3.94" ×2.84" | 2.5 P-ITX | 1x GbE LAN, 8x GPIO(4x in & 4x Out) | ||
uPAC-515 |
Infineon C515C (8051) 8-Bit | Up to 128K ROM, 512K RAM, 1K EEPROM, 2K Internal RAM | 1x RS-232, CAN 2.0 B | 19x TTL level bit prog. I/O | 8 Chan. 10 bit | 4 Chan. 8 bit | 5.375" ×3.625" | uPac | Clock, Backlit LCD Interface, 20 Key Keypad Interface, Battey Backed Ram |
uPAC-HC16 |
Freescale 68HC16-Z1 (DSP) 16-BIt | Up to 512K ROM, 1M RAM, 512 EEPROM | 1x RS-232 | 8x prog. I/O 4x in/4x out | 8 Chan. 10 bit | 8 Chan. 8 bit | 5.35" ×3.66" | uPac | Clock, Backlit LCD Interface, 16 Key Keypad Interface, Battey Backed Ram |
