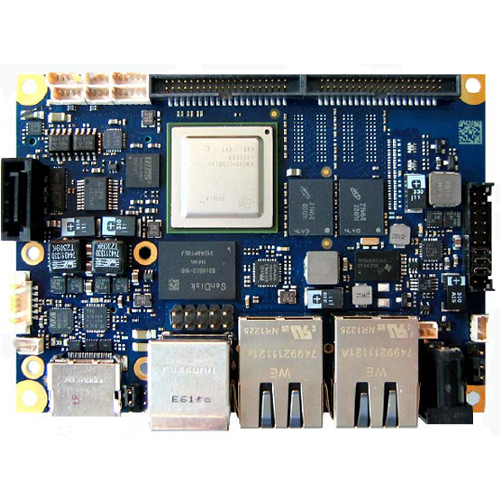

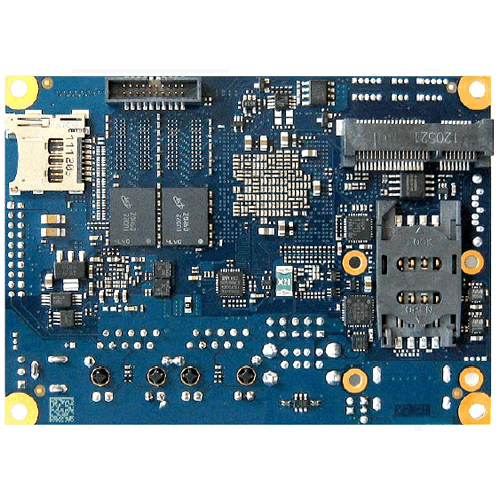

SBC-0300


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

Each SBC-0300 is a member of the 2.5" SBC family of KONTRON Technology A/S based on the Pico-ITXTM specification (only mechanical outer dimensions) from the Small Form Factor Special Interest Group (SFF-SIG). SBC-0300 embedded line modules are characterized by the same front-line pinouts and interfaces for reset logic and simple power supply, 2 x USB, LAN, Audio, GPIOs, DVI® or HDMI® and LVDS interface. These embedded line family features allow the user to use the same chassis over the whole product line and maximize design reuse. These homogeneous features facilitate easy upgrades within the SBC-0300 embedded line product family.

Features


  • ARM® CortexTM-A8 TI® AM3874 SitaraTM Up to 800 MHz
  • Up to 2GB Dual 32-bit DDR3-800 On-board
  • 2x RS232, 1x RS232/485 Serial Ports
  • 5x USB 2.0 Ports
  • 2x Dual 10/100/1000 Mb/s with optional switch (only 10/100 Mb/s)
  • LVDS/HDMI
  • LVDS dual channel 18/24-bit (Max. 1920x1080 pixel)
  • HDMI® 1.3a compliant transmitter up to 162 MHz (max. 1920x1080 pixel)
  • 1x SATA 2.0 / 1x mSATA shared with mPCIe
  • mPCIe slot with SIM card support & micro SD slot
  • 2x CAN Bus
  • 26x GPIOs
  • SPI, I2C
  • Pico-ITX, P-ITX or 2.5" SBC form factor
  • Analog Interface (Line-In, line-out, Mic-In), 1 W Speaker interface
  • Power Requirement: 5V DC
  • Operating Temperature: -40°C to +85°C (E2)
  • 100 x 72 mm

Overview


Each SBC-0300 is a member of the 2.5" SBC family of KONTRON Technology A/S based on the Pico-ITXTM specification (only mechanical outer dimensions) from the Small Form Factor Special Interest Group (SFF-SIG). SBC-0300 embedded line modules are characterized by the same front-line pinouts and interfaces for reset logic and simple power supply, 2 x USB, LAN, Audio, GPIOs, DVI® or HDMI® and LVDS interface. These embedded line family features allow the user to use the same chassis over the whole product line and maximize design reuse. These homogeneous features facilitate easy upgrades within the SBC-0300 embedded line product family.

Manuals
ktd-s0051-d_ktam3874-pitx_usersguide.pdf
Data Sheets
datasheet-ktam3874-pitx.pdf

Specifications


Processor
CPU
ARM® CortexTM-A8 TI® AM3874 SitaraTM Up to 800 MHz
Clock Speed
800 MHz
Memory
RAM
1GB Dual 32-bit DDR3-800 On-board (Up to 2 GB optional)
Primary IO
GPIO
26x GPIOs
SDIO
SPI, I2C
Disk Interface
1x SATA 2.0, 1x mSATA shared with mPCIe
Audio
Analog Interface (Line-In
Video Out
LVDS/HDMI
Ethernet
2x Dual 10/100/1000 Mb/s with optional switch (only 10/100 Mb/s possible)
USB
5x USB 2.0 Ports
Serial Ports
2x RS232, 1x RS232/485
Secondary IO
CAN
2x CAN Bus
Secondary I/O Misc.

Onboard SIM-card Slot for mPCIe Modem Cards

Display
Chipset
TI® AM3874 SitaraTM
Resolution
Maximum of 1920x1080 pixel
LVDS Interface
LVDS dual channel 18/24-bit (Max. 1920x1080 pixel)
HDMI/DVI Interface
HDMI® 1.3a compliant transmitter up to 162 MHz (max. 1920x1080 pixel)
Expansion
Bus Expansion
mPCIe slot with SIM card support & micro SD slot

Mechanical and Environmental


Dimensions
Size
100" ×72" ×26" (2540mm × 1828mm × 660mm)
Power Requirements
Voltage
5 V
Environmental
Low Operating Temperature-40 C (-40 F)
High Operating Temperature85 C (185 F)
Upper Operating Humidity
90%
Environmental Misc.
10% to 90% (non condensing)
Related Products

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SBC-03005-090-R Pico-ITX, KTAM3874-IT, TI3874, 3xCOM, 5xUSB2, 2xLAN, 2xCAN, Audio, Dual LVDS (-40-85C) $270.00

Peripheral Options


Product # Description Price
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
