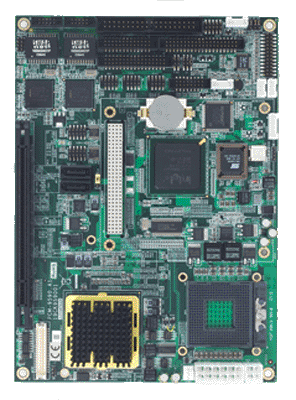

PCM-9590


  • Embedded Intel® Core Duo Fanless Processo, Up to 2.2 GHz
  • Up to 2GB DDR SODIMM Memory
  • PC-104, Mini PCI, PCI-E X 16 Expansion
  • 6x USB 2.0, 2x Ethernet, 2x SATAII, 4x Serial Ports

Receive consultation or quotes about this product from our sales staff.

Request a quote
The PCM-9590 is an EBX Single Board Computer available with a embedded Intel Core Duo CPU on board or a socket 479 version excepting a Core 2 Duo processor. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics processor. **Flash Disk, Memory and Hard Disk not included.**

Features


  • Embedded Intel® Core Duo Fanless Processor
  • Up to 2 GB DDR2 SODIMM
  • EBX form factor standard with support for PCI-104
  • Mini-PCI and PCI-Express expansion
  • Dual 10/100/1000Base-T Ethernet
  • 6 USB 2.0 Ports
  • 4 Serial Ports
  • 2 channel 36-bit LVDS interface with Dual Independent display

Overview


The PCM-9590 is an EBX Single Board Computer available with a embedded Intel Core Duo CPU on board or a socket 479 version excepting a Core 2 Duo processor. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics processor.

The PCM-9590's design is based on the EBX form factor and provides support for PCI-104, Mini PCI interface, and one PCI-E X 16 slot. The EBX form factor also provides convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 8" x 5.75") offers all the functions of a rack type industrial computer, but still fits in the space of a CD-ROM drive.

The PCM-9590, in conjunction with Intel 945 GME and ICH7M chipsets, supports processors clocked up to 2.2 GHz, has six USB 2.0 compatible ports, two Gig Ethernet ports, two SATAII (300 MB/s) and four COM ports. In addition, this SBC provides 2 channel, 36-bit LVDS supporting dual independent display (36-bit LVDS + VGA) and can accommodate up to 2GB of DDR2 SODIMM RAM memory (support FSB 533/667 MHz).

**Flash Disk, Memory and Hard Disk not included.**
Manuals
pcm-9590.pdf

Specifications


Processor
CPU
Onboard Core Duo 1.2 GHz/uFCPGA2 (479 pin) Socket
Clock Speed
1.66 GHz
Processor Misc.
  • Second Cache: Depends on CPU from 512 KB to 4 MB
  • Chipset: Intel 945 GM GMCH/ICH7M Chipset
Memory
RAM
Two 200-pin SODIMM sockets Double Data Rate (DDR2) 128 MB to 2 GB
BIOS/ Bootloader
AWARD® 4Mbit Flash BIOS
Primary IO
GPIO
1x 16 General Purpose I/O
Disk Interface
1x EIDE (UDMA 100) supporting 2 IDE devices
Audio
Realtek ALC888 HD codec with AC97 Line-in/Line-out/Mic-in
Video Out
Intel 945G Dual Display CRT/LCD up to 32 MB shared
Ethernet
2x Intel 82573L 10/100/1000Base-T with IEEE 802.3u/EEE802.3ab interface
USB
6x USB 2.0
Serial Ports
3x RS-232, 1x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • Serial ATA: 2x SATA 300



Secondary IO
Display
Chipset
Intel 945 GM chip integrated (Inter Gen 3.5 integrated graphic engine)
CRT-VGA Interface
pixel resolution up to QXGA (2048 x 1536)
Multi-Display
CRT + LVDS
Expansion
Bus
1x PCI
Misc
Operating Systems
EMAC OE Linux, XP Embedded (XPE) / WES09, MS-DOS 6.22 / ROM-DOS 6.22

Mechanical and Environmental


Dimensions
Size
5.75" ×8" (146mm × 203mm)
Weight
345 g (0 lbs)
Power Requirements
Power Misc.
  • Power Management: APM1.2, ACPI support
  • Voltage requirement with ATX Power:
    • +5 V DC +/- 5%
    • +5 V DC Standby +/- 5%
    • +12 V DC (For PCI Card, FAN power, and LVDS inverter power, CPU core power)
  • Voltage requirement with AT Power:
    • +5 V DC +/- 5%+12
    • V DC (For PCI Card, FAN power, and LVDS inverter power, CPU core power)
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9590FG-00 SKT 479 W/ DUAL GIG LAN/Single LVDS $426.00
PCM-9590FG-S2 DUAL CORE 1.2GHZ W/ DUAL GIG LAN/LVDS $945.00
PCM-9590FG-S6 DUAL CORE 1.66GHZ W/ DUAL GIG LAN/LVDS $957.00

Peripheral Options


Product # Description Price
Wiring Kits
PCM-10586-9590E Wiring Kit for the PCM-9590 $55.00
Operating Systems
SL040-XON-00010 EMAC OE Linux 4.0 for x86 Free
SL013-AMN-00060 Xenomai Real-Time Extensions (one-time charge) Call
SX300-000-0000D Windows EMB STD 2009(WES09) & License $125.00
SD622-000-0010 MS-DOS 6.22 - MSDOS 6.22 LICENSE MS-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $37.00
SD622-000-0005 ROM DOS 6.22 - ROM DOS 6.22 LICENSE ROM-DOS IS GUARANTEED BY DATALIGHT TO BE 100% COMPATIBLE WITH MS-DOS 6.22 ROM-DOS LICENSES SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA $35.00
SC600-000-0010D Windows CE 6.0 Pro License $25.00
