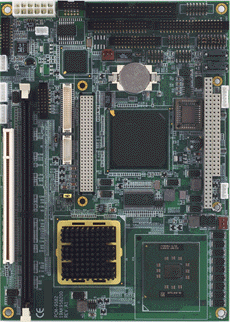

PCM-9587


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The PCM-9587 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 852GM chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

Features


  • Embedded Intel® Fanless Celeron® M 600 MHz
  • ECC DDR Memory
  • EBX form factor standard and support for PC/104-Plus
  • 10/100Base-T Ethernet
  • 4 ports Host USB 2.0
  • 2 channel 48-bit LVDS interface

Overview


The PCM-9587 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 852GM chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCM-9587's design is based on the EBX form factor and provides support for PCI-104+ module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 8" x 5.75") offers all the functions of a single board industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an Ethernet port, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports UDMA/100 bus master modes and 2 Serial ATA (SATA) 150 interfaces.

Specifications


Processor
CPU
Embedded Intel Fanless Celeron M
Clock Speed
600 MHz
Processor Misc.

Chipset: Intel 852GM GMCH/6300ESB

Memory
RAM
1x 184-pin DIMM socktes supports ECC DDR up to 1GB
Secondary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 512 KB Flash BIOS
Primary IO
GPIO
8x GPIO
Disk Interface
FDD, 1x EIDE (Ultra DMA 100)
Audio
AC97 2.0 with mic-In/line-in/line-out support
Ethernet
Intel 82551ER 10/100 Base-T with IEEE 802.3u interface
USB
4x USB 1.1/2.0 compliant
Serial Ports
3x RS-232, 1x RS-232/422/485, 2x Channels of SATA 150
Primary I/O Misc.

Parallel Port: 1 Parallel Port supports SPP/EPP/ECP mode

Secondary IO
PS/2
Yes
Expansion
Bus Expansion
1x PC/104+, 1x PCI, 1x Mini PCI

Mechanical and Environmental


Dimensions
Size
5.7" ×8" (144mm × 203mm)
Weight
0.85 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
2 A
Max Boot Current
2.63 A
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9587F-M Celeron M 600 SBC W/Audio,VGA,LCD,CFC,LAN Call
