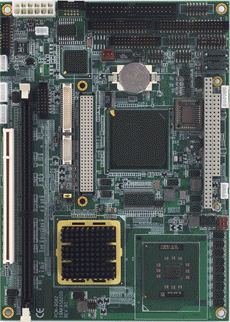

PCM-9582

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The PCM-9582 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

Features

  • Embedded Intel® Pentium® M 1.1 GHz/Celeron® M 600 MHz
  • ECC DDR Memory
  • EBX form factor standard and PC/104-Plus
  • 1000Base-T Ethernet
  • 4 x ports Host USB 2.0
  • 2 channel 48-bit LVDS interface
  • Enhanced Intel® Speedstep Technology

Overview

The PCM-9582 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCM-9582's design is based on the EBX form factor and provides support for PCI-104+ module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 8" x 5.75") offers all the functions of a single board industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an Ethernet port, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports UDMA/100 bus master modes and 2 Serial ATA (SATA) 150 interfaces.

Specifications

Processor
CPU
Embedded Intel Pentium M
Processor Misc.

Chipset: Intel 855GME GMCH/6300ESB Chipset
Memory
RAM
1GB 184 pin DIMM socket support ECC DDR 200/266/333 DRAM
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 512 KB Flash BIOS
Memory Misc.

L2 Cache: 512 KB to 2 MB depending on CPU
Primary IO
GPIO
8x GPIO
Disk Interface
1x FDD, 1x EIDE
Audio
AC97 6300ESB (Speaker-out/CD-in/Line-in/Line-out)
Ethernet
Intel® 82551ER 10/100 Base-T IEEE 802.3u
USB
4x USB 1.1/2.0 compliant
Serial Ports
1x Parallel SPP/EPP/ECP, 3x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • Serial ATA: 2 Channels of SATA 150
  • Optional Ethernet : Intel® Gigabit 82541GI EEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible

Display

  • Chipset: Intel 855GME chip integrated. (Extreme Graphics 2)
  • Memory Size: Optimized Shared Memory Architecture, supports up to 64 MB frame buffer using system memory
  • Resolution
    • CRT Mode: pixel resolution up to 1600 x 1200 at 85-Hz
    • LCD Mode: channel LVDS panel supports up to UXGA panel resolution
  • LVDS: Supports 2 Channel 48-bit (2 x 24-bit) LVDS
  • TV-Out: Supports NTSC/PAL, S-Video and Composite Video (requires optional cable)
  • Interface: Dual Independent CRT+LVDS; DVI/TV-Out +LVDS; CRT+DV


Secondary IO
PS/2
Yes
Display
Chipset
Intel 855GME chip integrated. (Extreme Graphics 2)
Resolution
CRT Mode: pixel resolution up to 1600 x 1200 at 85-Hz
LVDS Interface
Supports 2 Channel 48-bit (2 x 24-bit) LVDS
Expansion
Bus Expansion
1x PC/104+, 1x PCI, 1x Mini PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility
  • Wind River VxWorks
  • QNX Neutrino RTOS

Mechanical and Environmental

Dimensions
Size
5.7" ×8" (144mm × 203mm)
Weight
0.85 kg
Power Requirements
Voltage
5 V
Power Misc.
  • Power Management: APM 1.2, ACPI support
  • (Celeron M 600 with 256 MB DDR266)
    • Max(HCT): 5 V @ 2.63A, 12 V @ 0.04A
    • Typical: 5 V @ 2.1A, 12 V @ 0.03A
  • (Pentium M 1.1 G with 256 MB DDR266 )
    • Max (HCT): 5 V @ 3.1A, 12 V @ 0.15A
    • Typical: 5 V @ 2.3A, 12 V @ 0.13 A
  • (Pentium M 1.6G with 1.6 GHz with 256 MB)
    • Max (HCT): 5 V @ 4.8A, 12 V @ 0.15A
    • Typical: 5 V @ 2.54A, 12 V @ 0.14A


Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
