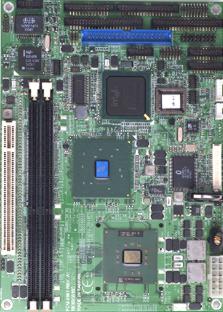

PCM-9581

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

PCM-9581 is centered on a powerful Intel® Pentium® M or Celeron® M processor with Award® BIOS that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME and ICH4 I/O chipset. These chipsets are specifically for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to preserve battery life.

Features

  • Embedded Celeron 600 MHz or Pentium® M @ 1.1 GHz, 1.6 GHz optional
  • Lower Cost Socketed SKt479w/855GME version available
  • Fanless Celeron Operation
  • High Performance, Low Power
  • Supports Gigabit Ethernet (PCM-9581FG)
  • Supports Embedded USB, 4 USB 2.0 ports
  • Supports up to 36-bit LVDS interface
  • Support ECC DDR Memory
  • AC97 3D surround stereo sound

Overview

PCM-9581 is centered on a powerful Intel® Pentium® M or Celeron® M processor with Award® BIOS that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME and ICH4 I/O chipset. These chipsets are specifically for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to preserve battery life.

The PCM-9581's design is based on the EBX form factor and provides support for PCI module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 5.75" x 8") offers all the functions of a single board industrial computer, but still fits in the space of a 5.25" CD-ROM drive.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an optional floppy drive controller, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports both PIO and UDMA/100 bus master modes. Up to four IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives.

Highly Integrated Multimedia SBC

The PCM-9581 is a highly integrated multimedia SBC that combines audio, video, and network functions on a single computer board the size of a 5.25" CD-ROM drive. It provides an AC-97 interface and supports Line-in, Line-out, and MIC-in via optional PCM-232 audio module, and up to 2048 x 1536 resolution. The PCM-9581 also supports optional TV-out for NTSC/PAL multimedia applications.

Specifications

Processor
CPU
Embedded Intel Pentium M Processor
Clock Speed
1.1 GHz
Processor Misc.
  • Optional Processor : Embedded Intel Pentium M Processor 1.6 GHz w/64KB primary cache memory
  • L2 Cache: 1 MB on Pentium M processor
  • Chipset: System Chipset Intel 855GME GMCH/ICH4 Chipset 400MHz FSB
Memory
RAM
Up to 2GB 2x 184 pin DIMM socket support ECC DDR
Primary Flash
CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 512 KB Flash BIOS
Primary IO
GPIO
8x GPIO
Disk Interface
FDD, 1x EIDE (Ultra DMA 100)
Audio
ICH4 AC97 3D Line-in/Line-out/Mic-in
USB
4x USB 1.1/2.0 compliant
Serial Ports
3x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • IrDA: 115 Kbps,IrDA 1.1 Compliant
  • Parallel Port: 1 Parallel Port supports SPP/EPP/ECP mode

Ethernet

  • Chipset:
    • Intel® 82551ER 10/100 Base-T (PCM-9581F)
    • Optional Intel® Gigabit 82551QM/82540EM (PCM-9581FG)
  • Interface:
    • IEEE 802.3u 100 BASE-T Fast Ethernet comatible (PCM-9581F)
    • IEEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible (PCM-9581FG)

Display

  • Chipset: Intel 855GME,Supports a single 1.5 V Accelerated Graphics Port Interface
  • Memory Size: Optimized Shared Memory Architecture,supports 1MB/8 MB frame buffer using system memory
  • Resolution
    • CRT Mode: pixel resolution up to 1600 x 1200 at 85-Hz and 2048 x 1536 at 75-Hz
    • LCD Mode: Dual channel LVDS panel support up to UXGA panel resolution with frequency range from 25 MHz to 112 MHz
  • LVDS: Supports 2 Channel 36-bit (optionally up to 48-bit) LVDS interface
  • TV-Out: Supports both NTSC/PAL, S-video and Composite Video (requires optional cable)
Secondary IO
Display
Chipset
Intel 855GME Supports a single 1.5 V Accelerated Graphics Port Interface
Resolution
CRT Mode: pixel resolution up to 1600 x 1200 at 85-Hz and 2048 x 1536 at 75-Hz
LVDS Interface
Supports 2 Channel 36-bit (optionally up to 48-bit) LVDS interface
Expansion
Bus Expansion
1x PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental

Dimensions
Size
5.7" ×8" (144mm × 203mm)
Weight
0.85 oz
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
3.8 mA
Power Misc.
  • Power Supply Voltage: ATX,with Vcore 2 phase, +5 V power only can work
  • Battery: Lithium 3 V/196 mAH
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
Related Products
PCM-9562

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9581F-0 SKT479W/855GME SBC W/ VGA/ LCD/ LVDS/ LAN/ USB 2.0/ Audio Call
PCM-9581F-M Embedded Celeron 600MHZ 855GME SBC W/ VGA/ LCD/ LVDS/ LAN/ USB 2.0/ Audio Call
PCM-9581F-S4 LV Pentium M SBC W/ 1.4G CPU VGA/ LVDS/ LAN/ USB 2.0/ Audio Call
PCM-9581FG-0 SKT479W/855GME SBC W/ VGA/ LCD/ LVDS/ GIG LAN/ USB 2.0/ Audio Call

Peripheral Options

Product # Description Price
Peripherals
PCM-10586-61 Wiring kit for PCM-9581F $48.00
PCM-10586-6A Wiring kit for PCM-9581FG $48.00
Displays
1703050306 TV-OUT cable $10.00
Cables & Adapters
CAB-40-001-1 USB 2 port cable w/ mounting bracket $11.00
