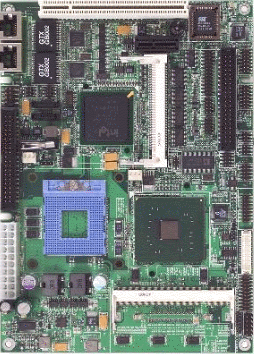

PCM-9150


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The PCM-9150 is EMAC'S latest low power consumption solution featuring Intel® innovation. It adopts Intel's® latest chipset -  the Mobile Intel ® 915GM Express Chipset, which has been validated with Intel® Pentium® M CPUs and the new PCI-Express interface. Therefore the PCM-9150's peripheral transmission speed has been greatly enhanced, especially on multi-port Gigabit LAN applications. For these kinds of applications, PCM-9150 has 2 Gigabit LAN ports onboard to satisfy high traffic firewall and small data server demands.
The Great Performance on Multimedia Applications

Features


  • Intel® Pentium® M or Celeron® M Series Processors
  • 36/18-bit LVDS TFT Panels
  • Two DDRII 400/533 SODIMM Modules Up to 2GB
  • Dual PCI-Express Gigabit LAN
  • 5.1 CH AC-97 2.3 Codec with S/P DIF Function
  • One Mini PCI Socket and PCI Slot For Expansion
  • 4 USB 2.0 and 4 COMs
  • GPIO Digital I/O

Overview


The PCM-9150 is EMAC'S latest low power consumption solution featuring Intel® innovation. It adopts Intel's® latest chipset -  the Mobile Intel ® 915GM Express Chipset, which has been validated with Intel® Pentium® M CPUs and the new PCI-Express interface. Therefore the PCM-9150's peripheral transmission speed has been greatly enhanced, especially on multi-port Gigabit LAN applications. For these kinds of applications, PCM-9150 has 2 Gigabit LAN ports onboard to satisfy high traffic firewall and small data server demands.
The Great Performance on Multimedia Applications

For multimedia applications, the Mobile Intel ® 915GM Express Chipset has the Intel® Graphics media Accelerator (GMA900) function built into the chipset. The high-end graphic capability of the PCM-9150 is ideal for KIOSK, Advertisement, Gaming and Information display applications.
Versatile Dual-View Combinations

Besides LCD support, PCM-9150 also allows developers to show different content on CRT, LCD, DVI or TV at the same time. It meets dual view demands as the most cost-effective display solution.
A Wide Range of Expansion Interfaces

PCM-9150 promises you off-the-shelf expansion possibilities with versatile expansion interfaces-Mini PCI, PCI, and PCI-Express x1. By adopting versatile Mini PCI modules, you can extend your onboard features such as adding a third LAN port, eight COM port, or a IEEE 1394 port. This is in addition to the on-board PCI slot.

Specifications


Processor
CPU
479 Intel Celeron/Pentium M
Clock Speed
2.13 GHz
Processor Misc.
  • Chipset: Intel® 915GM + ICH6M
Memory
RAM
Up to 2GB 2x DDRII SODIMM
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
Award Plug & Play BIOS - 512KB ROM
Primary IO
GPIO
8x GPIO
Disk Interface
1x FDD, 1x EIDE (Ultra DMA 100)
Audio
5.1 CH AC97 2.3 (Mic-in/Line-in/Line-out/CD-in)
Ethernet
IEEE 802.3z/ab 1000 Base-T Gigabit Ethernet compatible Marvell 88E8053
USB
4x USB 1.1/2.0 compliant
Serial Ports
3x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • I/O Chipset: ITE8712 + Fintek F81216D
  • IR port: One IrDA tx/rx header
  • Serial ATA: 2 Channels of SATA 150
  • Parallel Port: 1 Parallel Port supports SPP/EPP/ECP mode

SVGA / Flat Panel Interface

  • Video Chipset: Intel® 915GM + Chrontel 7307C
  • Display memory: Shared system memory up to 128MB with DVMT
  • Display type: VGA, LVDS
  • Resolution:
    • CRT Modes: up to 1600 x 1200 @ 36bpp colors
    • LCD/LVDS Modes: up to 1280 x 1024 @ 24bpp colors
  • TV-out: Supports NTSC and PAL standard, S-Terminal and Composite Video
Secondary IO
PS/2
Yes
Display
Display Type
VGA/LVDS
Chipset
Intel® 915GM + Chrontel 7307C
Expansion
Bus Expansion
1x Mini PCI, 1x PCI, 1x PCI-Express
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility
  • Wind River VxWorks
  • QNX Neutrino RTOS
  • RTAI Real-Time Linux

Mechanical and Environmental


Dimensions
Size
8" ×5.75" (203mm × 146mm)
Weight
0.5 kg
Power Requirements
Voltage
5 V
Power Misc.

Power Management: APM 1.2, ACPI support

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-9150-0 Socket 479 Pentium-M/Celeron-M SBC W/GIG LAN Call

Peripheral Options


Product # Description Price
Wiring Kits
PCM-A008 Installation Wiring Kit Call
