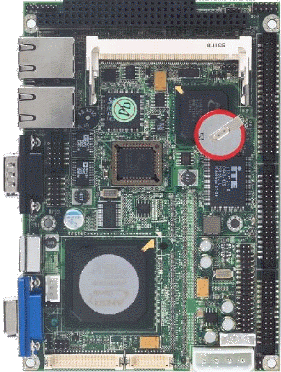

PCM-5536


This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The CPU is EOL for this product, please see this article for more information.

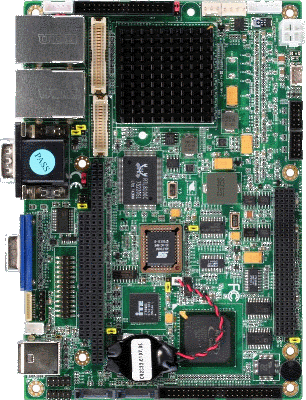

The PCM-5536 is an EPIC form factor embedded CPU board for industrial computing. The EPIC standard defines a 4.53" x 6.50" footprint, which sits between the smaller PC/104 and the larger EBX form factor. ** Flash Disk and Memory not included.**

Features


  • Embedded AMD Geode™ LX 800 Processor
  • EPIC form factor
  • PC/104+ (PC/104 + PCI-104) bus expansion
  • SODIMM socket supports up to 1 GB DDR SDRAM
  • CRT + LVDS dual independent display support
  • 24-bit TTL/LVDS LCD
  • Supports 5 COM and 4 USB 2.0 ports
  • 10/100Base-TX Ethernet x 2 (Optional Gigabit LAN x 1)
  • 8-bit Digital I/O
  • SATA I with RAID 0, 1
  • Supports CompactFlash

Overview


The PCM-5536 is an EPIC form factor embedded CPU board for industrial computing. The EPIC standard defines a 4.53" x 6.50" footprint, which sits between the smaller PC/104 and the larger EBX form factor.

The PCM-5536 accommodates onboard AMD Geode LX800/900 (500/600MHz) processor or optional LX700 processor. This model features 200-pin DDR SODIMM and system memory is up to 1GB for DDR 333 or 512MB for DR400.

The PCM-5536 deploys Realtek 8100C 10/100Base-TX chip that features two RJ-45 ports or optional RTL 8110S Gigabit LAN to display the transcendent performance of network connections. This new EPIC Board configures an AMD Geode LX and TI SN75 LVDS 83 chipset to support CRT/LCD simultaneous display.

In addition, the PCM-5536 deploys the PC/104+ that is PC/104 and PCI-104 expansions. Also the PCM-5536 features one EIDE, two SATA I, one Type II CompactFlash for the storage, four USB 2.0 ports, five COM ports, 8-bit Digital I/O for flexible I/O expansions.



**Flash Disk and Memory not included.**

Manuals
pcm-5536.pdf
Data Sheets
EPIC-5536.pdf

Specifications


Processor
CPU
AMD Geode LX800
Clock Speed
500 MHz
Processor Misc.

Chipset: AMD LX series + CS5536

Memory
RAM
Up to 1GB DDR333 or 512MB DR400
Primary Flash
1x CompactFlash™ card Type II
BIOS/ Bootloader
AWARD Plug & Play FWH BIOS - 1 Mb ROM
Primary IO
Disk Interface
1x EIDE (UDMA 100) supporting 2x IDE devices
Audio
AC97 2.0 with line-in/line-out support
Video Out
AMD LX + TI SN 75 LVDS 83 CRT/LCD up to 254 MB shared
Ethernet
Realtek 8100C 10/100Base-TX
USB
4x USB 2.0
Serial Ports
3x RS-232, 1x TTL only/GPS, 1x RS-232/422/485, 1x Parallel SPP/EPP/ECP
Primary I/O Misc.
  • I/O Chipset: ITE IT 8712 + Fintek F81216DG
  • Sata Interface: SATA I x 2
  • FDD: 1x Floppy Disk Drive
  • Digital I/O: Supports 8-bit (Programmable)
  • Optional Etherent: RTL 8110S Gigabit LAN
Secondary IO
PS/2
Yes
Display
Chipset
AMD Geode™ LX + TI SN 75 LVDS 83
Resolution
pixel resolution up to 1920 x 1440 @ 24-bit
LVDS Interface
Supports 1 Channel 24-bit LVDS
Multi-Display
CRT+LVDS
Expansion
Bus Expansion
1x PC/104+
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS

Mechanical and Environmental


Dimensions
Size
4.5" ×6.5" (114mm × 165mm)
Weight
500 g (1 lbs)
Power Requirements
Voltage
12 V
Power Misc.

Power Type: AT/ATX

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Upper Operating Humidity
90%
