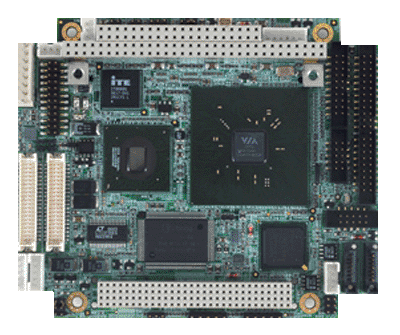

PCM-3372

This product is End-of-Life. Please contact our Sales Department for the recommended replacement or consider.

The PCM-3372 utilizes an onboard Intel Ultra-Low Voltage Fanless VIA Eden V4 400/600 MHz, which makes the PCM-3372 one of the smallest and most powerful SBCs on the market. The PCM-3372 gives developers a low power, high performing and scalable platform that can fit into the tightest places. PC/104+ I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 or PC/104+ expansion modules. The PCM-3372 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

Features

  • Intel Ultra Low Voltage Embedded VIA Eden Fanless Processor
  • Processor Speed Options from 400 Mhz to 1 GHz
  • 200-pin DDR SO-DIMM up to 1GB DDR2 SDRAM
  • Support Dual Indpendent Display (CRT, LVDS and TTL LCD)
  • Intel 82551ER 10/100 Base-T Ethernet
  • Both IDE and SATA Interfaces
  • 6 x USB Ports
  • 2 x Serial Ports
  • Compact Flash Socket
  • Supports PC/104 and PC/104+ Interface

Overview

The PCM-3372 utilizes an onboard Intel Ultra-Low Voltage Fanless VIA Eden V4 400/600 MHz, which makes the PCM-3372 one of the smallest and most powerful SBCs on the market. The PCM-3372 gives developers a low power, high performing and scalable platform that can fit into the tightest places. PC/104+ I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 or PC/104+ expansion modules. The PCM-3372 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The PCM-3372 provides the quality features available on SBC boards several times its size. The VIA CX700 graphic chipset has excellent graphics performance and provides flat panel support using digital dual independent displays with CRT and LVDS interfaces. SDRAM memory capacity up to 1GB is large enough to accommodate the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, Windows Vista and DOS 6.22. Six USB 2.0 ports are available as well as 2 serial ports (RS-232 & RS-232/422/485). With its industrial grade reliability, the PCM-3372 can operate continuously at temperatures up to 140º F (60º C) without a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

Specifications

Processor
CPU
Embedded VIA Eden
Clock Speed
400 MHz
Processor Misc.
  • Optional Processor: Embedded VIA Eden 600 MHz/ Ultra Low Voltage 1.0 GHz
  • L2 Cache: 128 KB
  • Chipset: VIA CX700
Memory
RAM
1GB 1x 200-pin SODIMM DDR2
BIOS/ Bootloader
AWARD 4 Mbit Flash BIOS
Primary IO
GPIO
4x inputs, 4x outputs
Disk Interface
1x EIDE
Audio
HD Audio Stereo
Ethernet
10/100 Base-T Ethernet Intel 82551ER
USB
6x USB 2.0
Serial Ports
1x RS-232, 1x RS-232/422/485
Primary I/O Misc.
  • SATA: Interface: Two Serial ATA channels


Secondary IO
Display
Display Type
Flat Panel and CRT displays
Chipset
VIA CX700
Resolution
Up to 1920 x 1440 @ 32 bpp
Multi-Display
Dual Independent CRT+LVDS
Expansion
Bus Expansion
1x PC/104, 1x PCI PC/104+
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility

Microsoft Windows Vista

Mechanical and Environmental

Dimensions
Size
4.5" ×3.8" (114mm × 96mm)
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
1.45 A
Power Misc.

Power Management: ACPI Support, APMI 1.2
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)
Related Products
PFM-540I, PCM-3365, VDX-6353, VDX2-6554

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCM-3372F-J 400MHZ VIA EDEN SBC Call
PCM-3372F-M 600MHZ VIA EDEN SBC Call
PCM-3372F-S 1.0GHZ ULV VIA EDEN SBC Call
