PCM-6881


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

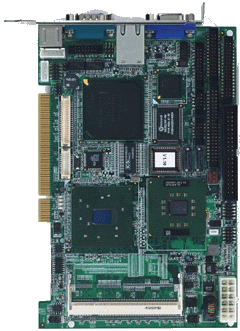

The PCM-6881 is EMAC'S latest low power consumption PCI Half Card solution featuring Intel® innovation. The PCI-6881 is centered on a powerful Intel Celeron/Pentium M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

Features


  • Embedded Intel® Pentium® M/Intel Celeron® M Processor
  • Fanless operation @ 0 ~ 60°C (Celeron M 600 MHz/Pentium 1.1 GHz)
  • 400 MHz Front Side Bus
  • Supports up to 333 MHz ECC DDR SDRAM
  • 1000Base-T Ethernet on board capable
  • Up to 2 Channel 48 bits LVDS for LCD
  • 4 x USB 2.0 port

Overview


The PCM-6881 is EMAC'S latest low power consumption PCI Half Card solution featuring Intel® innovation. The PCI-6881 is centered on a powerful Intel Celeron/Pentium M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCI-6881's design is based on the small Half-Size PCI Card form factor and provides support for PCI Card expansion through the use of a passive PCI backplane. EMAC can provide backplanes and enclosures for the PCI-6881.
The Great Performance on Multimedia Applications

For multimedia applications, the Mobile Intel ® 955GME Express Chipset has the Intel® Graphics media Accelerator (Extreme Graphics 2) function built into the chipset. The high-end graphic capability of the PCM-6881 is ideal for KIOSK, Advertisement, Gaming and Information display applications.
Versatile Dual-View Combinations

Besides LCD support, PCM-6881 also allows developers to show different content on CRT and LCD at the same time. It meets dual view demands as the most cost-effective display solution.
A Wide Range of Expansion Interfaces

PCM-6881 provides you with an endless array off-the-shelf expansion possibilities through the use of the standard PCI bus connector. By adopting versatile PCI Cards, you can extend your onboard features such as adding an additional LAN ports, COM ports, Data Acquisition ports. etc.

Specifications


Processor
CPU
Embedded Fanless Intel Celeron M or Pentium M
Clock Speed
1.6 GHz
Processor Misc.
  • L2 Cache: 512KB/1MB on Celeron M , 1MB/2MB on Pentium M
  • Chipset: Intel 855GME + ICH4
Memory
RAM
2x 200-pin SODIMM
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 4Mbit Flash BIOS
Primary IO
GPIO
8x GPIO
Disk Interface
1x FDD, 2x EIDE (Ultra DMA33/100)
Audio
AC'97 (Line-in/Line-out/Mic-in)
Ethernet
IEEE 802.3U/ 802.3z/ab 100/1000 Base-T RJ-45 82551ER
USB
4x USB 2.0 compliant ports
Serial Ports
3x RS-232, 1x RS-232/422/485
Secondary IO
PS/2
Yes
Display
Chipset
Intel 855GME chip integrated. (Extreme Graphics 2)
Multi-Display
Dual Independent CRT+LVDS
Expansion
Bus Expansion
1x PCI
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility
  • Wind River VxWorks
  • QNX Neutrino RTOS
  • RTAI Real-Time Linux

Mechanical and Environmental


Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.27 kg
Power Requirements
Voltage
5 V
Typical Voltage
5 V
Typical Current
5.2 A
Max Boot Current
6 A
Power Misc.

Power Management: APM 1.2 with ACPI support

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCI-6881F Pentium M Slot PC W 10/100 LAN, no CPU Call
PCI-6881F-M Celeron M 600MHZ Slot PC W/ 10/100 LAN Call
PCI-6881F-S Pentium M 1.1 GHZ Slot PC W/ 10/100 LAN Call
PCI-6881FG Pentium M Slot PC W/ GB LAN, no CPU Call
