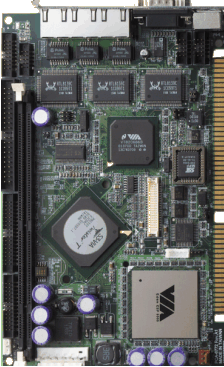

PCA-6772

This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The PCA-6772 is an all-in-one VIA Eden processor based single board computer (SBC) with a AGP CRT/LCD controller, three PCI 100Base-T Ethernet interfaces, and a PCI audio interface. The PCA-6772 achieves outstanding performance that surpasses any other SBC in its class. In addition, the onboard SSD interface supports type II Compact Flash, with memory capacity above 1 GB.

Features

  • Embedded low power VIA Eden 400/667 MHz
  • Fanless, 0 ~ 60�C (32 ~ 140�F) operation
  • One or Three 10/100Base-T Fast Ethernet Connections
  • Supports Compact Flash (SSD) over 1 GB
  • ISA bus interface

Overview

The PCA-6772 is an all-in-one VIA Eden processor based single board computer (SBC) with a AGP CRT/LCD controller, three PCI 100Base-T Ethernet interfaces, and a PCI audio interface. The PCA-6772 achieves outstanding performance that surpasses any other SBC in its class. In addition, the onboard SSD interface supports type II Compact Flash, with memory capacity above 1 GB.

Onboard features include two serial RS232 ports, one multi-mode parallel (ECP/EPP/SPP) port, Pin header for four USB (Universal Serial Bus) ports, a floppy drive controller, and a keyboard-PS/2 mouse interface. The built-in high speed PCI IDE controller supports Ultra DMA/100 mode. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives, etc.

The PCA-6772 also features power management to minimize power consumption. It complies with the ACPI standard and supports three types of power saving features: doze, standby, and suspend mode. In addition, the board's watchdog timer can automatically reset the system or generate an interrupt in case the system stops due to a program bug or EMI.

The PCA-6772 is a highly integrated SBC that combines, video, and network functions on a single computer board. It provides up to 1280 x 1024 resolution @ 24 bit color utilizing shared display memory up to 32 Meg. Major onboard devices adopt PCI technology to achieve outstanding computing performance making the PCA-6772 one of the world's best and most powerful all-in-one Single Board Computer.

Specifications

Processor
CPU
Embedded low power VIA Eden
Clock Speed
400 MHz
Processor Misc.

Chipset: VIA VT8806/VT82C686B
Memory
RAM
512MB SDRAM
Primary Flash
1x CompactFlash™ card Type I/II
BIOS/ Bootloader
AWARD 256KB Flash BIOS
Primary IO
Disk Interface
FDD, Enhanced IDE (UDMA 100)
Audio
VIA 82C686 AC97 2.0 (Line-in/Line-out/Mic-in)
Ethernet
IEEE 802.3u 10/100BASE-T Fast Ethernet compatible with on-board RJ-45 connectors
USB
4x USB
Serial Ports
1x Parallel SPP/EPP/ECP, 2x RS232
Primary I/O Misc.
  • I/O Chipset: VT82C686B
  • DMA: 7 DMA channels (8237 equivalent)
  • Interrupt: 15 interrupt levels (8259 equivalent)
  • IR interface: Supports one IrDA Tx/Rx header


Secondary IO
Display
Chipset
VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
LVDS Interface
Supports 2 Channel (2 x 18bit) LVDS interface
Expansion
Bus Expansion
1x ISA bus
Misc
Operating Systems
EMAC OE Linux, MicroPython, FreeRTOS
Operating Systems Compatibility
  •  RTAI Real-Time Linux
  • Wind River VxWorks
  • QNX Neutrino RTOS

Mechanical and Environmental

Dimensions
Size
7.3" ×4.8" (185mm × 121mm)
Weight
0.3 kg
Power Requirements
Voltage
5 V
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PCA-6772F-J1 VIA 400 MHZ, 1x ETH. ISA Slot CPU Card Call
PCA-6772F-J3 VIA 400 MHZ, 3x ETH. ISA Slot CPU Card Call
PCA-6772F-M1 VIA 667 MHZ, 1x ETH. ISA Slot CPU Card Call
PCA-6772F-M3 VIA 667 MHZ, 3 ETH. ISA Slot CPU Card Call
