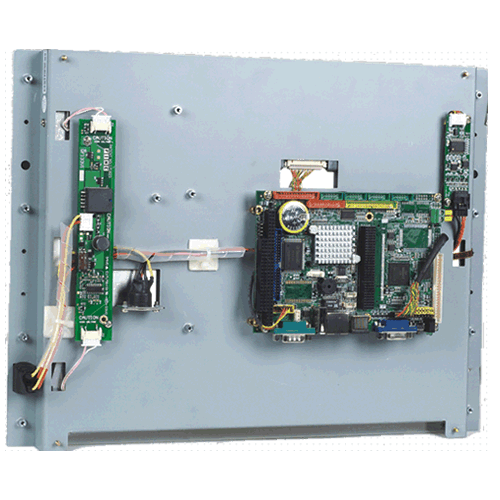

VOX-150 TFT LCD 15" Touch Panel


  • 15" TFT/LVDS LCD Open Frame Touch Panel
  • DM&P Vortex86DX2 800MHz or Vortex86DX3 1GHz processor
  • Up to 1GB on-board DDR2 SDRAM
  • 4x Serial Ports, 3x USB 2.0 Ports
  • 4-Wire Resistive Touch Screen

Setting up a Panel PC can be a Puzzling experience. However,when purchased with an Operating System and Compact Flash, the VOX-150 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-150 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

Features


  • 15" TFT/LVDS LCD Open Frame Touch Panel
  • Fanless DM&P Vortex86DX2 800MHz or Vortex86DX3 1GHz processor.
  • Based on the VDX3-6726 or VDX2-6526
  • Inexpensive Open-Frame Design
  • 10/100BaseT Ethernet
  • 4x Serial ports with handshake
  • 3x USB 2.0 Host ports (one USB taken by Touchscreen)
  • Up to 1 GB of On-Board SDRAM
  • Audio with Mic-In/Line-In/Line-Out
  • 15" Graphic LCD Interface
  • XVGA (1024 x 768) LCD Resolution
  • Touchscreen Interface
  • 47 Watt Power Supply Included
  • EMAC OE embedded operating system with Desktop. (web browser in Kiosk Mode available.)
  • Windows Embedded Standard Build Image available
  • Windows CE 6.0 BSP and SDK available
  • Windows Embedded Compact 7 BSP and SDK available
  • Can be utilized with other SBCs.

Overview


Setting up a Panel PC can be a Puzzling experience. However,when purchased with an Operating System and Compact Flash, the VOX-150 Compact Panel PC comes ready to run. Just apply power and watch either the Linux X Windows or the Windows XP/CE User Interface appear on the vivid color LCD. Interact with the VOX-150 using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

Manuals
vox-150.pdf
VMXP-6427_UM.pdf
Data Sheets
OpenFrame_LCDSET_DS.pdf
6427_datasheet.pdf

Specifications


Processor
CPU
DM&P Vortex86DX2 or Vortex86DX3
Clock Speed
800 MHz
Processor Misc.
  • Vortex86DX2 at 800 MHz
  • Vortex86DX3 at 1GHz
Memory
RAM
Up to 2GB DDR3 Onboard
RAM Type
512 MB or 1 GB DDR2 Onboard
Primary Flash
SATA DOM
BIOS/ Bootloader
AMI BIOS
Memory Misc.
  • SATA



Primary IO
GPIO
16x GPIO
Disk Interface
1x SATA
Audio
ALC 262 (HD Audio) with Mic-In/Line-In/Line-Out
Video Out
VGA, TFT or LVDS ouput with 16MB or 32MB of Video Memory
Ethernet
1x 10/100 Base-T Ethernet with on-Board RJ-45 connector 2x 10/100/1000 LAN headers
USB
3x USB 2.0
Serial Ports
4x RS232/422/485
Primary I/O Misc.
  • Parallel: Standard Parallel Printer Port.
Secondary IO
LPT Port
Yes
PS/2
Yes
Display
Display Type
15.0" TFT Color LCD
Resolution
1024 × 768 mm
Pixel Pitch
0.297 × 0.297 in
LCD Colors
256K
Viewing Angle
80/80/70/80
Luminance
350 cd/m2
LCD Misc.

Backlight: Dual CCFL

Misc
Operating Systems
EMAC OE Linux, Windows Embedded Standard 2009 / WES09 (Windows XPE ), WES 7 - Windows Embedded Standard 7
Operating Systems Compatibility
  • RTAI Real-Time Linux
  • Microsoft Windows XP / WES09
  • Microsoft Windows CE /CE.net

Mechanical and Environmental


Dimensions
Size
14.49" ×10.95" ×2.45" (368mm × 278mm × 62mm)
Power Requirements
Power Misc.
  • Power Supply Voltage: +5 & +12 Vdc.
  • Power Consumption: ~20 Watts
Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature50 C (122 F)
Environmental Misc.

Wide temperature options aviliable

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
VOX-150-0200 15" OPEN FRAME PPC W/TOUCHSCREEN 512MB RAM & PS $772.50
VOX-150-0300 15" OPEN FRAME PPC W/TOUCHSCREEN 1GB RAM & PS $797.50

Peripheral Options


Product # Description Price
Operating Systems
EMAC OE Linux 4.0 PPC x86 EMAC OE Linux 4.0 PPC x86 (old version, may have install fee at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
