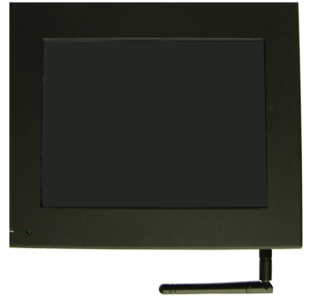

PPC-080T-D525


This product is End-of-Life. Please contect our Sales Department for the recommended replacement.

The PPC-080T-D525 is a Intel Atom D525 Dual core 1.8 Ghz processor based Touch Panel PC. This 8" Panel PC is suitable for use in harsh work environments such as industrial automation or point of sale. This unit has s a robust aluminum housing.

Features


  • Intel Atom D525 Dual core 1.8 Ghz
  • 2GB DDR3 800MHz SODIMM RAM
  • 16GB SATA SSD Hard Drive
  • 8" Color LCD Screen - 800 x 600
  • Analog Resistive Touchscreen
  • 10/100/1000 Base-T Ethernet
  • Wireless 802.11 b/g/n
  • 4 External USB 2.0 Ports
  • External ESATA Port
  • External RS 232 Port
  • External VGA Port
  • Mini-PCI expansion slot
  • Audio Line In & Line Out
  • 2W Stereo Internal Speakers
  • 12V DC in
  • Dimensions: 8.5" x 7.20" x 1.77"

Overview


The PPC-080T-D525 is a Intel Atom D525 Dual core 1.8 Ghz processor based Touch Panel PC. This 8" Panel PC is suitable for use in harsh work environments such as industrial automation or point of sale. This unit has s a robust aluminum housing.

Manuals
Data Sheets

Specifications


Processor
CPU
Intel Atom D525 dual core
Clock Speed
1.8 GHz
Memory
Memory Misc.

Memory: 2GB DDR3 800MHz SODIMM

Primary IO
Audio
Realtek ALC 662 Audio Codec, supports 2/4 Channel Audio-Out, 2x 2W loudspeaker
Ethernet
10/100/1000 Base-T Ethernet
USB
4x USB 2.0
Serial Ports
2x COM/RS232 header (1x connected to external COM-connector)
Primary I/O Misc.
  • Mini-PCI Expansion slot: for optional wireless networking or other Mini-PCI peripherals.
  • Additional I/O:1x MiniPCI-E (W-Lan card Intel 4965 Chip integrated), 2x SATA 300MB/s ports, 1x Front Panel Audio header

Touchscreen

  • Type: 4-wire analog resistive
  • Typical Reaction Time (Tr,Tf): 10ms/15ms
  • Lifetime: 1 million touches
Secondary IO
PS/2
Yes
Display
Display Type
8" Color Display
Resolution
800 × 600 mm
Viewing Angle
140° (horizontal), 120 ° (vertical)
LCD Misc.

Contrast: 500 : 1

Misc
Operating Systems
EMAC OE Linux
Operating Systems Compatibility
  • Linux
  • Microsoft WES09

Mechanical and Environmental


Dimensions
Size
8.5" ×7.2" ×1.77" (215mm × 182mm × 44mm)
Weight
2.65 g (0 lbs)
Power Requirements
Voltage
12 V
Power Misc.

12V DC-In

Environmental
Low Operating Temperature0 C (32 F)
High Operating Temperature60 C (140 F)

Pricing


Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
PPC-080T-D525 Atom d525 dual core 1.8GHz, 2GB RAM, 30GB SATA SSD $795.00
PPC-080T-n270 Atom n270 Processor 1.6GHz, 2GB RAM, 30GB SATA SSD $745.00

Peripheral Options


Product # Description Price
Operating Systems
SL05x-XON-p EMAC OE Linux 5.x for x86 Panel PC (Free installation at time of purchase of SBC & media) Free
SX300-000-0000D Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $125.00
