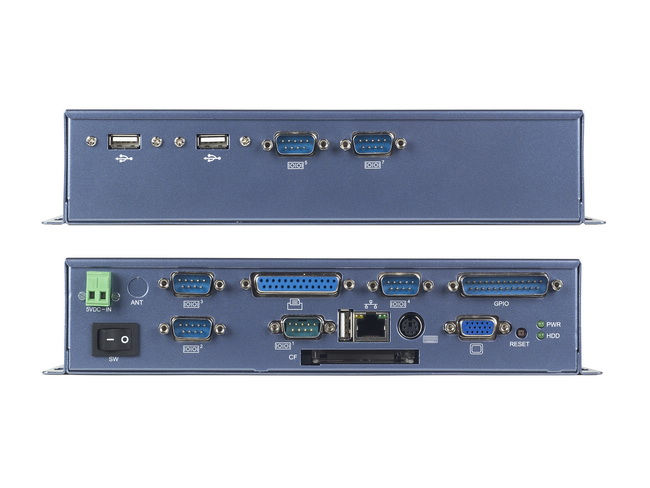

Vortex Server-In-a-Box (SIB)

  • 800MHz Vortex86DX System-On-Chip
  • 10/100 Base-T Ethernet, 5x RS-232, 3x USB 2.0
  • Extremely reliable (no moving parts)
  • 256 MB DDR2 RAM, Onboard 4MB SPI Flash
  • 512MB (Optional)

The EMAC Vortex Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Vortex SIB utilizes the Vortex86DX, 800MHz fanless processor allowing it to run Linux and WinCE Operating Systems. Like all SIBs, the Vortex SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Vortex SIB is just as comfortable in a basement wiring closet as it is on a desktop.

Features

  • 800MHz Vortex86DX System-On-Chip
  • 10/100BaseT Ethernet
  • 5 Serial RS232 ports
  • 3 USB 2.0 (Full Speed) Host ports
  • Parallel port
  • 512 MB of DDR2 (Optional)
  • VGA, TFT/LVDS LCD support up to 1280x1024 resolution
  • 16-bit GPIO
  • Battery backed Real Time Clock
  • 4GB CF Card
  • Onboard 4MB SPI Flash
  • 2 watchdog timer
  • Extremely Reliable (No Moving Parts)

Overview

The EMAC Vortex Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Vortex SIB utilizes the Vortex86DX, 800MHz fanless processor allowing it to run Linux and WinCE Operating Systems. Like all SIBs, the Vortex SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Vortex SIB is just as comfortable in a basement wiring closet as it is on a desktop.

The Vortex SIB is suitable for broad range of data-acquisition, Industrial automation, Process control, Automotive controller, AVL, Intelligent Vehicle management device, Medical device, Human machine interface, etc.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.

Manuals
vdx-6328.pdf
Download (PDF)
VDX-6328RD-NF_UM_v1r1A.PDF
Download (PDF)
Data Sheets
eb_20X_datasheet.pdf
Download (PDF)
VDX-6328RD-NF_DS.pdf
Download (PDF)

Specifications

Processor
CPU
Vortex86DX System-On-Chip
Clock Speed
800 MHz
Memory
RAM Type
DDR2
Primary Flash
onboard 4MB SPI Flash
Memory Misc.

Flash: 4GB CF Card
Primary IO
GPIO
16-bit GPIO
Video Out
VGA, TFT/LVDS LCD 1280x1024
Ethernet
10/100BaseT Ethernet
USB
3x USB
Serial Ports
5x RS-232, 1x Parallel
Secondary IO
Misc
Operating Systems
EMAC OE Linux
Operating Systems Compatibility
  • RTAI Real-Time Linux
  • Microsoft Windows CE /CE.net
  • Microsoft Windows 95, 98, NT / NTE
  • Microsoft Windows XP, XPE (requires special configuration)
  • Microsoft MS-DOS 6.22 & RomDos 6.22

Mechanical and Environmental

Dimensions
Size
2" ×10" ×5.75" (50mm × 254mm × 146mm)
Weight
1270 g (2 lbs)
Dimensions Misc.

Mounting: Desk/Wall mount
Power Requirements
Typical Voltage
5 V
Typical Current
840 mA
Environmental
Low Operating Temperature-20 C (-4 F)
High Operating Temperature70 C (158 F)

Pricing

Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.

OEM / Quantity Pricing Available on Request - Less Services

(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

Product # Description Price
SIB-05000 Vortex86DX 3.5" CPU Module with 256MB DDR2 Call

Peripheral Options

Product # Description Price
Operating Systems
SL05x-XON-xx EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) Free
SC600-000-0010D Windows CE 6.0 Pro License (Basic configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) $25.00
