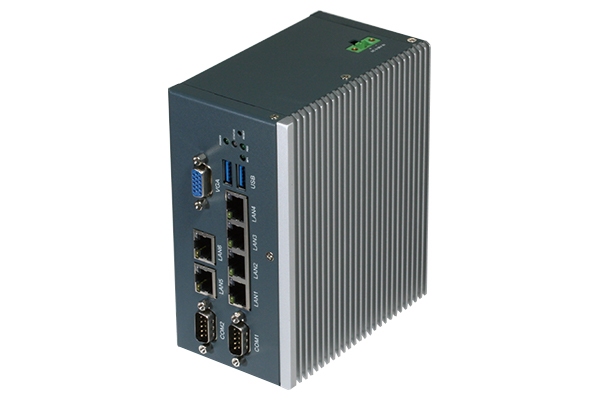

The DIN PC-333x Series is an innovative device that provides a perfect balance between performance and energy efficiency. The DIN PC-333x is Fanless designed with wide operating temperature range of up to 50°C, making it suitable in warehouse and factory environments. The low power design is ideal for M2M, IOT and Industrial Automation applications where constant on operations are required.
SIB-710IVX is the ARM based system which integrated NVIDIA Jetson Xavier NX System-on-Module processor, providing 384 CUDA cores.
SIB-A2121
22Spi411SS55 SIB-A2121 is an industrial grade qual core mobile device for outdoor NVR solution.
Features
- Intel® Celeron™ J1900 or Intel® Atom™ E3845 Quad Core
- Up to 8GB RAM
- Up to 6x RS-232/422/485 with auto flow control
- Up to 6x USB (1xUSB3.0 all remaining are USB2.0)
- Up to 6x LAN (2x10/100/1000 Mbps & 4x 10/100 PoE Ports)
- Up to 4x Full-size Mini PCIe (2x with SIM Holder, 1x mSATA support, 1x WLAN Module support)
- HDMI & VGA Dual Display
- 2x SATA (mSATA & 2.5" SATA Storage Device)
- Up to 8x GPIO
- 2x Full Size Mini PCIe
- PS/2
- Audio HD Line-in, Line out, mic-in
- AMI EFI BIOS
- Watchdog Timer
- Real Time Clock
- -20 ~ +70° C Extend Operating Temperature
- 95% @ 40°C (non-condensing)
- 9 ~ 36V Wide Range Power Input
- 10.41 x 2.69 x 5.24"
Overview
SIB-A2121 is an industrial grade qual core mobile device for outdoor NVR solution.
SIB-A2121 support HD NVR solution for and is fully integrated certified hardware and intelligent management software design. Well-developed vehicle software SDK and APIs for surveillance applications. Also, extension capacity and wireless communcation (Wi-fi/3G /mSATA) for excellent connectivity, high graphic power (Up to 1080P@ 120fps) for video preview, and integrated software for manageability and security.
| Manuals | |
|---|---|
| ARK-2121V_User_Manual_Ed.1-Final.pdf | Download (PDF) |
| ARK-2121S_User_Manual_ed.1-Final.pdf | Download (PDF) |
| ARK-2121L_User_Manual_Ed.1-Final.pdf | Download (PDF) |
| Data Sheets | |
|---|---|
| ARK-2121V_DS.pdf | Download (PDF) |
| ARK-2121S_DS.pdf | Download (PDF) |
| ARK-2121L_DS.pdf | Download (PDF) |
| ARK-2121F_DS.pdf | Download (PDF) |
Specifications
| Processor | |
|---|---|
| CPU | Intel® Atom™ E3845 or Celeron™ J1900 Quad Core |
| Clock Speed | 2 GHz |
| Memory | |
|---|---|
| RAM Type | DDR3L 1333 MHz SODIMM module |
| Primary Flash | mSATA |
| Secondary Flash | 2.5 SATA HDD or SSD |
| BIOS/ Bootloader | AMI EFI |
| Primary IO | |
|---|---|
| GPIO | Up to 8x DIO |
| Disk Interface | 2x SATA |
| Audio | Audio HD Line-in |
| Video Out | HDMI & VGA |
| Ethernet | Up to 6x LAN |
| USB | Up to 6x USB |
| Serial Ports | Up to 6x RS-232/422/485 |
| Secondary IO | |
|---|---|
| Power Supply | 9 ~ 36 V Wide Range |
| Misc | |
|---|---|
| Operating Systems | EMAC OE Linux, MicroPython, FreeRTOS, EMAC OE, Yocto, Qt, ROM-DOS 6.22 / MS-DOS 6.22 |
Mechanical and Environmental
| Dimensions | |
|---|---|
| Size | 10.41" ×2.69" ×5.24" (264mm × 68mm × 133mm) |
| Weight | 5.07 lb |
| Power Requirements | |
|---|---|
| Voltage | 9 V |
| Typical Voltage | 12 V |
| Typical Current | 1.5 A |
| Power Misc. | 9 ~ 36 V Wide Range |
| Environmental | |
|---|---|
| Low Operating Temperature | -20 C (-4 F) |
| High Operating Temperature | 70 C (158 F) |
| Upper Operating Humidity | 95% |
| Environmental Misc. | 95% @ 40°C (non-condensing) |
Pricing
Pricing correct as of January 2021. Please contact EMAC for Current Pricing and Lead Time. Due to volatility in the electronics industry pricing is subject to change.
OEM / Quantity Pricing Available on Request - Less Services
(Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)
| Product # | Description | Price |
|---|---|---|
| SIB-A2121-F00-R | ARK-2121F, Intel® Celeron™ J1900 QC, 6xRS232/422/485, 1xUSB3, 5xUSB2, 2xGig LAN, VGA&HDMI | Call |
| SIB-A2121-L00-R | ARK-2121L, Intel® Celeron™ J1900 QC, 2xRS232, 2xRS232/422/485, 1xUSB3, 3xUSB2, 2x Gig-LAN, VGA & HDMI | Call |
| SIB-A2121-S00-R | ARK-2121S, Intel® Atom™ E3845 QC, 2xRS-232/422/485, 1xUSB3, 3xUSB2, 2xGig LAN, 4xPOE, 6xDI, 2xDO, VGA & HDMI | Call |
| SIB-A2121-V30-R | ARK-2121V-S3, Intel® Atom™ E3825 DC, 2xRS-232/422/485, 2xRS-232/422/485, 1xUSB3, 3xUSB2, 2xGig LAN, 6xDI, 2xDO, VGA & HDMI | Call |
| SIB-A2121-V90-R | ARK-2121V-S9, Intel® Atom™ E3845 QC, 2xRS-232/422/485, 1xUSB3, 3xUSB2, 2xGig LAN, 4xPOE, 6xDI, 2xDO, VGA & HDMI | Call |
Peripheral Options
| Product # | Description | Price |
|---|---|---|
| Peripherals | ||
| PER-RAM-00161 | 4GB DDR3L 1.35V SODIMM | Call |
| PER-RAM-00165 | 2GB DDR3L 1.35V SODIMM (Industrial Temp -40 to 85C) | Call |
| PER-FLS-00091-R | mSATA Flash module 32GB MLC Std | Call |
| PER-FLS-00102-R | mSATA Flash module 32GB MLC (-40 to 85°C) | Call |
| Operating Systems | ||
| SL05x-XON-xx | EMAC OE Linux 5.x for x86 (Free installation at time of purchase of SBC & media) | Free |
| SX300-000-0000D | Windows Embedded Standard 2009 (WES09) & License (Base configured installation included with License, Flash and SBC purchase; SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA) | $125.00 |
| S7000-NOL-00020 | Windows Embedded Standard 7 (WES7) & License. SOLD ONLY WITH HARD DRIVE OR FLASH DRIVE MEDIA (EOL 10/13/2020) | $125.00 |
