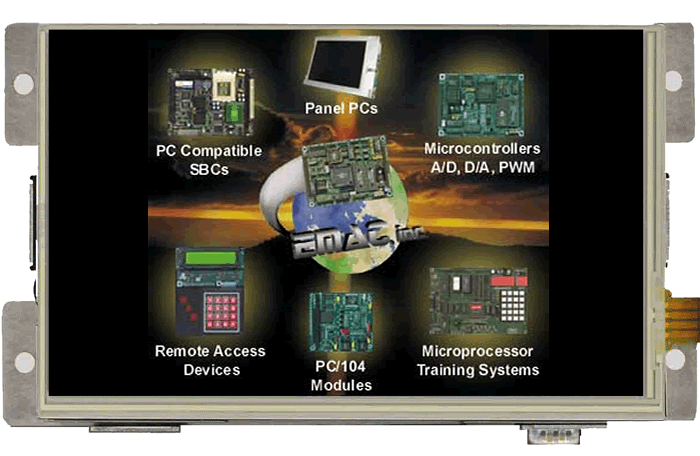

Setting up a Panel PC can be a Puzzling experience. However, the PPC-E10+ Compact Panel PC comes ready to run with the Operating System installed on flash disk. Apply power and watch either the Linux X Windows or the Windows CE User Interface appear on the vivid color LCD. Interact with the PPC-E10+ using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.

FEATURES

• TI ARM A8 600 Mhz Fanless Low Power Processor
• Inexpensive Open-Frame Design
• 10/100BaseT Ethernet with on-board PHY
• 3 RS232 & 1 RS232/422/485 Port
• 1 USB 2.0 (High Speed) Host port
• 1 USB 2.0 (High Speed) OTG port
• Up to 512MB of DDR2 SDRAM
• Up to 1GB of NAND Flash
• Up to 4GB eMMC
• Can 2.0B Controller
• Battery backed Real Time Clock
• 1 I2S Audio port with Line-In/Line-Out
• Timer/Counters and Pulse Width Modulation (PWM) ports
• 4 Channel 10-bit Analog-to-Digital converter
• Operating Voltage of 12 to 26 Vdc.
• Graphic LCD Interface with optional 2D acceleration & Hardware CODECs
• WVGA (1024x600) Resolution with LED Backlight
• Analog Resistive Touchscreen and Software Controlled Backlight On/Off & Brightness
• JTAG for debug, including real-time trace
• FREE Eclipse IDE with GCC & GDB development tools
• WinCE 6.0 BSP and SDK available
• Android Available

Linux Features

The Linux build for the PPC-E10 is based on the OpenEmbedded Linux build system. The current kernel is Linux 2.6.20 or higher patched to support the PPC-E710.

The basic root filesystem includes:

• X Windows (Kdrive X Server 1.4 or higher)
• Matchbox Windows Manager
• Busybox 1.7.2 or higher
• Hotplugging support
• Open SSH server
• Telnet/FTP support running under inetd
• busybox-httpd HTTP server
• JFFS2 filesystem with utilities
• Mplayer
• many other utilities

Custom Linux builds are also available on request.

PPC-E10 Linux Development

EMAC provides a Free Eclipse IDE that is pre-integrated to provide everything the user needs for developing PPC-E10 applications. All the compiling, converting and downloading inherent to development can be done from one easy to use high level interface. The distribution provides an SDK for the EMAC PPC-E10 which contains source examples and Device Drivers.

The EMAC Eclipse IDE is a powerful, yet flexible Integrated Development Environment for the PPC-E10 and even features SVN version control support. For a screen shot of EMAC's Linux Eclipse based Development Environment click here.

The PPC-E10 can use most of the EMAC's standard Linux Modules including the Xenomai Real Time, Php, SQLite and Lighttpd web server modules. For a listing of these module see our Embedded Linux Operating Systems Page.

Linux Development Software

• Bootloader: Resident Flash Bootloader (U-Boot)
• Operating System: Linux
• Programming Languages: GNU GCC C compiler GDB Debugger
• Networking: Full resident TCP/IP protocol stack
• Integrated Development Environment: Eclipse 3.3 or higher
• Drivers: Serial RS232/422/485, Ethernet, USB, Hardware SPI, Audio, Video, Touchscreen, Multi-Media Card/Secure Digital (MMC/SD), A/D, PWM, and GPIO.
• Applications: Bash shell , Telnet Server, FTP Server, Web Server, and Test Programs

SPECIFICATIONS

Standard Panel PC Functions

• CPU: Fanless TI ARM A8 600Mhz Processor
• Flash: Up to 1GB of NAND Flash, and 4GB eMMC.
• RAM: Up to 512MB of external DDR2 / SDRAM.
• Video: 2D/3D Accelerated Video Interface
• Touchscreen: 10-Bit, 4 wire analog resistive Touchscreen
• System Reset: Supervisor with external Reset Button provision.
• RTC: Battery backed Real Time Clock/Calendar.
• Timers: 6, general purpose 16-bit Timers, & Counter/PWM
• Watchdog Timer: Reset-on-Timeout
• Analog I/O: 4 channel, 10-bit Analog-to-Digital converter (ADC)
• GPIO: 16 Programmable 3.3V I/O lines
• Expansion: Provison for PCD-E12 I/O module

Serial Interfaces

• UARTS: 3 serial RS232 serial ports with handshaking & 1 RS232/422/485 with Auto RS485
  SPI: High-Speed SPI ports with Chip Selects.
• I2C: I2C port
• Audio: I2S Synchronous Serial Controller with Line In/Out
• USB: 1 USB 2.0 (High Speed) Host port
            1 USB 2.0 (High Speed) OTG Host/Device port

LCD

• Display Type: 10" TFT Color LCD
• Resolution: 1024 x 600 WVGA @ 256K Colors
• Dot pitch: 0.19mm x 0.19mm
• Luminance: 330 (cd/m²)
• Viewing Angle: 55°
• Brightness: Software controlled
• Backlight: White LED (33 LEDS)

Touchscreen

• Type: 4 Wire Analog Resistive
• Resolution: Continuous
• Controller: Built-In
• Driver: WinCE, Linux
• Durability: Over one million touches

Ethernet Interface

• Ethernet MAC: Built-In
• Ethernet PHY:Micrel KSZ8041
• Ethernet Type: 10/100 Base-T Ethernet
• Ethernet Interface: On-Board RJ-45 connector

Solid State Disk

• Supports: SDIO SDHC/MMC interface up to 32+ GB Flash Disk

Mechanical and Environmental

• Power Supply Voltage: +12 to +26 Vdc.
• Power Consumption: typical ~200 ma. @ 24 Vdc.
• Operating Temperature: 0 ~ 60° C (32 ~ 140° F)

PRICING (Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

PPC-E10-0100 .. Compact PPC w/Touchscreen & SOM-9G45

CALL

PPC-E10-0200 .. Compact PPC w/Touchscreen & SOM-9M10

CALL

Operating System Options

SL040-AON-00010 .. Embedded Linux standard ARM build

Free

25.00
