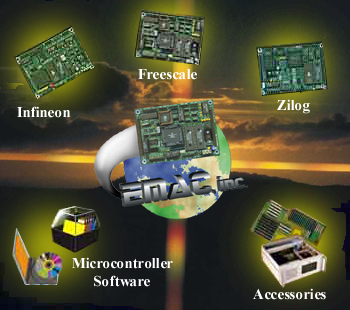

Infineon Freescale ZilogMicrocontroller Accessories Home Page





SBC Microcontrollers are Single Board Computers that utilize 8, 16, and 32-bit microcontrollers versus microprocessors, which are typically used on x86 SBCs. Microcontrollers are usually defined by a microprocessor with the addition of general purpose I/O lines, Timer/Counters, PWM channels, A/D inputs, etc. all built into the same chip. These microcontrollers are ideal for data acquisition and control applications. However, in order to interface these microcontroller based SBCs to a world of I/O devices a interface number of rules must be followed. For more info on these Interface Rules click here.



Name

CPU

Memory ROM/ RAM/ EEPROM

Serial Ports

Digital I/O

Timers/ Counters

A/D

D/A

Form Factor

Other I/O

iPac 9302

Cirrus
EP9302
ARM9

Up to
32MB Flash
64MB RAM
EEPROM 256

1 RS-232
1 RS-232 422/485

16 GPIO
16 Outs,
8 Ins,
8 HiDrive,

3 Multi-Purpose Timers/ Counters/ PWMs/,
Watchdog

5 Chan. 12 bit

none

iPac
3.8"x3.5"

10/100 BaseT,
Dual USB 2.0 Host Port,
Battey Backed Clock

MicroPac 535

Infineon
80C535 (8051)
8-Bit

Up to
128K ROM 128K RAM 256 EEPROM 256 Internal RAM

3 Total RS232/ 485,
1-3 RS232
1-3 RS485

24 Total
18 Prog.
3 Ins
3 Outs

4, 16 bit with PWM, Watchdog

8 Chan. 8/10 bit

4 Chan. 8 Bit

uPac
5.4"x3.63"

Clock, Backlit LCD Interface, 20 Key Keypad Interface, Battey Backed Ram

MicroPac 515C

Infineon C515C (8051)
8-Bit

Up to
128K ROM 512K RAM 1K EEPROM
2K Internal RAM

4 RS-232
1-4
RS-232
1-3
RS-485

32 Total:
19 Prog.
8 HiDrive
2 Ins
3 Outs

4, 16 bit with PWM, Watchdog

8 Chan. 10 bit

4 Chan. 8bit

uPac
5.4"x3.63"

CAN 2.0B, Clock, Backlit LCD Interface, 20 Key Keypad Interface,
Battey Backed Ram

iPac HSC12

Freescale
68HCS12
16-Bit

256K Flash
12K RAM 4K
EEPROM

1 RS-232
1 RS-232/ 422/485

16 General Purpose,
8 Multi-Purpose,
8 HiDrive,
8 Ins,
8 Outs

8 Multi-Purpose Timers/ Counters/ PWMs/
GP I/Os, Watchdog

16 Chan. 10 bit,
8 Chan. 12 bit
w/
4-20ma

2 Chan. 8 Bit,
4 Chan. 12 bit

iPac
3.8"x3.5"

CAN 2.0A/B, Clock, Backlit LCD Interface, 24 Key Keypad Interface,
Battey Backed Ram

MicroPac HC16

Freescale
68HC16-Z1 (DSP)
16-BIt

Up to
512K ROM 1M RAM 512 EEPROM

2 Total RS-232/ 485,
1-2
RS-232
(1) RS485

24 Total
16 Prog.
8 HiDrive Outs

2, 16 bit with PWM 2, 8 bit Timer/ Cntr, Watchdog

Fast
8 Chan. 10 bit

8 Chan. 8 bit

uPac
5.4"x3.63"

Clock, Backlit LCD Interface, 16 Key Keypad Interface,
Battey Backed Ram

MicroPac HC11

Freescale
68HC11-F1
8-Bit

Up to
32K ROM 128K RAM 512 EEPROM 1K Internal RAM

2 Total RS232/ 485,
1-2 RS232 (1) RS485

20 Total
12 Prog.
8 HiDrive Outs

1, 16 bit with PWM, 1, 8 bit Timer/ Cntr, Watchdog

8 Chan. 8 Bit

4 Chan. 8 Bit

uPac
5.4"x3.63"

Clock, Backlit LCD Interface, 20 Key Keypad Interface,
Battey Backed Ram

MicroPac 180

Zilog
Z180
8-Bit

Up to
512K ROM 512K RAM 1K EEPROM

3 Total RS232/ 485,
1-3 RS232 (1) RS485

24 Total
16 Prog.
8 HiDrive Outs

2, 16 bit Timers, Watchdog.

8 Chan. 10/12 bit

4 Chan. 12 Bit

uPac
5.4"x3.63"

Clock, Backlit LCD Interface, 16 Key Keypad Interface,
Battey Backed Ram

EPAC 3000

Zilog
Z180
8-Bit

Up to
128K ROM 384K RAM 1K EEPROM

2 Total RS232/ 485,
1-2 RS232 (1) RS485

36 Total
20 Prog.
8 HiDrive Outs
8 OptoIns

2, 16 bit Timers, Watchdog

16 Chan. 8/13 bit

4 Chan. 8 bit

EPAC
8.2"x5.69"

Real Time Clock,
Battey Backed Ram

EPAC 3000 G2

Zilog
Z180
8-BIt

Up to
512K ROM 512K RAM 1K EEPROM

4 Total RS232/ 485,
1-4 RS232 (1) RS485

32 Total
16 Prog.
8 HiDrive OptoOuts
8 OptoIns

2, 16 bit Timers 4, 8 bit Timer/ Cntr, Watchdog

Fast 16 Chan.
13 Bit

2 Chan. 12 bit

EPAC
8.2"x5.69"

Clock Backlit LCD Interface,
Battey Backed Ram
