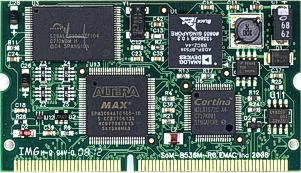

SoM-536EM Top View

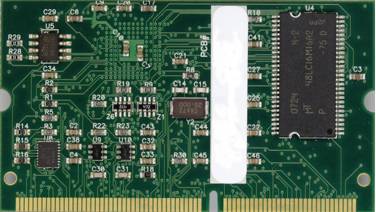

SoM-536EM Bottom View


Features

Specifications

Pricing



Adobe PDF Document SoM-536EM Manual

The SoM-536EM is Based on the Analog Devices Blackfin ADSP-BF536 processor. This embedded processor has an Ethernet MAC built-in along with 3 serial ports. The BF536 combines a 32-bit RISC-like instruction set and dual 16-bit multiply accumulate (MAC) signal processing functionality with the ease-of-use attributes found in general-purpose microcontrollers. This combination of processing attributes enables Blackfin Processors to perform equally well in both signal processing and control processing applications. It is equipped with an MMU and can utilize uClinux Operating System with Real Time extensions.

A SoM (System on Module) is a small embedded module that contains the core of a microprocessor system. Using the same small SoM SODIMM form-factor utilized by other EMAC SoM modules, the SoM-536EM is the ideal processor engine for your next design. All of the Blackfin’s processor core is included on this tiny board including: Flash, Memory, Serial Ports, Ethernet, CAN, PWMs, Timer/Counters, A/D, digital I/O lines, Clock/Calendar, and more.

The SoM-536EM is designed to plug into a carrier board that contains all the connectors and any custom I/O required for the application. This approach allows the customer or EMAC to design a Custom Carrier Board, that meets the customer's I/O, dimensional, and connector requirements without having to worry about the processor, memory, and standard I/O functionality. With this System on Module approach, a semi-custom hardware platform can be developed in as little as a month.

In addition to the option of the developing a Carrier board, one can be purchased off-the-shelf from EMAC. EMAC provides off-the-shelf Carrier boards that feature A/D, D/A, MMC/SD card, keypad, LCD, and Modem interfaces. The off-the-shelf Carrier Board (SoM-100ES) allows the user to immediately start coding their application using the powerful uClinux Operating System and Tools.

The System On Module approach provides the flexibility of a fully customized product at a greatly reduced cost.



SoM FEATURES

  • Small, 144 pin SODIMM form factor (2.66" x 1.5")
  • Blackfin hybrid RISC/DSP high performance core running at up 600 MHz
  • Low Power Consumption with Dynamic Power Management.
  • 10/100BaseT Ethernet with on-board PHY
  • 2 serial ports with handshake
  • 1 CAN 2.0B port
  • 1-Wire® Network provision
  • Up to 64 MB of SDRAM
  • Up to 4 MB of Flash
  • 128K Bytes of Serial Flash
  • Battery backed Real Time Clock
  • SPI, I2S & I2C
  • Timer/Counters and Pulse Width Modulation (PWMs) port
  • Typical power requirement less than 1 Watt
  • JTAG for debug, including real-time trace
  • FREE Eclipse IDE with GCC & GDB development tools





uClinux Features

I/O Interfaces

Support in uClinux

RS-232 Serial

3

Ethernet

1

I2C

1

RS-485

1

SPI

1

CAN

1

I2S
1
GP Timers/PWMs
8

Networking

Full TCP/IP Stack

Yes

PPP

Yes

IPv4

Yes

IPv6

Yes

DAD

Yes

DN

Yes

UDP

Yes

IGMP

Yes

ICMP

Yes

STMP

Yes

DHCP

Yes

FTP

Yes

TELNET

Yes

HTTP

Yes




SoM-536EM uClinux Development

EMAC provides a Free Eclipse IDE that is pre-integrated to provide everything the user needs for developing SoM-536EM applications. All the compiling, converting and downloading inherent to SoM-536EM development can be done from one easy to use high level interface. The distribution provides an SDK for the EMAC SoM-100ES and SoM-536EM which contains source examples for the Interrupt Driven Keypad, LCD, Digital I/O ports, A/D, D/A, SPI, MMC, and Modem.

The EMAC Eclipse IDE is a powerful, yet flexible Integrated Development Environment for the SoM-536EM and even features SVN version control support. For a screen shot of EMAC's SoM-536EM Eclipse based Development Environment click here.

The SoM-536EM can use most of the EMAC's standard Linux Modules including the Real-Time module. For a listing of these module see our Embedded Linux Operating Systems Page. EMAC has ported Xenomai Real-Time extensions to the SOM-536EM.

Xenomai is a real-time development framework cooperating with the Linux kernel, in order to provide a pervasive, interface-agnostic, hard real-time support to user-space applications, seamlessly integrated into the GNU/Linux environment.

EMAC incorporates Xenomai into it's mainstream SoM-536EM distribution to create accurate periodic user space tasks with sub-ms periods. Linux users are provided with several examples of an easy to use interface, which communicates with the boards I/O through generalized hardware classes. For more info on Xenomai go to: www.xenomai.org/index.php/Main_Page.



Development Software

  • Bootloader: Resident Flash Bootloader (Das Uboot)
  • Operating System: uClinux with Optional RTAI extensions
  • Programming Languages: GNU GCC C compiler GDB Debugger
  • Networking: Full resident TCP/IP protocol stack
  • Integrated Development Environment: Eclipse 3.1
  • Drivers: Serial RS232/422/485, Ethernet, Hardware SPI, CAN, Character LCD, Interrupt Driven Keypad, Multi-Media Card/Secure Digital (MMC/SD), Modem, A/D, D/A, PWM, and General Purpose I/O.
  • Applications: Minix shell with File System, Telnet Server, FTP Server, Web Server, and Test Programs



SPECIFICATIONS

Standard SoM Functions

  • CPU: Embedded Blackfin BF536 processor with a standard operating frequency of 400 MHz
  • Flash: 2 MB External Flash (4 MB Optional) with resident Bootloader in 512K of Internal Flash
  • RAM: 16 MB SDRAM
  • System Reset: Supervisor with external Reset Button provision
  • Timer/Counters: 8, 32-bit timers/counters with capture, compare, and DMA capability.
  • Watchdog Timer: Programmable system reset
  • Digital I/O: 24 General Purpose I/Os with 25 ma. drive when used as an output

Serial Interfaces

  • UARTS: 2 serial TTL level serial ports with a max. baud rate of 115K baud (each UART requires external RS level shifting).
  • SPI: High-Speed SPI port with DMA
  • I2S: Dual Channel High-Speed SPORTS supporting up to 8 I2S channels
  • CAN: Full CAN 2.0B non-isolated controller
  • I2C: Bus Controller

Ethernet Interface

  • MAC: On chip MAC
  • PHY: Intel/Cortina LXT927ALC
  • Interface: IEEE 802.3u 10/100 BaseT Fast Ethernet (requires external magnetics & Jack)

Bus Interface

  • Local Blackfin BF536 Bus accessible through SODIMM provides 22 address lines, 16 data bus lines, and control lines.

Mechanical and Environmental

  • Dimensions: SODIMM form factor with the length dimension extended (2.66" x 1.5")
  • Power Supply Voltage: +3.3 Volts DC +/- 5%
  • Power Requirements: Typical 3.3 Volts @ 300 mA.
  • Operating Temperature: 0~70 C (32~158 F), fanless operation
  • Operating Humidity: 0%~90% relative humidity, non-condensing



OPTIONS

  • Memory: Up to 4 MB of On-Board Flash and 64 MB of SDRAM
  • Processor: ADSP-BF537 provides: 600 MHz Clock Speed & 128K of internal RAM
  • Real Time: Xenomai Real-Time Extensions
  • 1-Wire®: 1-Wire® Bus Master capability



PRICING (Single Unit Pricing. Includes: Integration, Setup,Testing, & Enhanced Support)

NON-STOCK: (50 PIECE MINIMUM ORDER) - NCNR

SoM-536EM-110 ... w/ BF536 CPU, 2 MB FLASH 16 MB RAM

USD150.00

SoM-536EM-120 ... w/ BF536 CPU, 4 MB FLASH 32 MB RAM

USD170.00

SoM-536EM-130 ... w/ BF536 CPU, 4 MB FLASH 64 MB RAM

USD190.00

Operating Systems Options:

SL010-B024-000D .. Xenomai Real-Time Extensions (one time charge)

USD150.00

Carrier Board Options:

SoM-100ES-000 .... SoM Standard Carrier Board (NO MODULE)
(Includes Development CD with Schematic, IDE & Drivers)

USD150.00

SoM-100ES-030 .... Carrier with A/D, D/A & CD

USD250.00

SoM-100ES-007 .... Bare-Bones Carrier with CD

USD 95.00
