SoM-4450

Embedded Linux
Real Time Linux
MS-DOS 6.22 Embedded
Windows CE
Windows XP Embedded




Features

Specifications

Pricing

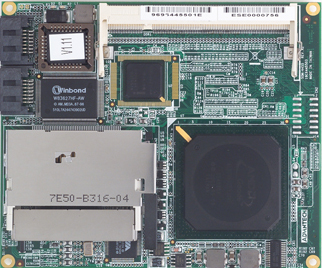

Picture of SoM-4450

Adobe PDF Document SoM-4455 Manual

SOM-4455 is low power consumption but high performance embedded ETX CPU module that enables customers to extend their system to ever more applications. This new CPU module adopts the AMD new generation Geode LX 800 series processor which offers a faster and more flexible display solution. The integrated graphic accelerator provides multiple display options: (CRT, LCD or CRT+LCD) without extra charge. For I/O, there is high speed USB 2.0 and two serial ports. Low power consumption makes it possible to save energy and make the system more reliable; all in a fanless design. All of these features make SOM-4455 the best choice for outdoor and highly reliable applications.

SOM-4455 complies with the "Green Function" standard and supports Doze, Standby and Suspend modes. The small size board (95 mm x 114 mm) uses four high capacity connectors based on the proven SOM-ETX form factor, allowing SOM-ETX modules to be easily and securely mounted onto a customized solution board or our standard SOM-DB4400 development board.

SOM-ETX is a standard CPU module with all the main components on board and connects to the customer’s own carrier board with 4 connectors. The customer can make the necessary designs on their own carrier board base. SOM-ETX not only significantly reduces development time but also keeps maximum design flexibility for satisfying different market demands.



FEATURES

  • Embedded Fanless AMD Geode LX800 processor
  • 10/100 Mbps Ethernet
  • 18-bit LCD/1 channel LVDS interface
  • AC’97 V 2.3 Audio
  • Less than 8 watts of power consumption


SPECIFICATIONS

Standard SBC Functions

  • CPU: Embedded Fanless AMD Geode™ LX800-500 MHz
  • System Memory: DDR SDRAM SODIMM, Max. 1GB
  • System Chipset: AMD Geode LX800 + CS5536
  • BIOS: AWARD 4 Mbit Flash BIOS
  • Watchdog Timer: 1-255 Sec, System reset
  • SSD: Supports CompactFlash® card

Standard I/O

  • Enhanced IDE Interface: One EIDE Channels (Ultra DMA 100)
  • Sata Interface: 2 SATA-100 Channels for two SATA devices
  • Floppy Disk Drive Interface: 1 Floppy channel (shared with LPT)
  • Serial Ports: 2 TTL Level Serial ports
  • USB Ports: 4 USB 2.0 compliant ports
  • GPIO: 1-bit GPIO, 2-bit GPE

VGA/Flat-Panel Interface

  • Chipset: AMD Geode LX800 integrated 2D graphic controller
  • Memory Size: Share system memory up to 32 MB
  • Resolution CRT Mode: 1024x768 @ 24 bpp (85Hz)
  • LCD/Simultaneous Mode: 1024 x 768 @ 18 bpp (60 Hz)
  • LCD Interface: 18-bit TTL
  • LVDS: 18/24-bit

Ethernet Interface

  • Chipset: RTL8100CL-LF
  • Interface: IEEE 802.3u 100Base-T Standard

Audio Function

  • Controller: AC’97 audio codec for Line out, Line in and MIC in.

Bus Interface

  • PCI/ISA

Mechanical and Environmental

  • Dimensions: (LxW) 95x114 mm ( 3.7" x 4.5" )
  • Power Supply Voltage: +5V
  • Power Requirements: Max: 5V @ 2.2A / Typical: 5V @ 1.5A
  • Operating Temperature: 0~60° C (32~140° F), fanless operation
  • Operating Humidity: 0%~90% relative humidity, non-condensing


PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

SOM-4455R .... AMD LX800 500 MHz SOM-ETX MODULE w/ TFT LCD

USD194.00

SOM-4455Rl ... AMD LX800 500 MHZ SOM-ETX MODULE w/ LVDS LCD

USD200.00
SOM-DB4400 .. ETX Development Carrier Board
USD150.00

(Flash Disk and RAM not included)

Available Options:
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
LCDs and Touchscreens
Custom and Semi-custom Engineering Services
