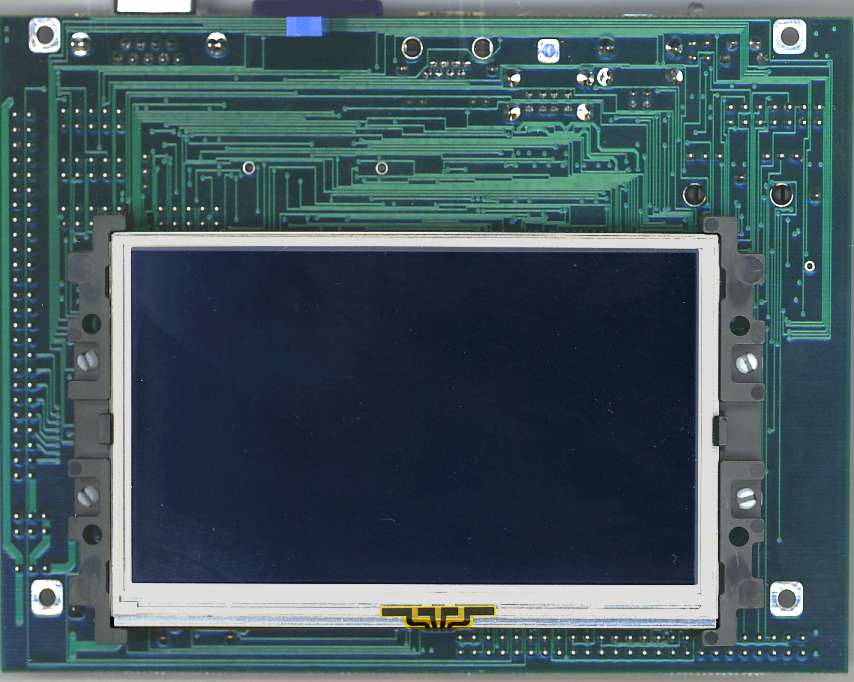

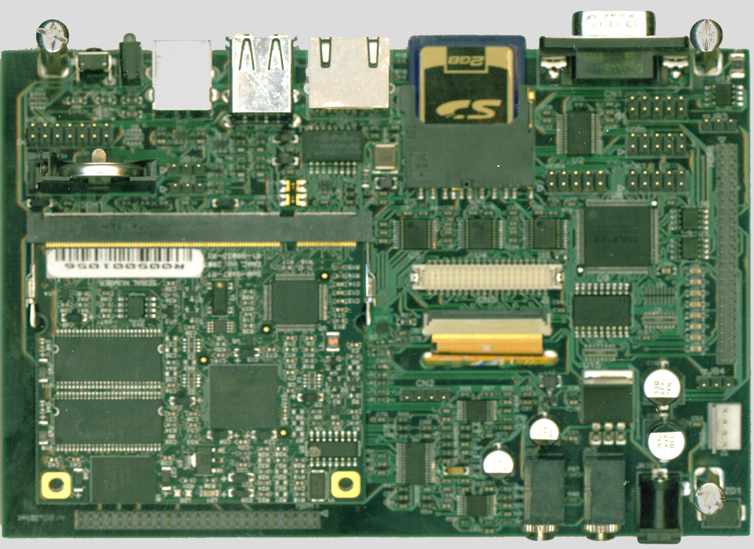

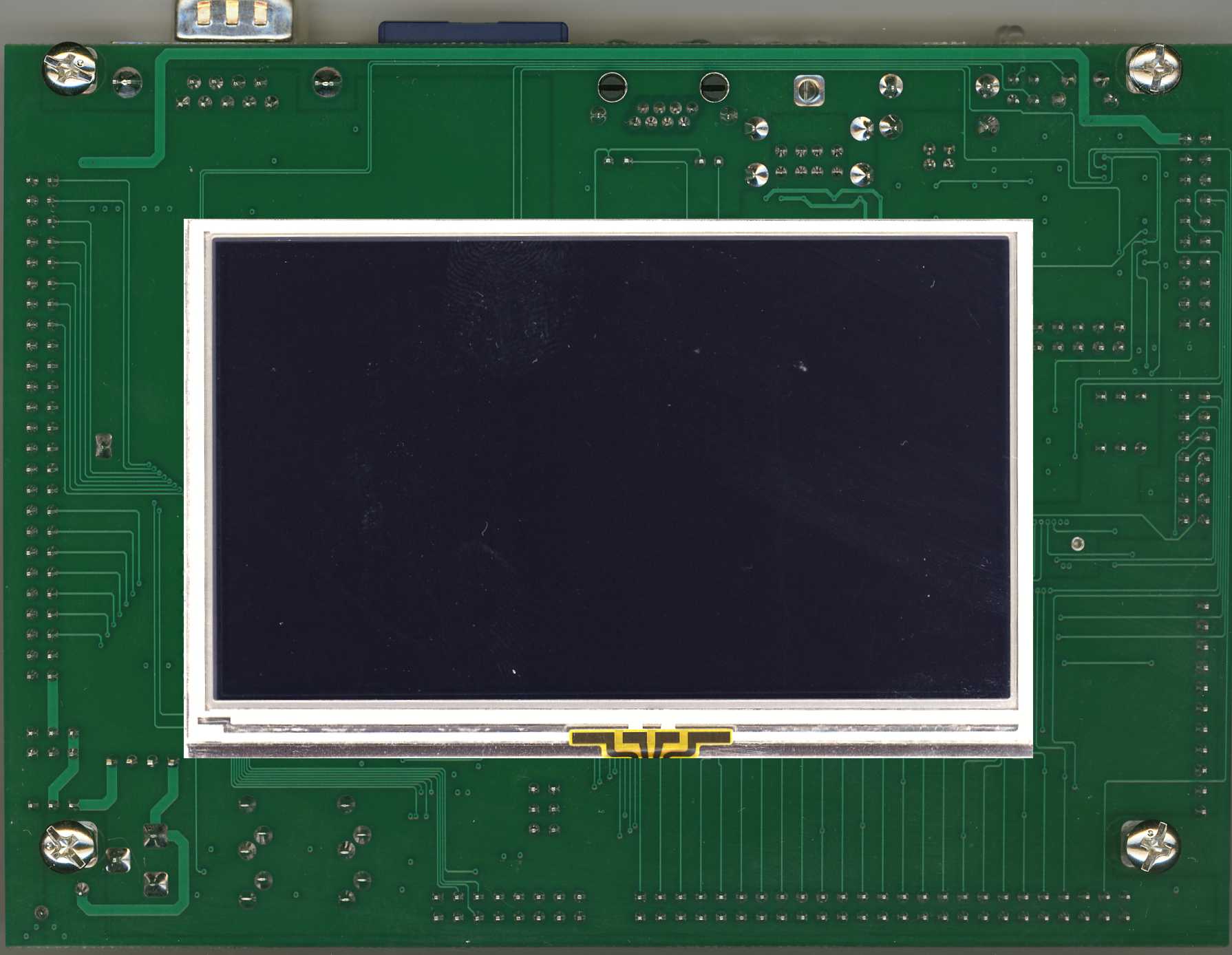

The SoM-200ES provides access to all the SoM's I/O through on-board connectors as well as a number of additional I/O expansion blocks such as Video, Touchscreen. Digital I/O, Audio CODEC, and MMC/SD flash disk. Full schematics of the SoM-200ES are provided giving the user a solid base with which to design their own SoM Carrier. Schematics of the SoM-200ES are included on the CD provided with the Carrier board.

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the SoM-200ES when coupled with a SoM-9307 SODIMM SoM makes for a powerful User Interface Contol System with USB and Ethernet capabilities. This allows the user to gather data and respond with Control commands via the Internet. An Enclosure and Power Supply will be available options for the SoM-200ES.

When a unique custom board is required, the amount of design work required is greatly minimized by the SoM approach. The custom Carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O, connectors and dimensional aspects required for the application.

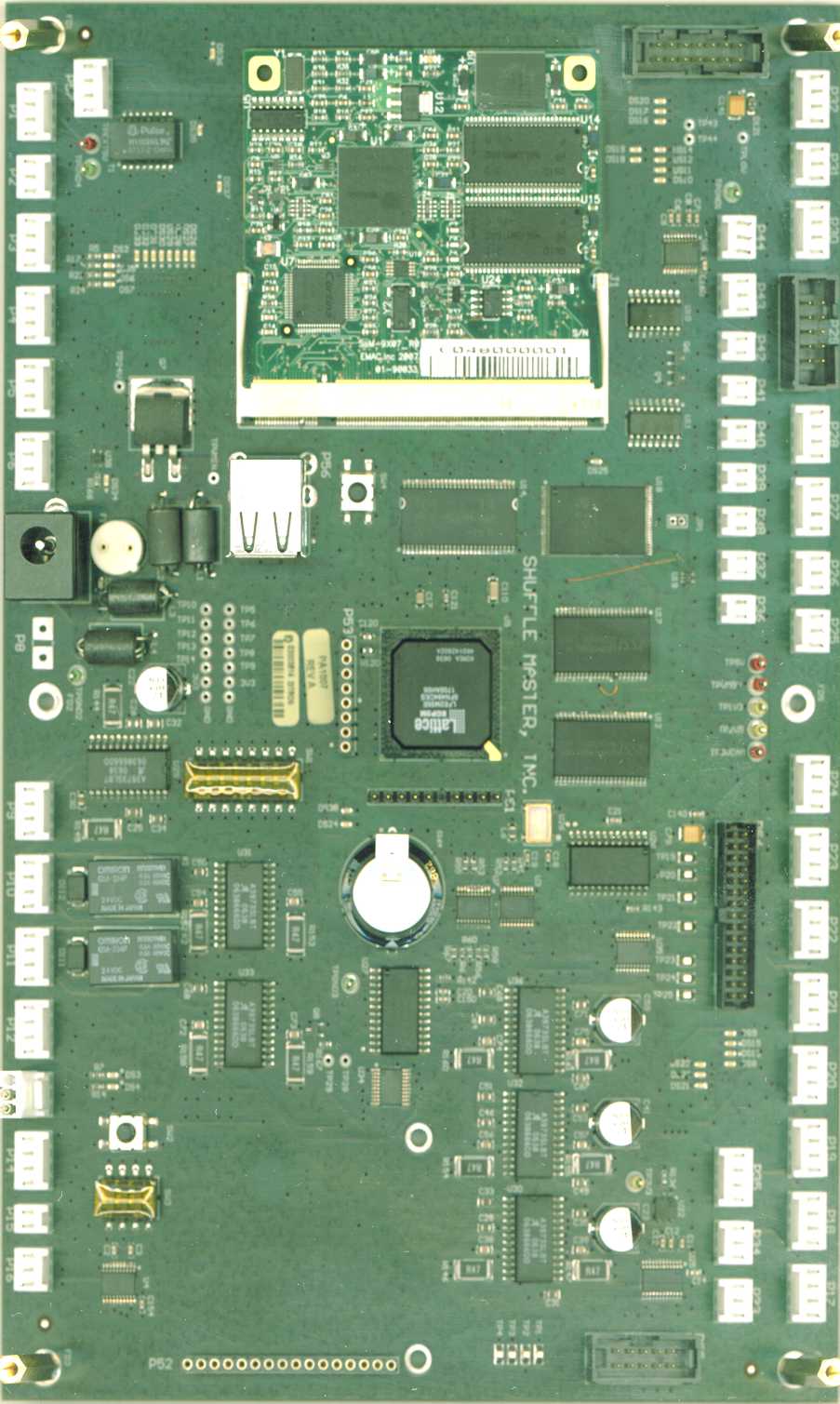

In situations where a custom Carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized (see Custom Carrier example on right). Using COS the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.

SoM Benefits

STANDARD FEATURES

• Small, Half-EBX form factor (4.0" x 5.75")
• 10/100 BaseT Ethernet with onboard Magnetics and RJ45
• 4 serial RS232 ports and 1 RS232/485 port
• 24, General Purpose digital (PLD) I/O lines
  • 8 Digital Input lines
  • 8 Digital Output lines with 20 ma. drive
  • 8 High Drive Digital Output lines with status LEDs (500 ma. sink)
• 25 SoM Specific lines
• Resistive Touhscreen interface
• Graphic LCD interface with WQVGA TFT LCD with Touch
• Battery for nonvolatile RAM and Real Time Clock
• MMC/SD Flash Card Socket
• Dual USB Host Jack
• USB Device Jack
• CAN Port
• System Reset button
• Power and Flash Drive Status LEDs

ON-BOARD OPTIONS FOR STANDARD CARRIER

• I2S Audio Stereo CODEC with line-in & line-out

BARE-BONE FEATURES

• Small, Half-EBX form factor (4.0" x 5.75")
• 10/100 BaseT Ethernet with onboard Magnetics and RJ45 Jack
• Battery for nonvolatile RAM and Real Time Clock
• LCD interface and Touchscreen connectors
• Dual USB Host Jack
• USB Device Jack
• MMC/SD Flash Card Socket
• 2 serial RS232 ports
• System Reset button

OTHER OPTIONS

• PS-50A Power Supply: A 50 Watt switching power supply that has an AC input of 100 to 240 Volts and DC outputs of +5 Volts and +12 Volts. The PS-50A is especially designed to operate with the MBPC-200 MicroBox chassis.
• Brick Power Supply: A 30 Watt switching power supply that has an AC input of 120 Volts and DC outputs of +5 Volts and +12 Volts. This power supply can be used with the MBPC-200 MicroBox chassis.
• Wall-Mount Power Supply: An inexpensive 5 Volt DC supply capable of 500 ma. of current.

SPECIFICATIONS

Mechanical and Environmental

• Dimensions: Half-EBX form factor with dimensions of 4.0" x 5.75"
• Power Requirements: Typical 5 Volts @ 2.0A including SoM, USB & LCD
  (Note: up to 1.0A is required if USB Host is providing power to USB devices.)
• Operating Temperature: 0~60° C (32~140° F), fanless operation
• Operating Humidity: 0%~90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

SoM-200ES-007 .. Bare-BOnes SoM-200ES Carrier Board with CD

SoM-200ES-000 .. SoM-200ES StAndARD Carrier Board with Video, & CD

SoM-200ES-001 .. Standard Carrier with Audio COdec, Video, & CD

PS-50A ......... 50W, AC input +5/+12 DC Power Supply

PER-PWR-00041 .. Brick 30W PS w/ HDD & FDD connector +5/+12 V_DC

PER-PWR-00032 .. 5 V @ 2.5A PS (110 V @ 60 Hz US)

PER-PWR-00033 .. 5 V @ 2.5A PS (220 V @ 50 Hz EUROPE)

Additional Options:
Enclosures and Power Supplies
Terminal Boards
Character LCDs and Keypads
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
