SOM-150ES System on Module Carrier

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

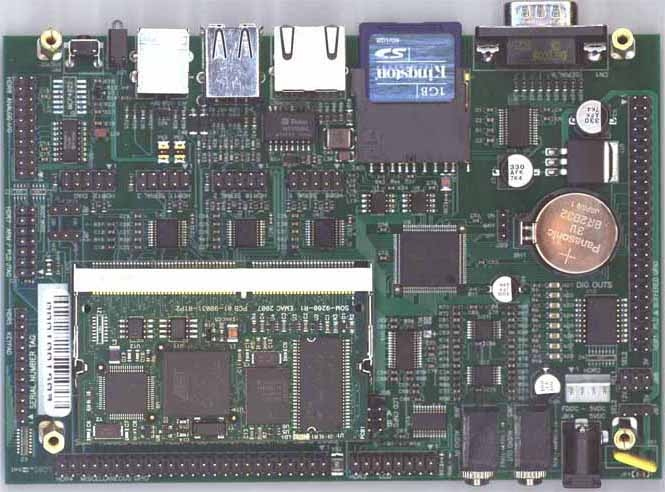

SoM-100ES with SODIMM SoM-400EM Installed

SoM-150ES shown with SoM-9260EM Installed

SoM-150ES Manual v1.0

The SoM-150ES is versatile SoM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all EMAC 144-pin SODIMM type SoMs. Note: The SoM-150 is specifically designed for SoMs with USB capability. While other modules will work in the SoM-150 carrier, using the SoM-100ES would be a better fit.

The SoM-150ES provides access to all the SoM's I/O through on-board connectors as well as a number of additional I/O expansion blocks such as A/D, D/A, Digital I/O, Audio CODEC, and MMC/SD flash disk. Full schematics of the SoM-150ES are provided giving the user a solid base with which to design their own SoM Carrier. Schematics of the SoM-150ES are included on the CD provided with the Carrier board.

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the SoM-150ES when coupled with a SoM-9260 SODIMM SoM makes for a powerful Remote Data Acquisition and Control system with USB and Ethernet capabilities. This allows the user to gather data and respond with Control commands via the Internet. An Enclosure and Power Supply will be available options for the SoM-150ES.

When a unique custom board is required for an application, the amount of design work required is greatly minimized by the SoM approach. The custom Carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O, connectors and dimensional aspects required for the application.

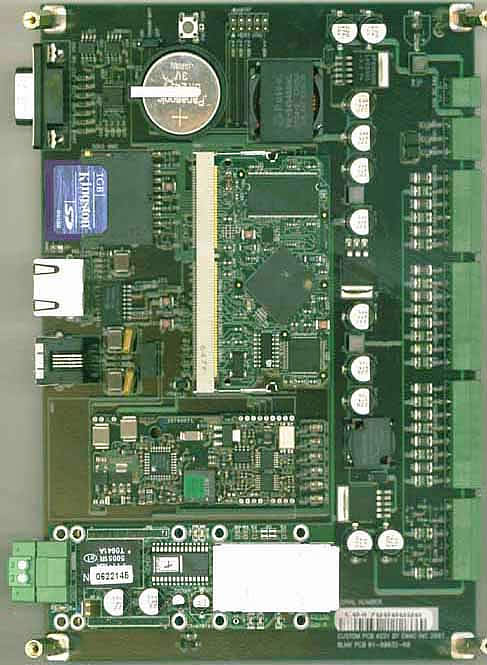

In situations where a custom Carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized (see Custom Carrier example on right). Using COS the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.

SoM Benefits

Faster time to market
Cost savings
Reduced risk
Scalable CPU choices
Decreased customer design requirements
Small footprint

STANDARD FEATURES

Small, Half-EBX form factor (4.0" x 5.75")
10/100 BaseT Ethernet with onboard Magnetics and RJ45
4 serial RS232 ports and 1 RS232/485 port
24, General Purpose digital (PLD) I/O lines
- 8 Digital Input lines
- 8 Digital Output lines with 20 ma. drive
- 8 High Drive Digital Output lines with status LEDs (500 ma. sink)
24 Digital general purpose SoM I/O lines
24 key, keypad interface
Character LCD interface
Battery for nonvolatile RAM and Real Time Clock
MMC/SD Flash Card Socket
Dual USB Host Jack
USB Device Jack
System Reset button
Power and Flash Drive Status LEDs

ON-BOARD OPTIONS FOR STANDARD CARRIER

8 channel 12-bit A/D single ended / 4 channel psuedo-differential (0 - 2.5V input)
2 channel 12-bit D/A (0 - 2.5V output)
I2S Audio Stereo CODEC with line-in & line-out

BARE-BONE FEATURES

Small, Half-EBX form factor (4.0" x 5.75")
10/100 BaseT Ethernet with onboard Magnetics and RJ45 Jack
Battery for nonvolatile RAM and Real Time Clock
Dual USB Host Jack
USB Device Jack
MMC/SD Flash Card Socket
2 serial RS232 ports
System Reset button

OTHER OPTIONS

MBPC-200 Enclosure: This MicroBox metal chassis is an ideal housing for the SoM-150ES and SoM.
PS-50A Power Supply: A 50 Watt switching power supply that has an AC input of 100 to 240 Volts and DC outputs of +5 Volts and +12 Volts. The PS-50A is especially designed to operate with the MBPC-200 MicroBox chassis.
Brick Power Supply: A 30 Watt switching power supply that has an AC input of 120 Volts and DC outputs of +5 Volts and +12 Volts. This power supply can be used with the MBPC-200 MicroBox chassis.
Wall-Mount Power Supply: An inexpensive 5 Volt DC supply capable of 500 ma. of current.

SPECIFICATIONS

Mechanical and Environmental

Dimensions: Half-EBX form factor with dimensions of 4.0" x 5.75"
Power Requirements: Typical 5 Volts @ 1.5A including SoM & USB
(Note: up to 1.0A is required if USB Host is providing power to USB devices.)
Operating Temperature: 0~70° C (32~158° F), fanless operation
Operating Humidity: 0%~90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

SoM-150ES-007 .. Bare-BOnes SoM-150ES Carrier Board with CD	100.00
SoM-150ES-000 .. SoM-150ES StAndARD Carrier Board with CD	150.00
SoM-150ES-001 .. Standard Carrier with Audio COdec, & CD	180.00
SoM-150ES-030 .. Standard Carrier with A/D, D/A, & CD	190.00
EMAC can build the SoM-150ES with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required.	Call

Option Pricing

MBPC-200 ....... Half-EBX MicroBox Chassis	75.00
PS-50A ......... 50W, AC input +5/+12 DC Power Supply	100.00
PER-PWR-00041 .. Brick 30W PS w/ HDD & FDD connector +5/+12 V_DC	50.00
PER-PWR-00032 .. 5 V @ 2.5A PS (110 V @ 60 Hz US)	20.00
PER-PWR-00033 .. 5 V @ 2.5A PS (220 V @ 50 Hz EUROPE)	25.00

KEYPADS

E020-25 ... 12 KEY MEM TELEPHONE STYLE KEYPAD	25.00
E020-21 ... 16 KEY MEMBRANE HEX STYLE KEYPAD	30.00

DISPLAYS

E020-30 ... 20 CHAR. X 2 LINE LCD DISPLAY	49.00
E020-31 ... 20 CHAR. X 2 LINE LCD BACKLIT DISPLAY	65.00
E020-34 ... 20 CHAR. X 2 LINE VF Display	125.00
E020-32 ... 20 CHAR. x 4 LINE LCD	74.00
E020-33 ... 20 CHAR. x 4 LINE Backlit LCD	86.00

Additional Options:
Enclosures and Power Supplies
Terminal Boards
Character LCDs and Keypads
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
