SOM-DB5700

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

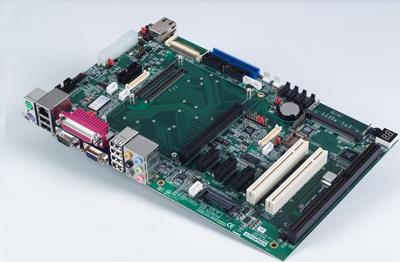

The SOM-DB5700 is versatile SOM Carrier/Socket board ideal for evaluation and early development work. This Carrier is designed to work with all COM Express type SOMs. The SOM-DB5700 provides access to all the SOM's I/O through on-board connectors.

Although a good deal of customers will want a Carrier that is unique and is designed specifically for their application, the DB5700 when coupled with a COM Express SOM makes for a nice ATX compatible embedded PC.

When a unique custom Carrier board is required, the amount of design work required is greatly minimized by the SOM approach. The custom Carrier designer does not have to worry about the processor, memory, and standard I/O functions and can concentrate on the I/O and dimensional aspects required for the application.

In situations where a custom Carrier is required but the customer does not have the capability to design such a board in-house, EMAC's Custom to Order Services (COS) can be utilized (see Custom Carrier example on right). Using COS, the customer can select from a library of standard I/O blocks. These blocks can be put together quickly into a form-factor of the customer's choosing, providing prototypes in as little as 30 days.

SOM Benefits

Faster time to market
Cost savings
Reduced risk
Scalable CPU choices
Decreased customer design requirements
Small footprint

FEATURES

Standard ATX form factor (7.5" x 12.0")
1 Giga LAN or 10/100 Base T with RJ-45 connector
1 serial RS232 port and 1 RS232/422/485 port
Keyboard/Mouse connectors
8 USB 2.0
2 PCI Slots
4 PCIe Slots
1 Express Slot
1 MiniPCI and 1 ISA Slots
DB15 Video connector and LCD connector
High Definition Audio
4 SATA and 1 IDE connectors
ATX power connector

SPECIFICATIONS

Mechanical and Environmental

Dimensions: ATX form factor with dimensions of 7.5" x 12.0"
Voltage Requirements: Typical 3.3 & 5 Volts (12 Volts may be required depending on the SOM being used)
Current Requirements: The SOM-DB5700 requires very little current. (Current requirements are basically that of the SOM being used)
Operating Temperature: 0~60° C (32~140° F), fanless operation
Operating Humidity: 0%~90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

SOM-DB5700 .... COM EXPRESS DEVELOPMENT CARRIER BOARD	303.00
SOM-DB5700g ... COM Express Development Carrier Board WITH gLAN	315.00

Available Options:
Flash Disk Memory
Operating Systems
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
