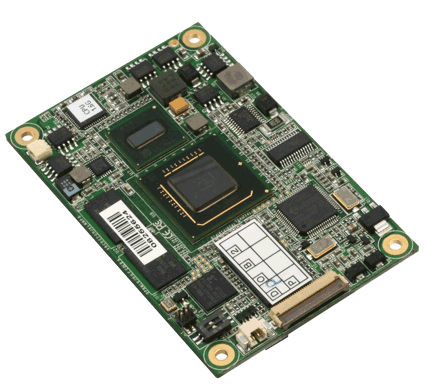

The NanoCOM-U15, and its accompanying carrier board-ECB-951D, adopts Intel Atom Z530/Z510 processor and Intel System Controller Hub US15W chipset, offering high speed PCI-Express bus interface and serial ATA for your high performance applications requiring high-speed and greater stability. The COM Express CPU module offers flexibility and time-to-market advantages over a fully customized platform.

NanoCOM-U15 supports up to 24-bit single channel LVDS interface and supports onboard DDRII 533 memory chip up to 1GB. A high definition audio interface is available to connect to an audio codec on the carrier board. Moreover, one onboard PATA SSD (Master device) and one SATAII interfaces are featured giving the user flexibility in storage choices.

FEATURES

Intel® Atom™ Z530/Z510 Processor
Onboard DDR2 533 Memory Chip, Max. 1GB
Intel® System Controller Hub US15W
Supports 8 USB 2.0 ports
Gigabit Ethernet
High Defi nition Audio Interface
PATA SSD (Up to 4GB) x 1, SATA II x 1
Nano Module Size, 84mm x 55mm

SPECIFICATIONS

Standard SBC Functions

CPU: Intel Atom processor Z510 1.1GHz, Z530 1.6GHz 400/533
System Memory: Onboard DDRII 533 memory chip, Max. 1GB
System Chipset: Intel System Controller Hub US15W
BIOS: Award BIOS v8.0, TSOP type, 1MB ROM
Watchdog Timer: Fintek F75111

Standard I/O

GPIO: Up to 4 in or 4 out: Multiplexed with 4-bit SDIO
USB Ports: 8 x USB 2.0 compliant ports
Audio: High definition audio interface

VGA/Flat-Panel Interface

Chipset: Intel SCH US15W integrated
Memory Size: Share system memory up to 256MB
Display type: Supports LCD/DVI or LCD/LCD (via SDVO)
Dual-view Displays
Supports 24-bit single channel LVDS
Display mode:
Up to 1366 x 768 @ 85Hz for LVDS
Up to 1280 x 1024 @ 85Hz for SDVO
SDVO: connector x 1

Ethernet Interface

Chipset: Intel® 82574L
Speed: 10/100/1000Base-TX Ethernet

Audio

High definition audio interface

Bus Interface

PCI-Express [x1] x 1
LPC bus x 1
SMBus x 1

Mechanical and Environmental

Dimensions: (L x W) 84mm x 55mm (3.31” x 2.17”)
Power Supply Voltage: +12 V, + V5_SB
Power Requirements :Wide DC Input Range, +4.75V to +14.7V
Operating Temperature: 32~140° F (0~60° C)
Operating Humidity: 0%~90% relative humidity, non-condensing

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

COM-U15-A20 ..... Atom Z510 1.1GHz,US15W,DDRII 1GB,GbE,SATA,USB2.0	291.00
COM-U15-A20-01 ...ATOM Z510 1.1GHz,US15W,DDRII 1GB,GbE,4GB SSD,USB2.0	375.00
COM-U15-A20-02 .. Atom Z530 1.6GHz,US15W,DDRII 1GB,GbE,SATA,USB2.0	371.00
COM-U15-A20-03 .. Atom Z530 1.6GHz,US15W,DDRII 1GB,GbE,4GB SSD,USB2.0.	455.00

Carrier Board

SOM-DB5700 ... COM Express Development Board

303.00

Available Options:
System Memory (RAM)
Hard Drives
Flash Memory
Operating Systems
LCDs and TouchScreens
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
