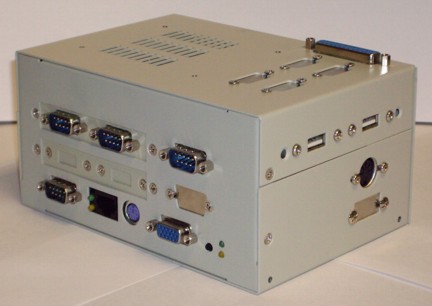

The EMAC Server-In-a-Box (SIB) and Firewall-In-a-Box (FIB), are low cost, small footprint, yet powerful Server. These SIBs utilizes the AMD Geode LX800, 500MHz fanless processor allowing it to run Linux, WinCE and XPE Operating Systems. Like all SIBs, the SIB and FIB have no moving parts and feature a rugged enclosure design making it an ideal choice for most industrial applications. The SIB and FIB are just as comfortable in a basement wiring closet as on a desktop.

Purchase an EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

SIB FEATURES

Hardware

• AMD Geode LX800-500 Mhz based SBC
• 256 MB DDR RAM Expandable to 1GB
• 4GB Compact Flash Drive Expandable to over 32GB
• Analog SVGA Video with 2D/3D graphic & MPEG4 decoding
• 10/100 Base-T Ethernet
• Three RS-232 & One RS-232/485 Serial Port
• One Parallel port supports SPP/EPP/ECP
• Four USB Host ports, USB 2.0 compliant
• Eight General Purpose I/O lines configurable as Input or Output
• ISA bus expansion with onboard PC/104 connector
• Extremely Reliable (No Moving Parts)
• 30 Watt Seperate Brick Power Supply & Enclosure

FIB FEATURES

Hardware

• AMD Geode LX800-500 Mhz based SBC
• 512  MB DDR RAM Expandable to 1GB
• 4GB Compact Flash Drive Expandable to over 32GB
• Analog SVGA Video with 2D/3D graphic & MPEG4 decoding
• Dual 10/100 Base-T Ethernet
• Three RS-232 & One RS-232/485 Serial Port
• One Parallel port supports SPP/EPP/ECP
• Two USB Host ports, USB 2.0 compliant
• Eight General Purpose I/O lines configurable as Input or Output
• ISA bus expansion with onboard PC/104 connector
• Extremely Reliable (No Moving Parts)
• 30 Watt Seperate Brick Power Supply & Enclosure


Options

• Two additional USB 2.0 Host ports
• USB Wireless 802.11g LAN
• Internal 2.5" hard drive
• LVDS LCD video output
• Wide Temperature version
• Integrated 50 Watt Power Supply
• Almost any PC/104 expansion module.


Mechanical and Environmental

• Dimensions: 70 mm x 166 mm x 114 mm (2.75" x 6.53" x 4.45")
• Weight 2.0 lbs.
• Mounting: Desk/Wall mount
• Power Supply Voltage: +5 V ± 5%
• Power Requirements:
  • Maximum: +5 V @ 1.2 A, +12 V @ 0.23A
  • Typical: +5 V @ 0.6 A, +12 V @ 0.03A
• Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
  Wide Temp Version: -4° to 176° F (-20° to 80° C)
• Operating Humidity: 10% ~ 90% Relative Humidity, non condensing

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

SIB-00010 .... Standard Linux SIB w/30W PS

 470.00

SIB-00210 .... Standard XPE SIB w/30W PS

 620.00

SIB-00410 .... Standard WinCE 6.0 SIB w/30W PS

 495.00

SIB-02010 .... Standard Linux FIB w/30W PS

 515.00

SIB-02210 .... Standard XPE FIB w/30W PS

 675.00

SIB-02410 .... Standard WinCE 6.0 FIB w/30W PS

 575.00
