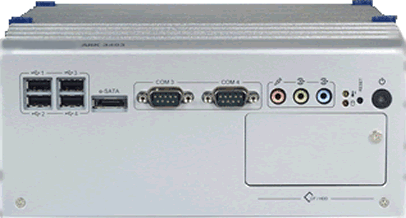

Rugged SIB Hardware Manual

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

FEATURES

Hardware

• Intel® Atom™ D510/D525 dual core up to 1.8 GHz fanless embedded IPC
• 2 GB 200p DDR2
• 4GB CompactFlash™ Flash Disk Expandable to over 32 GB
• Supports VGA and LVDS dual display and support for widescreens with high resolution
• Dual Gigabit Ethernet
• 2 RS-232
• 2 RS-232/422/485
• 6 Universal Serial Bus (USB) 2.0 Host ports
• 1 Slot PCI and 1 Slot PCIe x1
• 2 Mini PCIe
• 150W Power Adapter

Mechanical and Environmental

• Dimensions: 8.66” (W) x 4.04” (H) x 7.87” (D) (220 mm x 102.5 mm x 200 mm)
• Weight 8.8 lbs.
• Construction:Aluminum housing
• Mounting: Desk/Wall mount
• Power Requirements: 12 ~ 24 VDC
• Operating Temperature:With extend temperature CompactFlash disk: -10 ~ 55° C
• Operating Humidity: 95% @ 40° C, non condensing
• Vibration:With CompactFlash disk: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 Oct./min, 1 hr/axis.
• Shock:With CompactFlash disk: 50 G, IEC 60068-2-27, half sine, 11 ms duration
• EMC: CE/FCC class A, CCC, BSMI
• Safety: UL, CCC, BSMI

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

SIB-04300-1 ...... Atom D510 1.66 Ghz SIB, 2GB DDR2 RAM, 4 GB CF

 767.00

SIB-04304-1 ...... Atom D525 1.8 Ghz SIB, 2GB DDR2 RAM, 4 GB CF

 819.00

Operating Systems (Does not include price of storage media.)
