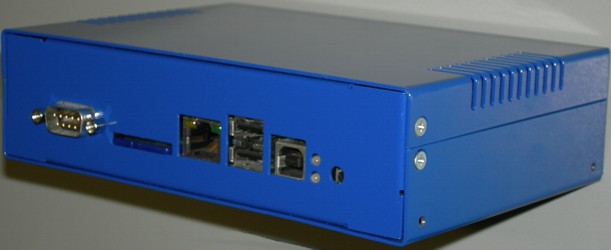

Front

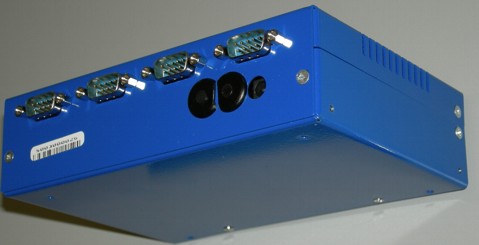

Back

Features

Pricing

LPSIB Manual

The EMAC Low-Power Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The Low-Power SIB utilizes the Atmel ARM9 AT91SAM9G20, 400MHz fanless processor allowing it to run Linux and WinCE Operating Systems. Like all SIBs, the Low-Power SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Low-Power SIB is just as comfortable in a basement wiring closet as it is on a desktop.

The low power requirements of the LP-SIB also means low heat generation and lends itself ideal for battery operated or backed-up systems. Right out of the box, the LP-SIB is configured for Ethernet, serial IP, serial terminal, and raw serial connections. Other devices, including PPP modem links, may be added and configured by the user.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.

FEATURES

Standard Low Power SIB

Hardware

Atmel ARM9 Jazelle AT91SAM9G20 400Mhz Processor
10/100BaseT Ethernet
5 Serial RS232 ports
2 USB 2.0 (Full Speed) Host ports
1 USB 2.0 (Full Speed) Device port
32 MB of SDRAM
256 MB of NAND Flash
128K Bytes of Serial Flash
Battery backed Real Time Clock
SD/MMC Flash Card Interface
Timer/Counters and Pulse Width Modulation (PWM) ports
4 Channel 10-bit Analog-to-Digital converter
Typical power requirement less than 1 Watt

Industrial Temperature Range

Extremely Reliable (No Moving Parts)

Wall-Mount Power Supply

Hardware Options

64 MB RAM & 1 GB Flash

Auto RS422/485 exchange of RS232 port

I2S Audio port with Line-In & Line-Out

24 key, Keypad interface

Character LCD interface

8 channel 12-bit A/D

2 channel 12-bit D/A

24, General Purpose digital I/O lines

8 digital input lines
8 digital output lines
8 High Drive digital output lines (500 ma. sink)

Additional RAM & Flash Capacity

USB 802.11g Wireless

Mechanical and Environmental

Dimensions: 1.55"x6.53"x4.45"
Weight 1.5 lbs.
Mounting: Desk/Wall mount

Power Requirements: 5Vdc (Linux)

Typical 5.0 Volts @ ~280 mA.
Max current draw during boot process: ~355 mA.
Constant busy loop: ~290 mA.
Constant busy loop with Ethernet PHY disabled : ~235 mA.
Idle system: ~255 mA.
Idle system with Ethernet PHY disabled : ~190 mA.
APM sleep mode using slow clock with Ethernet PHY disabled : ~40 mA.
APM sleep mode using slow clock with Ethernet PHY enabled : ~140 mA.

Operating Temperature: -40 ~ 85° C (-40 ~ 185 ° F)
Operating Humidity: 10% ~ 90% Relative Humidity, non condensing

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

SIB-01000 ... LP-SIB 32MB w/ AC Power Supply	360.00
SIB-01010 ... LP-SIB 64MB w/ AC Power Supply	385.00
EMAC can build the LP-SIB with any option mix you require. Build-To-Order can offer a significant cost savings when only a certain subset of options are needed! 25 piece minimum required for certain subset options.	CALL
Operating Systems Options:
SL013-AON-20060 .. Embedded Linux standard ARM build	Free
SC600-000-0010D .. Win CE 6.0 Standard Arm Build & License	25

Product pricing, features, and specifications are subject to change without notice.
