Windows NT Embedded Server-In-A-Box

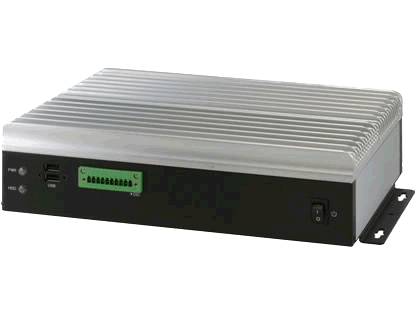

Front

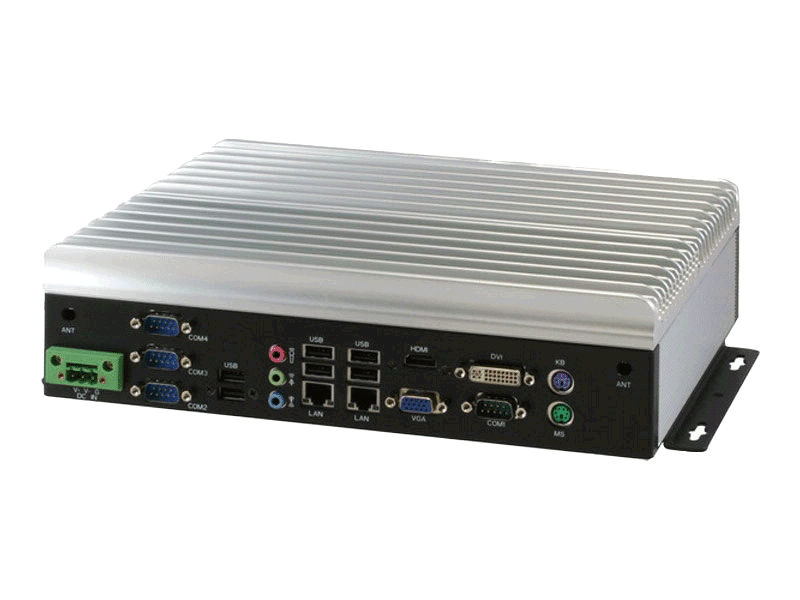

Back



i-SIB

The i-SIB adopts the Intel® Core™ i7/i5 Processor with the Intel® QM57 chipset. System memory features two DDR3 800/1066 SODIMM sockets supporting up to 8 GB. It offers two 10/100/1000Base-TX Ethernet LAN RJ-45 ports, four COM ports and eight USB2.0 ports. The i-SIB uses the Intel® Gen 6.0 integrated Graphics Engine and supports dual view by VGA, DVI, and HDMI.The i-SIB comes comes ready to run with the Operating System installed on a Compact Flash disk.

Purchase an EMAC SIB and you should be up, running and building applications the first day. The i-SIB's combination of Fanless, High Performance graphics and an abundance of I/O make the i-SIB the ideal solution for Digital Signage, Kiosk, or any other graphics intensive embedded application.

Click Here for more information on EMAC's Linux for SIBs.



FEATURES

  • Intel® 32/45nm Core™ i7/i5/i3 rPGA988 CPUs With Graphic& Memory Controller
  • Fanless Design CPU TDP < 35W, Intel® Core™ i7-620M and i5-520M
  • 204-Pin Dual-Channel DDR3 800/1066 MHz SODIMM x 2 (UpTo 8 GB)
  • Intel® Gen 6.0 Integrated Graphics Engine Supports MultipleDisplays with VGA, DVI, HDMI
  • Intel® 10/100/1000Base-TX x 2
  • Wide DC Power Input : 10V DC ~ 30V DC

Hardware

  • Intel® Core™i7/i5/i3 w/ Graphic & Memory Controller
  • Dual 10/100/1000Base-TX
  • 3 RS232 and 1 RS232/422/485 ports
  • 8 USB 2.0 (Full Speed) Host ports
  • Audio line-in, line-out, mic-in
  • 4 GB DDR3 SODIMM Expandable to 8GB
  • Supports Dual Display with VGA, DVI, HDMI
  • 8-bit GPIO
  • 4GB Industrial CF Card Expandable to over 32GB
  • Watchdog timer
  • Extremely Reliable (No Moving Parts)

Options

  • Internal Wireless Mini-PCIe 802.11b/g card
  • Additional Compact Flash capacity
  • 2.5" SATA HDD
  • Power Supply 12V@ 7A, 84W

Mechanical and Environmental

  • Dimensions:11.22" x 8.27" x 2.95" (285mm x 210mm x 75mm)
  • Weight 11.16 lb (5.1 kg)
  • Mounting: Desk/Wall mount
  • Operating Temperature: 32°F ~ 113°F (0°C ~ 45°C)
  • Wide DC Power Input: 10V DC ~ 30V DC
  • Power Consumption: 70W
  • Power draw at 12V: 5.83A

Operating System Compatibility

  • Linux & RTAI Real-Time Linux
  • Microsoft Windows XP, WES09


PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

SIB-00100... i-SIB w/ i5 CPU, 4GB DDR3, 4 COM, 8 usb, 2 GBe, 4GB CF

USD1516.00

SIB-00110... i-SIB w/ i7 CPU, 4GB DDR3, 4 COM, 8 usb, 2 GBe, 4GB CF

USD1647.00

Options:

PER-PWR-00100... i-SIB 84W, AC.100/240V.12V/7A Power Adapter

USD52.00

CAB-80-020...... i-SIB US Cord

USD8.00

Operating Systems Options:

SL040-XON-00010 .. EMAC OE Linux

Free

SX300-000-0000D .. Windows EMB STD 2009 License

USD125.00
