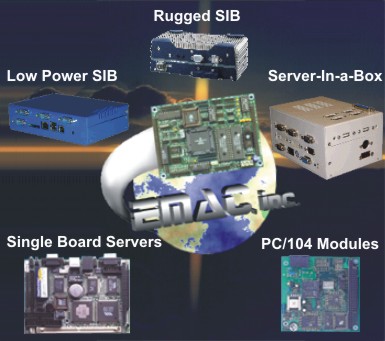

EMAC's Server-In-a-Box line of Embedded Servers are Single Board Computers built into small, rugged, Industrial strength Servers. These Servers are just as comfortable in the back of a closet as they are on a desktop while providing only the requred portions of the functionality from a conventional full sized server.

In order to toughen these servers EMAC utilizes a Flash Disk in place of a hard drive and removes the Fans found in other servers, providing a server with no moving parts. On the software side EMAC supports the most popular Embedded Operating Systems (OS), Embedded Linux, Real Time Linux, WinCE and XP Embedded. Furthermore EMAC can customize the OS build to meet your application needs if required. This custom build can be archived under a unique part number guaranteeing that you receive the correct build each time you order.

If application does not require a chassis/case or power supply you can utilize one of EMAC's Single Board Servers. These Single Board Servers can utilize virtually any Single Board Computer that EMAC sells. Just select an SBC, add flash, and select an OS along with any extra components you might need.

Server-In-a-Box (SIB) Selection Guide
SIB Model	CPU	Flash/ RAM	Parallel/ Serial Ports	USB/ LAN	Video	OS	Exp. Bus Type	Dimension HxWxD
Standard	Via Eden or Atom 500MHz/ 1GHz	4 GB/ 512MB	2 RS232	4 USB 2.0 Gigabit Ethernet	CRT/LCD 128MB	Linux XPE WES7	Mini PCIe	1.7"x4.7"x4.9"
Compact	Vortex DX 1GHz	128MB/ 256MB	2 RS232	3 USB 2.0 10/100 Ethernet	CRT/LCD 32MB	Linux WinCE 6.0 XPE/WES	Mini PCI	1.38"x4.53"x4.53"
Deluxe	Intel Atom N270 1.6GHz	4GB/ 1GB	1 Parallel SPP/EPP/ECP 5 RS232 1 RS232/485	8 USB 2.0 Gigabit Dual Ethernet	Dual CRT/TV	Linux XPE/WES	PCI	3.5"x10.7"x9.4"
Low-Power	Atmel ARM9 400MHz	256MB/ 32MB	No Parallel 4 RS232 1 RS232/485	2 USB 2.0 1 USB Dev 10/100 Ethernet	No Video	Linux WinCE 6.0	None	1.55"x6.53"x4.45"
SIB/104	AMD GEODE LX 800 500MHz	4GB/ 512MB	1 Parallel SPP/EPP/ECP 3 RS232 1 RS232/485	4 USB 2.0 10/100 Dual Ethernet	CRT/LCD LVDS 32MB	Linux WinCE 6.0 XPE/WES	PC/104	2.75"x6.53"x4.45"
Rugged	Intel Atom N270 1.6GHz	4GB/ 512MB	2 RS232	4 USB 2.0 Gigabit Dual Ethernet	Dual CRT/DVI	Linux XPE/WES	None	3.4"x9.5"x4.2"
Vortex	Vortex86DX 800MHz	4GB/ 512MB	1 Parallel 5 RS232	3 USB 2.0 10/100 Ethernet	CRT/LCD LVDS 32MB	Linux Win CE 6.0 XPE/WES	PC/104+	2.0" x 10.0" x 5.75"
i-SIB	Intel i7/i5 2.66/2.4GHz	8GB/ 512MB	No Parallel 3 RS232 1 RS232/485	6 USB 2.0 10/100/1000 Ethernet	CRT/DVI HDMI 32MB	Linux XPE/WES	Mini PCIe	2.95"x11.22"x8.27"

Single Board Servers

If one of the prepackaged SIBs listed above does not meet your requirements, you can opt to have virtually any one of EMAC's Single Board Computers (SBC) turned into an SIB. Just select your SBC of choice, your Operating System of choice, and any I/O Peripheral Options you require. EMAC can then integrate your selections into a custom SIB.
