The EMAC Deluxe Low-Power Compact Server-In-a-Box (SIB), is a low cost, small footprint, yet powerful Server. The DLP Compact SIB utilizes the VIA Eden ULV CPU. The DLP Compact SIB comes built with a 500MHz or 1GHz fanless VIA Eden processor paired with the VIA VX800M chipset. This allows it to run Linux, Windows CE and even Window XPE Operating Systems. While the video engine delivers a High Definition visual experience, including advanced video acceleration for  MPEG-2, MPEG-4, WMV9, VC1 and DiVX video formats, plus a VMR capable HD video processor.

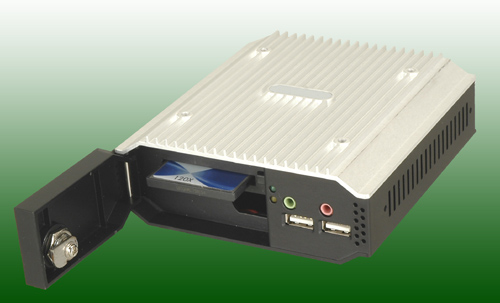

Like all SIBs, the DLP SIB has no moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. While adding a secure locking cover for securing the flash media, while still offering easy removal for updates and backing up the system. The Deluxe Low-Power Compact SIB is just as comfortable in a basement wiring closet as it is on a desktop.

Purchase a EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

FEATURES

Hardware

• Fanless x86 500MHz CPU (1GHz CPU optional)
• 512MB DDR2 667MHz memory On Board (1GB of DDR2 memory optional)
• 4GB+ Compact Flash Disk
• 10/100 Base-T Ethernet
• Extremely Reliable (No Moving Parts)
• Compact Flash Socket (covered by a locking cover, Key included)
• 4 USB 2.0 Host Ports
• Analog SVGA Video
• 2 RS232 Serial Ports
• On Board VIA VT1708 HD Audio CODEC (Mic-in and line-out 1/8" mini Jacks)
• Bus expansion with onboard Mini-PCIe connector
• Internal SATA connector
• VESA hole pattern allows SIB to directly bolt to a standard VESA 75 mount.
• Power supply and custom enclosure included.


Options

• Up to 64+GB of Compact Flash storage
• Internal Wireless Mini-PCIe 802.11b/g card with 2dbi external antenna
• Double VESA mounting bracket, allows for using a VESA 75 Mounting bracket for system and LCD


Mechanical and Environmental

• Dimensions: 125mm x 120mm x 44mm (4.9" x 4.7 " x 1.7 ")
• Weight: 480g (1.06 lbs.) (without external powersupply)
• Power Supply Voltage: +5V (4.57 ~ 5.25 V) (30W Power Supply Provided)
• Maximum Power Requirements: +5V @ 3.0A 1GHz CPU at full load (2.0A typical)
• Operating Temperature: 0 ° to 55° C ( 32 ° to 131° F)
• Operating Humidity: 5% to 95% relative humidy noncondensing

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

For Deluxe Low-Power Compact SIB with 512MB DDR2 Memory and 500 MHz CPU:

SIB-08050 .. DLP Compact sib w/linux

305

SIB-08052 .. DLP compact sib w/linux & wireless lan

342

SIB-08250 .. DLP Compact sib w/4Gb DMA Flash, windows XPE

SIB-08252 .. DLP Compact sib w/4Gb DMA Flash, windows XPE & wireless

For Deluxe Low-Power Compact SIB with 1GB DDR2 Memory and 1 GHz CPU:
