Deluxe SIB Manual

The EMAC Deluxe Server-In-a-Box (SIB) is a full-featured, I/O rich, embedded Server. This SIBs utilizes the Intel Atom N270, 1.6GHz fanless processor allowing it to run Linux and XPE Operating Systems. Like all SIBs, the Deluxe SIB works to reduce the number moving parts and features a rugged enclosure design making it an ideal choice for most industrial applications. The Deluxe SIB is just as comfortable in a basement wiring closet as on a desktop.

Purchase an EMAC SIB and you should be up, running and building applications the first day.

Click Here for more information on EMAC's Linux for SIBs.
Click Here for more information on EMAC's XPE for SIBs.

FEATURES

Hardware

• Intel Atom N270 Fanless 1.6GHz processor
• 1GB DDR2 RAM Expandable to 2GB
• 4GB CompactFlash™ Flash Disk Expandable to over 32 GB
• Dual Independent Display
  • VideoDB15 Analog SVGA connector
  • TV-Out
• Dual Gigabit Ethernet
• 4 RS-232
• 1 RS-232/485/422
• Four Universal Serial Bus (USB) 2.0 Host ports
• Audio Line-In, Line-Out, Mic-In
• PS/2 Keyboard & Mouse ports
• Watchdog Timer
• Extremely Reliable (No Hard Drive or CPU Fan)
• Power On/Off Switch, Reset Button, & Indicator LEDs
• Built in AC Power Supply

Options

• Optional Enclosure provides:
  • additional RS232 port
  • parallel printer port
  • 4 additional USB 2.0 Host ports
  • PCI card slot
• Shock Mounted Hard Drive
• Additional RAM & Flash Capacity
• USB 802.11g Wireless

Mechanical and Environmental

• Dimensions:

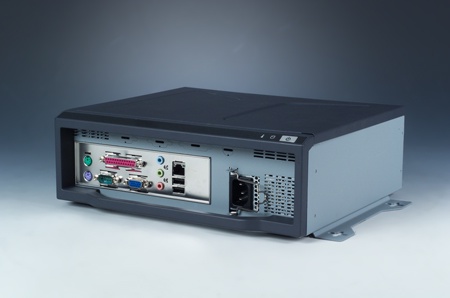

  • Standard Chassis: 10.7” (W) x 3.5” (H) x 9.4” (D) (272 mm x 88 mm x 240 mm)

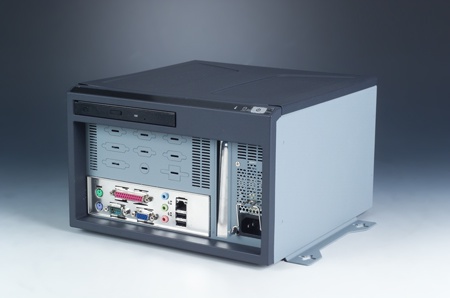

  • Optional Chassis: 9.8” (W) x 6.1” (H) x 10.0 ” (D) (250 mm x 156 mm x 253 mm)
• Weight
  • Standard Chassis: ~ 9.0 lb.
  • Optional Chassis: ~ 12.0 lb.
• Construction: Rugged Steel Chassis
• Mounting: Desk/Wall mount
• Power Requirements: 100 - 240V AC
• Operating Temperature: 0 ~ 60 ° C (32 ~ 140° F)
• Operating Humidity: 10% ~ 90% Relative Humidity, non condensing

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

SIB-03010 .... Deluxe SIB w/small chassis, Linux, 180W PS

 425.00

SIB-03020 .... Deluxe SIB w/small chassis, XPE, 180W PS

 545.00

SIB-03030 .... Deluxe SIB w/Large chassis, Linux, 180W PS

 450.00

SIB-03040 .... Deluxe SIB w/Large chassis XPE, 180W PS

 570.00
