VSX-6154

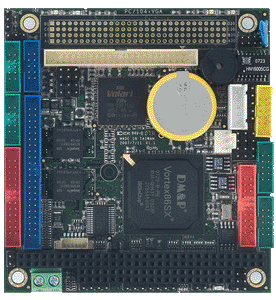

The VSX-6154 utilizes an onboard Vortex86SX Fanless 300MHz processor built for Ultra Low Power Consumption. The processor is highly integrated so that it reduces the price of any board utilizing this processor.

  • Fanless Vortex 486 class 86SX running at 300MHz
  • 128MB DDR2 Memory On-board
  • Extended Temperature Range ideal for Industry or Mechanical application
  • PC/104, Optional PC/104+ Interface

Product Variations

Name VSX-6154 VSX-6154P VSX-6154P-X
Price Call Call Call
ATTRIBUTES
CPU Vortex86SX Vortex86SX Vortex86SX
Number of Cores 1 1 1
Speed 300MHz 300MHz 300MHz
Memory 128MB DDR RAM 128MB DDR RAM 128MB DDR RAM
Storage IDE, Floppy IDE, Floppy IDE, Floppy
Serial 4xCOM 4xCOM 4xCOM
USB 2xUSB2 2xUSB2 2xUSB2
LAN LAN LAN LAN
Expansion PC/104 PC/104+ PC/104
Video VGA VGA VGA
Temperature (-20°C to +70°C) (-20°C to +70°C) (-40°C to 85°C)

Additional information

FORM FACTOR

PC/104

PROCESSOR TYPE

DM&P Vortex86SX 486SX Class Fanless

PROCESSOR CORES

Single

PROCESSOR CLOCK SPEED

300 MHz

RAM TYPE

DDR2 Onboard

RAM

see datasheet

VIDEO OUT

VGA, LVDS, TTL LCD

ETHERNET

1x 10/100BASE-T LAN

Wireless

see datasheet

STORAGE

1x Compactflash, 1x IDE

SERIAL PORTS

4x Serial Ports (3x RS-232, 1x RS-232/422/485)

USB 3.0

N/A

USB 2.0

2x USB 2.0

SERIAL (OTHER)

N/A

AUDIO

N/A

EXPANSION

PC/104

LOW OPERATING TEMPERATURE

-20°C (-4°F)

HIGH OPERATING TEMPERATURE

70°C (158°F)

ENVIRONMENTAL MISC.

Optional Temperature range on select models up to -40°C to 85°C (-40°F to 185°F)

VOLTAGE

5 V

Description

The VSX-6154 utilizes an onboard Vortex86SX Fanless 300MHz processor built for Ultra Low Power Consumption. The processor is highly integrated so that it reduces the price of any board utilizing this processor. Unlike other PC/104 SBCs the VSX-6154 maintains the true PC/104 standard form-factor and does not require “wings”. The VSX-6154 is available with an optional PC/104+ bus which allows it to access higher end PCI bus based modules.

The VSX-6154 has a fully static 32-bit X86 processor and is PC compatible allowing it to run most popular 32-bit Operating Systems such as Windows and Linux. The Video Chip features 32 MB onboard video memory supporting Analog VGA monitors and TFT Flat panel interfaces and has a resolution of up to 1280×1024 @ 16M colors. In addition to video, two USB 2.0 ports are available as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices) and three RS-232 and one RS-232/422/485 serial ports. The VSX-6154 can run at temperatures of -20 º C (-4º F) to 70º C (158º F). The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential.

**Flash Disk not included.**

_____________________________________________________

EMAC can provide software Board Support Packages (BSPs) for our Single Board Computers (SBCs) using your choice of compatible Embedded Operating Systems. Integration of the single board computer into an enclosure, adding memory, CPU, Wireless (WiFi, Bluetooth or Mesh), storage solution & loading an OS, in most cases is free with the purchase of the Single Board Computer and related components. Additionally EMAC has LCD- Panel Kits with Touchscreen options, allowing our Single Board Computer Solutions to utilize an LCD for video output and a touchscreen replacement of a mouse for input.

The LCD Panel Kit with the Touchscreen option in conjunction with the Flash Disk, makes for a Solid State Embedded computer system that is ideal for rugged, wide temperature, and low downtime environments. If you cannot find exactly what you need from our large Off-The-Shelf selection, EMAC can potentially customize any hardware or software component, and additionally offer driver development and software application programming, providing you with the perfect fit for their SBC application needs. EMAC can provide Enclosures, I/O Modules, Peripherals, Memory, and Operating Systems for most of our x86 and ARM SBCs to make them into fully embedded systems.

EMAC supports and can install the the following Embedded Operating Systems on Hard Drive or Flash Disk: Embedded Linux, Xenomi Development Framework, ROMDOS, Windows CE, and Windows Embedded Standard, Windows 10 IoT or Windows 10 IoT Core.
