VSX-6127 486 SBC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

Features

Specifications

Pricing

EMC-i613 Celeron/Pentium 3 SBC

VSX-6127 Manual(0.83MB)

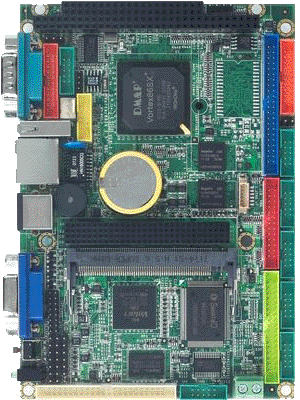

The VSX-6127 utilizes an onboard Vortex86SX Fanless 300MHz processor with Ultra Low Power Consumption and provides PC/104+ bus connectivity.

The VSX-6127 has a fully static 32-bit x86 processor and is PC compatible allowing it to run most popular 32-bit Operating Systems such as Windows CE and Linux as well as older Operating Systems such as DOS. The XGI Volari Z9 video chipset features 32 MB onboard video memory supporting Analog VGA monitors and TFT Flat panel LCDs and has a resolution of up to 1280x1024 @ 16M colors. In addition to video, three USB 2.0 ports are provided as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices) and seven RS-232 and one RS-232/422/485 serial port. The PCM-6127 can run at temperatures of -20 º C (-4º F) to 70º C (158º F). The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

CPU: Fanless Vortex 486 class 86SX running at 300MHz
128MB of on-board DDR2 RAM
PC/104+ Expansion
Compact Flash socket
10/100 Base-T Ethernet
3 x USB 2.0 Ports
8 x Serial Ports
Extended Temperature Range -20 º C (-4º F) to 70º C (158º F)

SPECIFICATIONS

Standard SBC Functions

CPU: Vortex86SX 300MHz 486 class Fanless Processor
L1 Cache: 16K I-Cache, 16K D-Cache
BIOS: AMI BIOS
Memory: On-board 128MB DDR2
IDE Interface: One Ultra DMA 100/66/33, which supports 2 IDE Drives
SSD Interface: Compact Flash Card Type I/II
FDD Interface: Supports One Floppy Drive
Serial Ports: Seven RS-232 Ports and One RS-232/422/485 Port
Parallel Port: Supports SPP, EPP, and ECP modes
USB Ports: Three onboard USB 2.0 ports
Watchdog Timer: 30.5 to 512 seconds, two sets
GPIO: Two 16 bit General Purpose I/O ports
Flash: EmbedDisk (16 MB and above) and on-board 2MB SPI Flash Chip
(DOS can be boot & ran from the on-board SPI Flash)

VGA/Flat-Panel Interface

Chipset: XGI Volari Z9s Chipset
Video Memory: Onboard 32MB VGA Memory
Display Type: Analog VGA and TFT Flat Panel Interface support
Resolution: Up to 1280 x 1024 @ 16M colors

Ethernet Interface

Interface: 10/100 Base-T Ethernet

Mechanical and Environmental

Power Requirements: +5 V @ 620 mA
Operating Temperature: -4 to 158°F (-20 to 70°C); -40 to 175°F (-40 to 85°C) Optional
Board Dimensions: 4.01 " x 5.67 " (102 mm x 144 mm)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

vsx-6127 ... Vortex86SX 3.5" SBC with 128MB DDR2 & Cables

USD 228.00

(Flash Disk not included.)

Available Options
Single Board Computers (SBC)
System Memory (RAM)
Hard Drives
Flash Memory (EmbedDisk)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
