VSX-6124 Half-ISA 486 CPU Card

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

Features

Specifications

Pricing

EMC-i613 Celeron/Pentium 3 SBC

VSX-6124 Manual

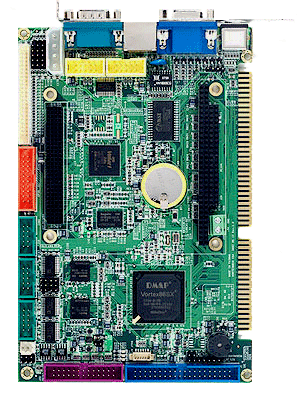

The VSX-6124 utilizes an onboard Vortex86SX Fanless 300MHz processor built for Ultra Low Power Consumption. The processor is highly integrated so that it reduces the price of any board utilizing this processor. The VSX-6124 is comes with a PC/104 bus connector and an optional PCI-104 / PC/104+ bus connector which allows it to utilize higher end PCI bus based modules.

The VSX-6124 has a fully static 32-bit 486 class X86 processor and is PC compatible allowing it to run most popular 32-bit Operating Systems such as DOS, Windows and Linux. The Video Chip features 32 MB onboard video memory supporting Analog VGA monitors and TFT Flat panel interfaces and has a resolution of up to 1280x1024 @ 16M colors. In addition to video, four USB 2.0 ports are available as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices) and three RS-232 and one RS-232/422/485 serial ports. The VSX-6124 can run at temperatures of -20 º C (-4º F) to 70º C (158º F). The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

CPU: Fanless Vortex 486 class 86SX running at 300MHz
128MB of on-board DDR2 RAM
Extended Temperature Range -20 º C (-4º F) to 70º C (158º F)
10/100 Base-T Ethernet
4 x USB Ports
4 x Serial Ports
Supports PC/104 and Optional PCI-104 / PC/104+ Interface

SPECIFICATIONS

Standard SBC Functions

CPU: Vortex86SX 300MHz Fanless Processor
L1 Cache: 16K I-Cache, 16K D-Cache
BIOS: AMI BIOS
Memory: On-board 128MB DDR2
IDE Interface: One Ultra DMA 100/66/33, which supports 2 IDE Drives
Serial Ports: Three RS-232 Ports and One RS-232/422/485 Port
Parallel Port: Supports SPP, EPP, and ECP modes
USB Ports: Four onboard USB 2.0 ports
Expansion Bus : PC/104 standard compliant; PCI-104 / PC/104+ (Optional)
Watchdog Timer: 30.5 to 512 seconds, two sets
GPIO: 16 lines of General Purpose I/O
Flash: EmbedDisk and on-board 2MB SPI Flash Chip
(DOS can be boot & ran from the on-board SPI Flash)

Optional SBC Features

Floppy Drive: Floppy drive connector and ribbon cable
Industrial Temperature operations: -40 º C (-40º F) to 85º C (185º F)

VGA/Flat-Panel Interface

Chipset: XGI Volari Z9s Chipset
Video Memory: Onboard 32MB VGA Memory
Display Type: Analog VGA and TFT Flat Panel Interface support
Resolution: Up to 1280 x 1024 @ 16M colors

Ethernet Interface

Interface: 10/100 Base-T Ethernet

Mechanical and Environmental

Power Requirements: +5 V @ 640 mA
Operating Temperature: -4 to 158°F (-20 to 70°C); -40 to 185°F (-40 to 85°C) Optional
Board Dimensions: 7.24" x 4.80" (184 mm x 122 mm)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

VSX-6124 ....... Vortex86SX 300MHz 128MB Half-Isa VGA/LAN/	169.00
VSX-6124-x ..... Vortex86SX 300MHz 128MB Half-Isa VGA/LAN/ -40 to 85*C	212.00
VSX-6124-FD .... Vortex86SX 300MHz 128MB Half-Isa VGA/LAN/FDD	188.00
VSX-6124-FD-x .. Vortex86SX 300MHz 128MB Half-Isa VGA/LAN/FDD -40 to 85*C	236.00

(Flash Disk not included.)

Available Options
Single Board Computers (SBC)
System Memory (RAM)
Hard Drives
Flash Memory (EmbedDisk)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures & Backplanes
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
