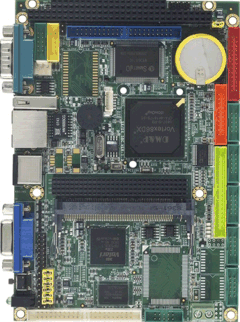

The VDX-6327 /6328 utilizes an onboard Vortex86DX Fanless 800MHz processor built for Ultra Low Power Consumption. The processor is highly integrated thus reducing the price of the board. The VDX-6327 /6328 comes with a PC/104 bus connector and a PCI-104 / PC/104+ bus connector which allows it to utilize higher end PCI bus based modules.

The VDX-6327 / 6328 has a fully static 32-bit 486 class X86 processor and is PC compatible allowing it to run most popular 32-bit Operating Systems such as DOS, Windows and Linux. The Video Chip (Volari Z9s) features 32 MB onboard video memory supporting Analog VGA monitors and TFT/LVDS Flat panel interfaces and has a resolution of up to 1280x1024 @ 16M colors. In addition to video, three USB 2.0 ports are available as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices), Floppy Disk interface and seven RS-232 and one RS-232/422/485 serial ports. The VDX-6327 /6328 can run at temperatures of -20 º C (-4º F) to 70º C (158º F). The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

CPU: Fanless Vortex 486 class 86DX running at 800MHz
256MB or 512MB of on-board DDR2 RAM
Compact Flash socket
Extended Temperature Range -20 º C (-4º F) to 70º C (158º F)
10/100 Base-T Ethernet
3 x USB 2.0 Ports
8 x Serial Ports (VDX-6327), 6 x Serial Ports (VDX-6328)
Audio Input & Output (VDX-6328)
Supports PC/104 and PCI-104 / PC/104+ Interfaces

SPECIFICATIONS

Standard SBC Functions

CPU: Vortex86DX 800MHz Fanless Processor
L1 Cache: 16K I-Cache, 16K D-Cache
BIOS: AMI BIOS
Memory: On-board 256MB DDR2; 512MB DDR2 Optional
IDE Interface: One Ultra DMA 100/66/33, which supports 2 IDE Drives
SSD Interface: Compact Flash Card Type I/II
FDD Interface: Standard Floppy Disk Drive Interface
Serial Ports:
- VDX-6327: Seven RS-232 Ports and One RS-232/422/485 Port
- VDX-6328: Six RS-232 Ports and One RS-232/422/485 Port
Parallel Port: Supports SPP, EPP, and ECP mode
USB Ports: Three onboard USB 2.0 ports
Expansion Bus : PC/104+ standard compliant; PC/104 & PCI-104
Watchdog Timer: 30.5 to 512 seconds, two sets
GPIO: 16 lines of General Purpose I/O
PWM: 16 channels of PWM
Flash: Compack Flash and on-board 2MB SPI Flash Chip(4MB on VDX-6328)
(DOS can be boot & ran from the on-board SPI Flash)

VGA/Flat-Panel Interface

Chipset: XGI Volari Z9s Chipset
Video Memory: Onboard 32MB VGA Memory
Display Type: Analog VGA and TFT Flat Panel Interface support
Resolution: Up to 1280 x 1024 @ 16M colors

Ethernet Interface

Interface: 10/100 Base-T Ethernet

Audio Interface (VDX-6328 only)

Interface: On-Board CM119 USB Audio Controller
- Line Out, Mic In

Mechanical and Environmental

Power Requirements: +5 V @ 820 mA
Operating Temperature: -4 to 158°F (-20 to 70°C);
- -40 to 175°F (-40 to 85°C) Optional
Board Dimensions: 4.01" x 5.67" (102 mm x 144 mm)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE
Microsoft Windows 95, 98
Microsoft Windows XP, XPE (requires special configuration)
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

VDX-6327D...... Vortex86DX 800MHz 256MB SBC VGA/LAN/	252.00
VDX-6327D-X.... Vortex86DX 800MHz 256MB SBC VGA/LAN/Wide Temp	316.00
VDX-6327D-512.. Vortex86DX 800MHz 512MB SBC VGA/LAN/	322.00
VDX-6328D ..... Vortex86DX 800MHz 256MB SBC VGA/LAN/	243.00
VDX-6328D-512.. Vortex86DX 800MHz 512MB SBC VGA/LAN/	306.00

(Flash Disk not included.)

Available Options
Single Board Computers (SBC)
Hard Drives
Flash Memory (Compact Flash)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
