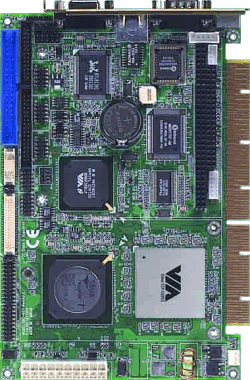

The SBC-657 is an all-in-one VIA Eden processor based single board computer (SBC) with a AGP CRT/LCD controller, a PCI 100Base-T Ethernet interface.The SBC-657 achieves outstanding performance that surpasses any other SBC in its class. In addition, the onboard SSD interface supports type II Compact Flash, with memory capacity above 1 GB.

Onboard features include four serial ports (three RS-232, one RS-232/ 422/485), one multi-mode parallel (ECP/EPP/SPP) port, Pin header for four USB (Universal Serial Bus) ports, a floppy drive controller, and a keyboard-PS/2 mouse interface. The built-in high speed PCI IDE controller supports Ultra DMA/100 mode. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives, etc.

The SBC-657 also features power management to minimize power consumption. It complies with the ACPI standard and supports three types of power saving features: doze, standby, and suspend mode. In addition, the board's watchdog timer can automatically reset the system or generate an interrupt in case the system stops due to a program bug or EMI.

The SBC-657 is a highly integrated SBC that combines, video, and network functions on a single computer board. It provides up to 1280 x 1024 resolution @ 24 bit color utilizing shared display memory up to 32 Meg. Major onboard devices adopt PCI technology to achieve outstanding computing performance making the SBC-657 one of the world's best and most powerful all-in-one Single Board Computer.

FEATURES

• Embedded low power VIA Eden 667 MHz
• Fanless, 0 ~ 60°C (32 ~ 140°F) operation
• Realtek RTL 8139C 10/100Base-T Fast Ethernet
• Supports Compact Flash (SSD) over 1 GB
• PISA bus interface
• PC/104 expansion connector

SPECIFICATIONS

General Functions

• CPU: Embedded low power VIA Eden 667 MHz with 133 MHz front side bus
• Bus interface: PISA bus
• BIOS: Award 256KB FLASH BIOS
• Chipset: VIA VT8806/VT82C686B
• I/O Chipset: VT82C686B
• Memory: Onboard one SODIMM socket supports up to 512 MB SDRAM
• Enhanced IDE: Supports two IDE devices. Supports Ultra DMA/100 mode with data transfer rate up to 100MB/sec.
• FDD interface: Supports two floppy disk drives, 5.25" (360KB and 1.2MB) and/or 3.5" (720KB, 1.44MB, and 2.88MB)
• Parallel port: One bi-directional parallel port. Supports SPP/ECP/EPP modes
• Serial port: Three RS232 and one RS232/422/485 serial ports. Ports can be configured as COM1, COM2, COM3, COM4, or disabled individually. (16C550 equivalent)
• IR interface: Supports one IrDA Tx/Rx header
• KB/Mouse connector: 6-pin mini DIN connector supports PC/AT keyboard and PS/2 mouse
• USB connectors: Two 5 X 2 headers onboard support four USB ports
• Battery: Lithium battery for data retention
• Watchdog timer: Can generate a system reset, IRQ15 or NMI. Software selectable time-out interval (1 sec. ~ 255 sec., 1 sec./step, 1 min. ~ 255 min., 1 min./step)
• DMA: 7 DMA channels (8237 equivalent)
• Interrupt: 15 interrupt levels (8259 equivalent)
• Power management: I/O peripheral devices support power saving and doze/ standby/ suspend modes. APM 1.2 compliant

• Chipset: VIA Twister™ chip with integrated Savage4™ 2D/3D/Video Accelerator
• Frame buffer: Supports 8/16/32MB frame buffer with system memory
• Interface: 4X AGP VGA/LCD interface, Support for 9, 12, 15, 18, 24, 36 bit TFT and optional 16- or 24-bit DSTN panel
• Display mode:
  • CRT Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (85Hz)
  • LCD /Simultaneous Modes: 1280 x 1024@16bpp (60Hz), 1024 x 768@16bpp (60Hz)
• LVDS: Supports 2 Channel (2 x 18bit) LVDS interface

• Chipset: Realtek RTL 8139
• Ethernet interface: IEEE 802.3u 10/100BASE-T Fast Ethernet compatible

• Supports one 50-pin socket for Compact Flash (CFC) type I/II

• PC/104 conector: One 16-bit 104-pin connector onboard

• Power supply Voltage: +5V , +12V AT, or +3.3, +5V , +12V ATX
• Operating Temperature: 32° to 140° F (0° to 60° C)
• Board Size: 7.3 in (L) x 4.8 in (W) (185mm x 122mm)
• Weight: 0.66 lb. (0.3 kg)

Operating System Compatibility

• Linux & RTAI Real-Time Linux
• Microsoft Windows XP / XPE
• Microsoft Windows CE /CE.net
• Microsoft Windows NT / NTE
• Microsoft MS-DOS 6.22 & RomDos 6.22
• Wind River VxWorks
• QNX Neutrino RTOS
