SBC-357

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

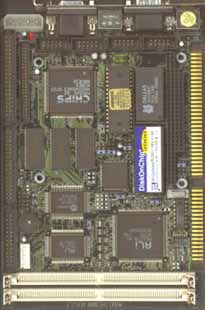

The SBC-357 is an all-in-one single board 386SX computer with an on-board flat panel VGA/LCD controller. This board uses the CHIPS 65545 chipset with 1MB of video memory. This chipset, used with the on-board ISA-bus, enables 16-bit graphic throughput. Excellent for display-intensive applications, it supports various LCD types, including TFT, STN, B/W and EL. Another feature of the SBC-357 is the inclusion of an enhanced IDE controller. This controller supports LBA mode hard disks. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, tape backup drives or other IDE devices. On-board features include three high-speed RS-232 and one RS-232/422/485 high speed serial port with 16C550 UARTS, one bi-directional SPP/EPP/ECP parallel port and a floppy-drive controller. If program execution is halted by a program bug or EMI, the board's 16-stage watchdog timer can automatically reset the CPU or generate an interrupt. This ensures reliability in unmanned or standalone systems. The SBC-357 provides two 72-pin SIMM (Single In-Line Memory Module) sockets for it's on-board system DRAM. These sockets give you the flexibility to configure your system from 4MB to 32MB of DRAM using the most economical combination of SIMMS.

FEATURES

Onboard ALi M6117C, Intel® 386SX-40 compatible CPU
Onboard three RS-232 and one RS-232/422/485 serial port
C&T 65545 CRT/LCD controller with 1MB display memory
Supports DiskOnChip® (SSD) up to 1 GB
PC/104 expansion connector
Optional Ethernet

SPECIFICATIONS

Standard SBC Functions

CPU: ALi M6117C. Intel® 80386SX-40 compatible
CPU type: Onboard SQFP
Bus Interface: ISA
BIOS: AMI 128KB Flash BIOS
Chipset: ALi M6117C
I/O Chipset: ITE 8661F
Memory: 4 MB to 32 MB. One 72-pin SIMM sockets EDO
Enhanced IDE: Supports two IDE devices.
FDD Interface: Supports up to two floppy disk drives, 5.25" (360 KB and 1.2 MB) and/or 3.5" (720 KB, and 1.44 and 2.88 MB)
Parallel Port: One bi-directional parallel port. Supports SPP/EPP/ECP modes
Serial Ports: Three RS-232 and one RS-232/422/485 serial ports. Ports can be configured as COM1, COM2, COM3, COM4, or disabled individually. (16C550 equivalent)
KB/Mouse connector: 6-pin mini-DIN connector supports PC/AT keyboard and PS/2 mouse. Additional 5-pin header supports PC/AT keyboard for IPC applications
Battery: Lithium battery for data retention
Watchdog Timer: Can generate a system reset, IRQ15, or NMI. Software selectable time-out interval (30.5 µs ~ 512 sec., 30.5 µs/step)
DMA Channels: 7 DMA channels (8237 equivalent)
Interrupt Levels: 15 interrupt levels (8259 equivalent)
Power management: I/O peripheral devices support power saving and doze/standby/suspend modes. APM 1.1 compliant

Flat panel /CRT interface

Chipset: C&T 65545
Display memory: Onboard 1MB display memory
Display type: Supports non-interlaced CRT/LCD (TFT, DSTN, B/W and EL) displays. Can display both CRT and Flat Panel simultaneously
Resolution: Up to 800 x 600 @ 256 colors

SSD Interface

One: 32-pin DIP socket supports M-Systems DiskOnChip® 2000 series up to 1 GB

Expansion Interface

PC/104 connector: One 16-bit 104-pin connector onboard

Mechanical and Environmental

Power supply Voltage: +5V (4.75V to 5.25V)
Typical power requirement: +5V @ 3A
Operating temperature: 32° to 140°F (0° to 60°C)
Board size: 7.3"(L) x4.8"(W) (185mm x 122mm)
Weight: 0.3 kg

Operating System Compatibility

Linux
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup, and Testing)
Not Recommended for New Designs. Condsider: HSB-440I

SBC-357/4M ... 386 SBC w/ 4MB RAM, VGA/LCD, 4 COMs

USD 240.00

Available Options
System Memory (RAM)
Hard Drives
Flash Memory (DiskOnChip®)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures and Backplanes
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
