PCM-9587 Pentium M EBX SBC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

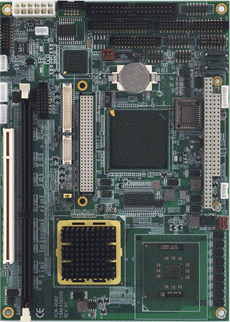

PCM-9580 SBC Image

Features

Specifications

Pricing

PCM-9587 Manual (3.7MB)

The PCM-9587 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 852GM chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCM-9587's design is based on the EBX form factor and provides support for PCI-104+ module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 8" x 5.75") offers all the functions of a single board industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an Ethernet port, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports UDMA/100 bus master modes and 2 Serial ATA (SATA) 150 interfaces.

FEATURES

Embedded Intel® Fanless Celeron® M 600 MHz
ECC DDR Memory
EBX form factor standard and support for PC/104-Plus
10/100Base-T Ethernet
4 ports Host USB 2.0
2 channel 48-bit LVDS interface

SPECIFICATIONS

Single Board Computer System

CPU: Embedded Intel Fanless Celeron M 600 Mhz
BIOS: AWARD 512 KB Flash BIOS
Chipset: Intel 852GM GMCH/6300ESB
System Memory: 184 pin DIMM socket, supports ECC DDR 200/266 memory
- Maximum memory capacity is 1024 MB (1 GB)
Power Management: APM 1.2, ACPI support
Expansion Interface: Supports PC/104, PC/104-Plus, Mini PCI interface and a PCI slot
Watchdog Timer: Winbound W83627, 255-level timer interval, setup by software

Standard I/O

Enhanced IDE Interface: One EIDE Channels (Ultra DMA 100)
Serial ATA: 2 Channels of SATA 150
Floppy Disk Drive Interface: 1 Floppy channel
Keyboard/Mouse Support: PS/2 keyboard and mouse
Serial Ports: 3 RS-232 ports and 1 RS-232/422/485 port
Parallel Port: 1 Parallel Port supports SPP/EPP/ECP mode
USB Ports: 4 USB 1.1/2.0 compliant ports
GPIO: General Purpose 8 Line Input or Output

Audio

AC’97 3D surround stereo sound
Supports Speaker out, CD-input, Line-in, Line-out, Microphone input

Display

Chipset: Intel 852GM Chip integrated. (Extreme Graphics 2)
Memory Size: Optimized Shared Memory Architecture, supports up to 64MB frame buffer
Resolution
- CRT Mode: pixel resolution up to 1600 x 1200 at 85-Hz and 2048 x 1536 at 75-Hz
- LCD Mode: Dual channel LVDS panel support up to UXGA panel resolution
LVDS: Supports 2 Channel 48-bit (2 x 24-bit) LVDS interface
TV-Out: Supports NTSC/PAL, S-video and Composite Video (requires optional cable)
Interface: Dual Independent CRT+LVDS; DVI/TV-Out +LVDS; CRT+DVI

Solid State Disk

CompactFlash™ card Type I/II

Ethernet

Chipset: Intel® 82551ER 10/100 Base-T
Interface: IEEE 802.3u 100 BASE-T Fast Ethernet compatible

Mechanical and Environmental

Dimensions: 146 mm x 203 mm (5.7" x 8.0")
Weight: 0.85 kg (1.9 lbs.)
Power Supply Voltage: +5V, +12V @ +/- 5%
Power Requirements (Celeron M 600, 256 M DDR266)
- Maximum: +5 V @ 2.63 A, +12 V @ 0.03 A
- Typical: +5 V @ 2.0 A, +12 V @0.03 A
Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
Operating Humidity: 0 ~ 90% Relative Humidity, noncondensing

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-9587F-M ... Celeron M 600 SBC w/Audio,VGA,LCD,CFC,LAN

342.00

(Memory,and Flash Disk Not Included)

Optional Components

PCM-10586-62 .... Installation Wiring Kit	65.00
CAB-15-003-1 .... DVI Cable	20.00
CAB-15-002-1 .... TV-Out Cable	8.00

Available Options
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
