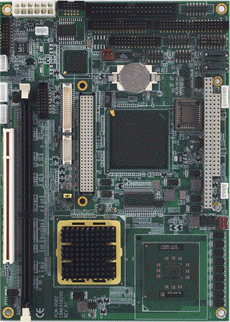

PCM-9580 SBC Image

Features

Specifications

Pricing

PCM-9582 Manual (2.2MB)

The PCM-9582 is centered on a powerful Intel Celeron® M processor that supports enhanced Intel “SpeedStep” technology and uses Intel’s 855GME chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCM-9582's design is based on the EBX form factor and provides support for PCI-104+ module expansion. The EBX form factor also provides a convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 8" x 5.75") offers all the functions of a single board industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include: four serial ports, one multi-mode parallel (ECP/EPP/SPP) port, four USB (Universal Serial Bus) 1.1/2.0 ports, an Ethernet port, and a PS/2 keyboard/mouse interface. The built-in high-speed PCI IDE controller supports UDMA/100 bus master modes and 2 Serial ATA (SATA) 150 interfaces.

FEATURES

Embedded Intel® Pentium® M 1.1 GHz/Celeron® M 600 MHz
ECC DDR Memory
EBX form factor standard and PC/104-Plus
1000Base-T Ethernet
4 x ports Host USB 2.0
2 channel 48-bit LVDS interface
Enhanced Intel® Speedstep Technology

SPECIFICATIONS

Single Board Computer System

CPU: Embedded Intel Pentium M (Banias/Dothan)/Celeron M Processor supported
L2 Cache: 512 KB to 2 MB depending on CPU
BIOS: AWARD 512 KB Flash BIOS
Chipset: Intel 855GME GMCH/6300ESB Chipset
System Memory: 184 pin DIMM socket, support ECC DDR 200/266/333 DRAM
- Maximum Memory Capacity is 1024 MB (1 GB)
Power Management: APM 1.2, ACPI support
Expansion Interface: Supports PC/104, PC/104+ and Mini PCI interfaces
Watchdog Timer: Winbond W83627, 255-level timer interval

Standard I/O

Enhanced IDE Interface: One EIDE Channels (Ultra DMA 100)
Serial ATA: 2 Channels of SATA 150
Floppy Disk Drive Interface: 1 Floppy channel
Keyboard/Mouse Support: PS/2 keyboard and mouse
Serial Ports: 3 RS-232 ports and 1 RS-232/422/485 port
Parallel Port: 1 Parallel Port supports SPP/EPP/ECP mode
USB Ports: 4 USB 1.1/2.0 compliant ports
GPIO: General Purpose 8 Line Input or Output

Audio

6300ESB, AC97 3D surround stereo sound
Supports Speaker out, CD-input, Line-in, Line-out

Display

Chipset: Intel 855GME chip integrated. (Extreme Graphics 2)
Memory Size: Optimized Shared Memory Architecture, supports up to 64 MB frame buffer using system memory
Resolution
- CRT Mode: pixel resolution up to 1600 x 1200 at 85-Hz
- LCD Mode: channel LVDS panel supports up to UXGA panel resolution
LVDS: Supports 2 Channel 48-bit (2 x 24-bit) LVDS
TV-Out: Supports NTSC/PAL, S-Video and Composite Video (requires optional cable)
Interface: Dual Independent CRT+LVDS; DVI/TV-Out +LVDS; CRT+DVI

Solid State Disk

CompactFlash™ card Type I/II

Ethernet

Chipset:
- Intel® 82551ER 10/100 Base-T
- Optional Intel® Gigabit 82541GI
Interface:
- IEEE 802.3u 100 BASE-T Fast Ethernet compatible
- IEEE 802.3z/ab 1000 BASE-T Gigabit Ethernet compatible

Mechanical and Environmental

Dimensions: 146 mm x 203 mm (5.7" x 8.0")
Weight: 0.85 kg (1.9 lbs.)
Power Requirements: +5 V ± 5%, +12 V ± 5%
(Celeron M 600 with 256 MB DDR266)
- Max(HCT): 5 V @ 2.63A, 12 V @ 0.04A
- Typical: 5 V @ 2.1A, 12 V @ 0.03A
(Pentium M 1.1 G with 256 MB DDR266 )
- Max (HCT): 5 V @ 3.1A, 12 V @ 0.15A
- Typical: 5 V @ 2.3A, 12 V @ 0.13 A
(Pentium M 1.6G with 1.6 GHz with 256 MB)
- Max (HCT): 5 V @ 4.8A, 12 V @ 0.15A
- Typical: 5 V @ 2.54A, 12 V @ 0.14A
Operating Temperature: 0 ~ 60° C (32 ~ 140° F)
Operating Humidity: 0 ~ 90% Relative Humidity, noncondensing

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft MS-DOS 6.22 & RomDos 6.22
Wind River VxWorks
QNX Neutrino RTOS

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-9582F ..... SOcketed Pentium M SBC 10/100 LAN, no CPU	359.00
PCM-9582f-FG .. Pentium M SBC 1000 Base-t LAN, No CPU	392.00
PCM-9582F-M ... Celeron M 600 Mhz SBC 10/100 LAN	448.00
PCM-9582F-S ... Pentium M 1.4 Ghz SBC 10/100 LAN	952.00

(Memory,and Flash Disk Not Included)

Optional Components

PCM-10586-62 .. Installation Wiring Kit	65.00
CAB-15-003-1 .. DVI Cable	20.00
CAB-15-002-1 .. TV-Out Cable	8.00

Available Options
Central Processing Unit (CPU)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
