PCM-9562 Atom EBX N450/D510 SBC

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

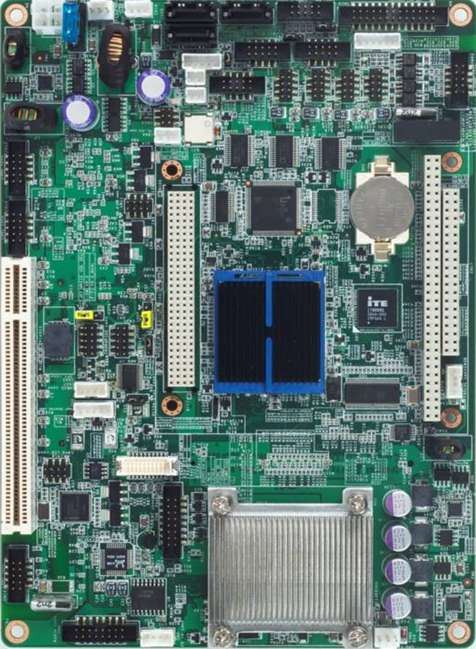

PCM-9580 SBC Image

Features

Specifications

Pricing

PCM-9562 Manual

The PCM-9562 is centered on the low power Intel® Atom Single Core N450 or Dual Core D510 processor which supports enhanced Intel “SpeedStep” technology and uses Intel’s N450/D510 chipset. This chipset is ideal for embedded computing and provide an optimized on-board integrated graphics solution. “SpeedStep” technology intelligently focuses system power where the CPU needs it and automatically regulates power usage to minimize power consumption.

The PCM-9562's design is based on the EBX form factor and provides expansion support via PC/104+, a PCI slot and a Mini PCI Express slot. The EBX form factor also provides convenient connector layout for easy assembly, more efficient cable connections, and better overall embedded system integration. This compact unit (only 8" x 5.75") offers all the functions of a rack type industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include: six serial ports, eight USB (Universal Serial Bus) 1.1/2.0 ports, three Gig Ethernet ports, an Audio port and a PS/2 keyboard/mouse interface. The built-in high-speed SATA Hard Driver controller supports a maximum transfer rate of 300MB per second. Up to three drives can be connected, including large hard disks, CD-ROM drives, and tape backup drives.

FEATURES

Embedded Intel® Atom Fanless N450 or D510 (Dual Core) Processor
Supports DDR2 memory
Supports Dual Independet Display
Supports Up to 3 Gig Ethernets
Supports Up to 6 Serial ports
Supports 8 USB 2.0 ports
Supports 3 SATA drives
Supports PC/104+, PCI & Mini PCI Express Expansion
Supports +5 V and +12 V power; or single +5 V power
Wide Temperature Version Available

SPECIFICATIONS

Standard SBC Functions

CPU: Embedded Intel Atom N450/D510 (Dual Core) 1.66GHz processor
L2 Cache: 512 KB/1 MB
Chipset: N450/D510
BIOS: AMI 16 Mbit
DRAM Memory: 1 x SODIMM socket, supports DDR2 667 DRAM up to 2GB
Expansion: PC/104+, PCI Bus, Mini PCI Express
Watchdog Timer: Dual 10ms - 1 sec & 1 - 255 sec, system reset or NMI
Power Management APM 1.2, ACPI 3.0 supported

Standard I/O

SATA Interface: Three SATA Channels supporting 3 drives
Real Time Clock: RTC with Lithium Battery
Serial Ports: 3 RS-232 and 2 RS-232/422/485 port (optional 6th RS232 port)
Parallel Port: Supports SPP, EPP, and ECP modes
USB Ports: 8 onboard USB 2.0 ports
Keyboard/Mouse: One PS/2 keyboard and one PS/2 mouse

VGA/Flat-Panel Interface

Chipset: Intel N450/D510
Video Memory: Supports up to 224 MB (shared) memory
Display Type: Flat Panel and CRT displays
Resolution: Up to 1400 x 1050/2048 x 1536 @ 60 Hz
LVDS Interface: Supports 1 channel (18-bit) 1366 x 768 LVDS LCD Panel
Dual Display: Dual Independent Display: CRT + LVDS

Ethernet Interface

Chipset:
- LAN1 - Intel 82567
- LAN2 - Intel 82583V
- LAN3 - Intel 82583V (Optional - Contact Sales - Minimum Order Quantity is required.)
Interface: 802.3u, 10/100/1000 Base-T, onboard RJ45 connector

Audio Function

CODEC: ALC888 HD
Interface: Supports AC97 Speaker Out; Line-out, Line-in, Mic-in

Solid State Disk

One CompactFlash™ socket supports Type I/II CompactFlash™ Cards (CFC).

Mechanical and Environmental

Power Requirements: AT / ATX (Both AT/ATX can support ACPI)
- AT: 12V ±10% only
- ATX: 12V ±10%, 5VSB ±5% (5V stand-by is for auto power off function)
- Maximum:
  - PCM-9562N: 13.9W (1159 mA @ 12V, 6 mA @ 5 VSB)
  - PCM-9562D: 16.9W (1404 mA @ 12V, 8 mA @ 5 VSB)
  Typical:
  - PCM-9562N: 10.8W (893 mA @ 12V, 8 mA @ 5 VSB)
  - PCM-9562D: 13.6W (1130 mA @ 12V, 10 mA @ 5 VS)
Operating Temperature: 32 to 140°F (0 to 60°C). D510 requires Fan.
- PCM-9562NZ: - 20 to + 80°C
Board Dimensions: 203 x 146 mm (8" x 5.75")
Board Weight: 0.85 kg (1.87 lb) (with Heatsink)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows WES2009/XPE
Microsoft Windows WES7
Microsoft Windows CE

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

PCM-9562N .. ATom 1.6GHz N450 Fanless SBC w/video, Dual GIG LAN	323
PCM-9562D .. ATom 1.6GHz D510 Dual Core SBC w/video, Dual GIG LAN	339
PCM-9562NZ.. ATom 1.6GHz N450 Wide Temp SBC w/video, Dual GIG LAN, 1 GB RAM	499

(Flash Disk and Memory not included.)

Optional Components

PCM-10586-9562E . Wiring Kit for the PCM-9562

55.00

Available Options
Single Board Computers (SBC)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
