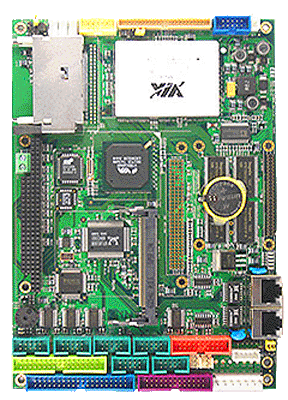

The PCM-6240 Single-Board-Computer is powered by a Fanless 533 MHz VIA Mark Processor which is a high performance, cost-effective processor with integrated ProSavage4 SA graphics controller. The processor integrates VIA’s high-performance ProSavage4 3D / 2D graphics controller with LCD and Flat Panel display interfaces.

The PCM-6240’s South Bridge is PC98 / PC99 compliant with integrated UltraDMA-100/66/33 IDE, 2 USB 1.1 ports, Dual Ethernet and AC-97 link supporting digital audio functions. The PCM-6240 integrates S3 Graphics and 128-bit ProSavage4 graphics accelerators that bring mainstream graphics performance to the PCM-6240 with leading-edge 2D, 3D and DVD video acceleration as well as combining the industry’s first integrated AGP 4X solution with Microsoft Direct-X texture compression and massive 2Kx2K textures to deliver unprecedented 3D performance and image quality. In addition, two USB ports are available as well as one Parallel port (SPP/EPP/ECP modes), an UltraDMA – 100/66/3 EIDE port (which supports up to 2 IDE devices) and four RS-232 and two RS-232/485 serial ports. The numerous features provide an ideal price/performance solution for commercial and industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

CPU: Fanless VIA Mark CoreFusion running at 533MHz
256MB of on-board SDRAM RAM
Integrated 2D/3D graphics with MPEG2 Accelerator
Dual 10/100 Base-T Ethernet
2 x USB Ports
6 x Serial Ports
PC/104+ Expansion

SPECIFICATIONS

Standard SBC Functions

CPU: Via Mark CoreFusion 533MHz Processor
Chipset: VIA VT82C686B
L1 Cache: 64KB
L2 Cache: 64KB
BIOS: AMI BIOS
Memory: On-board 256MB SDRAM
IDE Interface: One Ultra DMA 100/66/33, which supports 2 IDE Drives
Serial Ports: Four RS-232 Ports and Two RS-232/485 Ports
Parallel Port: Supports SPP, EPP, and ECP modes
USB Ports: Two onboard USB 1.1 ports
GPIO: One 16 bit General Purpose I/O
Flash: EmbedDisk (16MB and above) and Type I/II Compact Flash Cards

VGA/Flat-Panel Interface

Video Memory: Shared System Memory 8M/16M/32M
Display Type: VGA, SVGA, XGA, SXGA and DSTN/TFT Flat Panel interface support

Ethernet Interface

Chipset: Dual Realtek 8100B
Interface: Dual 10/100 Base-T Ethernet

Mechanical and Environmental

Power Requirements: +5 V @ 2.5A
Board Dimensions: 5.75" x 8 " (146 mm x 203 mm)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE
MicrosoftWindows XP
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)
Consider: PCM-5895

PCm-6240 .... EBX SBC w/ VIA 533 SBC, 256 MB RAM with Cables

USD EOL

(Flash Disk not included.)

Available Options
Single Board Computers (SBC)
System Memory (RAM)
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Wiring Terminals and Interface Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
