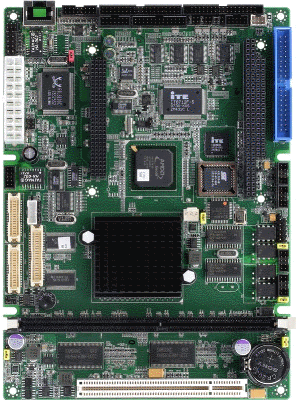

The PCM-5895 is an all-in-one multimedia AMD Geode™ LX processor based single board computer (SBC) with an integrated audio controller, a LCD/CRT Video controller, dual 100Base-Tx Ethernet ports, and one PCI expansion slot. This compact (only 5.75"“ x 8") unit offers all the functions of a rack mount industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include four serial ports (three RS-232, one RS-232/ 422/485), one multi-mode parallel (ECP/EPP/SPP) port, four USB 2.0 ports, a floppy drive controller, and a keyboard/PS/2 mouse interface. The built-in high speed PCI IDE controller supports Ultra DMA/100 mode. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives, etc.

The PCM-5895 also features power management to minimize power consumption. It complies with the APM standard and supports three types of power saving features: doze, standby, and suspend mode. In addition, the board's watchdog timer can be programmed to reset the system or generate an interrupt in case the system stops due to a program bug or EMI.

FEATURES

Onboard AMD Fanless Geode LX800/900, 500/600 MHz Processor
24-bit LVDS TFT LCD
Supports Type II CompactFlash
Provides PC/104+ and PCI expansion
4 COM, 4 USB 2.0, & Digital I/O
Dual 10/100 BaseT Ethernet
Supports DDR Memory
Dual CAN Bus (PCM-5895B)
8 GPIO Lines

SPECIFICATIONS

General Functions

CPU: Onboard AMD Fanless Geode LX800, 500 MHz Processor
BIOS: AWARD 1MB Flash ROM
Chipset: AMD Geode LX + CS5536
I/O Chipset: ITE IT8712 + IT8888G
System Memory:
- PCM-5895A: 184-pin DDR SDRAM DIMM x 1, Max 1GB (DDR 333/400)
- PCM-5895B: 256MB DDR SDRAM On-Board
Enhanced IDE: Single channel UDMA100 EIDE port supporting 2 IDE devices
Floppy: Floppy Disk interface x 1 (PCM-5895A)
CAN: Dual CAN Bus (PCM-5895B)
Serial port: RS232 x 3, RS232/422/485 x 1
IR interface: One IrDA Tx/Rx Header
USB connector: support 4 USB 2.0 ports

Display

Chipset: Native AMD Geode
Display memory: 254MB Shared
Display Type: CRT/LCD (TTL & LVDS)
Resolution: Up to 1920 x 1440 CRT / 1600 x 1200 LCD @ 24bpp

Sound Interface

Supports: Mic-in, Line-in, Line-out, CD-in

Ethernet Interface

Chipset: Realtek RTL 8139DL
Ethernet interface: Dual 10/100Base-TX RJ-45 connectors

SSD Interface

Type II Compact Flash

Expansion Interface

PCI Slot
PC/104 (PC/104+ PCM-5895-B) Socket
Type III Mini PCI Socket

Mechanical and Environmental

Power supply voltage: +5V AT/ATX
Typical power requirement: +5V @ 2.2 Amps
Operating temperature: 32 - 140 F (0 - 60 C)
Board size: 8" x 5.75" (203mm x 146mm)
Weight: 1.2 lbs.

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows XP / XPE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

PCM-5895-A ... Geode LX800 500Mhz Dual LAN & Floppy	296.00
PCM-5895-B ... Geode LX800 PC/104+, Dual LAN, CAN, 256MB RAM	277.00

(RAM & Flash Disk Not Included)

Available Add-ons

PCm-a030 ... Wiring Kit for PCM-5895A	37.00
PCm-Ko04 ... Wiring Kit for PCM-5895B	54.00

Available Options
System Memory (RAM)
Hard Drives
Flash Memory
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services
