PCM-5893

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

Features

Specifications

Pricing

PCM-5893 Manual (2.2MB)

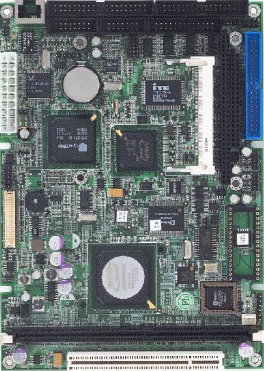

The PCM-5893 is an all-in-one multimedia AMD Geode™ GX processor based single board computer (SBC) with an integrated audio controller, a LCD/CRT Video controller, a 100Base-T Ethernet interface, Mini PCI socket and one PCI expansion slot. With true Pentium® MMX™ capability, the PCM-5893 achieves outstanding performance that surpasses other SBC in its class. In addition, the onboard SSD CompastFlash interface supports Flash Disks with a capacity from 64 MB to 2 GB in addition to DOC Flash Disks. This compact (only 5.75"“ x 8") unit offers all the functions of a single board industrial computer, but still fits in the space of a CD-ROM drive.

On-board features include four serial ports (three RS-232, one RS-232/ 422/485), one multi-mode parallel (ECP/EPP/SPP) port, two USB 1.1 ports, a floppy drive controller, and a keyboard/PS/2 mouse interface. The built-in high speed PCI IDE controller supports Ultra DMA/66 mode. Up to two IDE devices can be connected, including large hard disks, CD-ROM drives, and tape backup drives, etc.

The PCM-4896 also features power management to minimize power consumption. It complies with the APM standard and supports three types of power saving features: doze, standby, and suspend mode. In addition, the board's watchdog timer can be programed to reset the system or generate an interrupt in case the system stops due to a program bug or EMI.

FEATURES

Onboard AMD Fanless Geode GX 333 & 400 MHz Processor
18/24/36-bit Dual Channel TTL TFT / 24-bit DSTN LCD
Supports Type II CompactFlash and DiskOnChip Flash Disks
Provides Type III Mini PCI, PC/104 and PCI expansion
4 COM, 4 USB, & Digital I/O
Supports DDR Memory

SPECIFICATIONS

General Functions

CPU: Onboard AMD Fanless Geode GX 333 & 400 MHz Processors
BIOS: AWARD 256KB Flash ROM
Chipset: AMD Geode CS5535
I/O Chipset: ITE IT8712IX
System Memory: 194-pin DDR SDRAM DIMM x 1, Max 512MB (DDR 266)
Enhanced IDE: UDMA66 x 1
Serial port: RS232 x 3, RS232/422/485 x 1
IR interface: One IrDA Tx/Rx Header
USB connector: support 4 USB 1.1 ports
GPIO: 8 Inputs or 8 Outputs

Display

Chipset: Native CS5535 with optional (SMI SM712)
Display memory: 16MB Shared, (Built-in 4MB SDRAM )
Display Type: CRT/LCD-TFT/(DSTN )
Resolution: Up to 1280x1024 LCD/CRT, (800x600 DSTN )

Sound Interface

Chipset: Native CS5535, 16-bit stereo digital audio
Supports: Mic-in, Line-in, Line-out, CD-in

Ethernet Interface

Chipset: Realtek RTL 8100BL
Ethernet interface: 10/100Base-TX RJ-45 connector

SSD Interface

Type II Compact Flash
DiskOnChip (DOC)

Expansion Interface

PCI Slot
PC/104 Socket
Type III Mini PCI Socket

Mechanical and Environmental

Power supply voltage: +5V AT/ATX
Typical power requirement: +5V @ 1.8 Amps
Operating temperature: 32 - 140 F (0 - 60 C)
Board size: 8" x 5.75" (203mm x 146mm)
Weight: 1.2 lbs.

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows CE /CE.net
Microsoft Windows NT / NTE
Microsoft Windows XP / XPE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-5893L-00 ... Geode GX 333Mhz Geode Video & LAN	285.00
PCM-5893L-01 ... Geode GX 400Mhz Geode Video & LAN	309.00
PCM-5893-01 .... Geode GX 400Mhz SMI SM712 Video & LAN	352.00

(RAM & Flash Disk Not Included)

Available Add-ons

PCm-ao11 ... Wiring Kit for PCM-5893

USD 35.00

Available Options
System Memory (RAM)
Hard Drives
Flash Memory (DiskOnChip®)
Operating Systems
PC/104 Modules
LCDs and Touchscreens
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
