PCM-3375

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

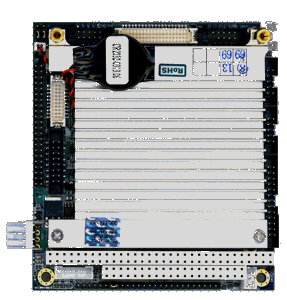

PCM-3350 Image

Features

Specifications

Pricing

PCM-3375 Manual (2.2MB)

The PCM-3375 utilizes an onboard VIA 533 or 800 MHz Mark Fanless processor, which has an integrated VIA Twister chipset, making the PCM-3375 one of the smallest and powerful SBCs on the market. Unlike other high-end PC/104 SBCs, the PCM-3375 maintains the true PC/104 standard form-factor and does not require “wings”. The PCM-3375 gives developers a low power, high performing and scalable platform with superior graphics capabilities that can fit into the tightest places. PC/104- I/O expansion allows features to be quickly added using any one of EMAC’s many PC/104 expansion modules. The PCM-3375 is perfect for applications such as military and industrial automation where uncompromised performance in a limited space is required.

The integrated Savage4™ AGP 4X 3D Graphics core maintains excellent graphics performance and provides VGA/LCD support up to 1400 x 1050. SDRAM memory capacity up to 256MB is large enough to drive the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE.net, Windows NTE, and DOS 6.22. A CompactFlash socket supports Type I/II CompactFlash Cards, which can be used to eliminate the use of fragile hard disks, increasing reliability in harsh environments. Two USB 1.1 ports are available as well as one parallel port (SPP/EPP/ECP modes), one high-speed RS-232 and one high-speed RS-232/485/422 serial port. With its industrial grade reliability, the PCM-3375 can operate continuously at temperatures up to 140º F (60º C) without a fan. The numerous features provide an ideal price/performance solution for high-end commercial and industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

VIA Mark 533MHz or 800MHz Fanless CPU
Supports CompactFlash
PC/104 Expansion Interface
10/100BaseT Ethernet
18-bit LCD & CRT interface

SPECIFICATIONS

Standard SBC Functions

CPU: VIA Mark 533MHz or 800MHz Fanless CPU with Integrated Video
BIOS: AWARD 256 KB Flash BIOS
Chipset: VIA VT8606
RAM: One SODIMM socket accepting up to 512MB of PC133 SDRAM
SSD: Supports CompactFlash Card TYPE I (share 2nd IDE Channel)
Graphics: Up to 1280 x 1024 CRT, and 1024 x 1024 18-bit LCD
Ethernet: Intel 82551ER 10/100 Base-T Fast Ethernet
Watchdog: 63 Scale, hardware reset and IRQ selection
IDE interface: 1 x EIDE interface (DMA 33)
PC/104 expansion: 1 x PC/104 Expansion inteface

Super I/O

One PC-AT keyboard/mouse connector
Serial: 1 x RS232, 1 x RS232/422/485
One parallel port
Infrared: 115 Kbps, IrDA 1.1 Compliant

Mechanical and Environmental

Operating Voltage: +5V
Power consumption: Typical 1.2A, Max 1.8A
Dimensions: 96 mm x 90 mm (3.8" x 3.5")
Operating temperature: 0-68C (32-140F)
Weight: 0.097kg

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

PCM-3375F-l ... PCM-3375 Mark 533 Mhz w/ LVDS

USD 284.00

(RAM & CompactFlash card not included.)

Optional Cabling

CAB-40-001-1 ... USB Cable for PCM-3375	12.00
CAB-20-001-1 ... 44-pin to dual 40-pin EIDE Cable	20.00

Available Options
Hard Drives
Flash Memory (CompactFlash™)
Operating Systems
PC/104 Modules
Enclosures
Power Supplies
Custom and Semi-custom Engineering Services

Product pricing, features, and specifications are subject to change without notice.
