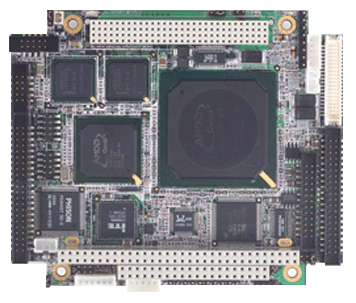

PCM-3353 PC/104+ CPU Module

Single Board Computers
Microprocessor Training Systems
Custom Engineering & Manufacturing

Features

Specifications

Pricing

EMC-i613 Celeron/Pentium 3 SBC
PCM-3353 Manual

The PCM-3353 utilizes an onboard Ultra-Low Voltage Fanless AMD Geode LX800 500 MHz processor, which makes the PCM-3353 one of the smallest and most energy efficient x86 SBCs on the market. The PCM-3353 gives developers a low power, low cost and scalable platform that can fit into the tightest places. PC/104+, PCI/104 and PC/104 expansion allows features to be quickly added using any one of EMAC’s many PC/104, PC/104+, or PCI/104 expansion modules. The PCM-3353 is perfect for applications such as data acquisition and industrial automation where low power in a limited space is required.

The PCM-3353 uses its onboard Geode graphic chipset that provides excellent graphics performance and provides flat panel support using digital dual independent displays with CRT, LVDS, and TTL interfaces. An SDRAM memory capacity of up to 1GB is large enough to accommodate the latest operating systems, including Linux, RTAI Real-Time Linux, Microsoft Windows XP/XPE, Windows CE 6.0, Windows Vista and DOS 6.22. Four USB 2.0 ports are available as well as 4 serial ports (Three RS-232 & One RS-232/422/485). With its high grade reliability, the PCM-3353 can operate continuously at temperatures up to 140º F (60º C) without a fan. A Industrial temperature version is available that extends its temperature rating to -40º to 85 º C. The numerous features provide an ideal price/performance solution for industrial applications where stability and reliability (no moving parts) are essential.

FEATURES

AMD Geode LX800/500 MHZ Fanless Processor
200-pin SO-DIMM up to 1GB DDR DRAM
18/24 Bit TFT & 18 Bit LVDS Video Interfaces
Support Dual Independent Display (CRT, LVDS and TTL LCD)
Intel 82551ER 10/100 Base-T Ethernet, Optional Dual Ethernet
AC97 Audio Interface
4 x USB Ports
4 x Serial Ports
Optional Extended Temperature
Compact Flash Socket
Supports PC/104 and PCI PC/104+ Interface

SPECIFICATIONS

Standard SBC Functions

CPU: Embedded AMD Geode LX800, up to 500 MHz
L2 Cache: 128 KB
Chipset: AMD Geode LX800
BIOS: Award 4 Mbit Flash BIOS
Memory:
- PCM-3353: One 200-pin SO-DIMM socket supports up to 1 GB DDR DRAM
- PCM-4153: On-Board Flash (1GB) & RAM (512MB)
Flash Disk: Type 1 Compact Flash socket (not available on PCM-4153)
IDE Interface: One EIDE, which supports 2 IDE Drives
Serial Ports: Three RS-232 Ports , One RS-232/422/485 Port
USB Ports: Four onboard USB 2.0 ports
Expansion Bus : Supports One PC/104 and One PCI PC/104+ Interface
Power Management: APM 1.2
GPIO: 8 General Purpose I/O Lines
Watchdog Timer: 255-level Reset

VGA/Flat-Panel Interface

Chipset: AMD Geode LX800
Video Memory: Supports up to 64MB Shared Memory
Display Type: Flat Panel and CRT displays
Resolution: Up to 1920 x 1440 @ 32 bpp
LCD Interface: Flat Panel 18/24-bit TTL TFT & 18-bit LVDS interfaces
Video Interface: Dual Independent CRT+LVDS or CRT+TTL

Ethernet Interface

Chipset: Intel 82551ER
Interface:
- PCM-3353: 10/100 Base-T Ethernet

PCM-4153: Dual 10/100 Base-T Ethernet

Audio Interface

Interface: AC97 2.0 supports Mic-In/Line-In/Line-Out

Mechanical and Environmental

Power Requirements: +5 V @ 1.35 A typical
Operating Temperature: 32 to 140°F (0 to 60°C)
- Optional Wide Temp: -20 to 80°C
- Optional Industrial Temp: -40 to 85 °C
Board Dimensions: 4.5" x 3.8" (115 mm x 96 mm)

Operating System Compatibility

Linux & RTAI Real-Time Linux
Microsoft Windows XP / XPE
Microsoft Windows CE
Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup,Testing, & Enhanced Support)

PCM-3353F-L .. 500MHz PC/104+ SBC w/SINGLE lan/CF	274.00
PCM-3353Z-L .. 500MHz PC/104+ SBC w/SINGLE lan/CF/wIDE tEMP	338.00 (NCNR)
PCM-4153F-L .. 500MHz PC/104+ w/Dual LAN/on-board Flash&RAM	398.00
PCM-4153Z-L .. 500MHz w/Dual LAN/on-board Flash&RAM/wide Temp	497.00 (NCNR)
PCM-4153Z2-L . 500MHz w/Dual LAN/on-board Flash&RAM/IND. Temp	601.00 (NCNR)

(Flash Disk and Memory not included.)
