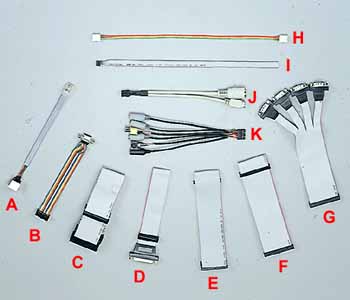

Cable Description
|
Terminal Connector
|
|
|
A
|
Network 10/100Base-T
|
RJ-45 extended cable
|
|
B
|
VGA CRT
|
15-pin DSUB
|
|
C
|
Dual floppy, 3.5" and 5.25" (34P)
|
34-pin dual floppy
|
|
D
|
Parallel Port
|
25-pin female DSUB
|
|
E
|
2.5" and 1.8" IDE
|
44-pin, 2 mm, female ID C (350mm)
|
|
F
|
3.5" IDE (40P)
|
40-pin, 2.54mm, female ID C (500 mm)
|
|
G
|
RS-232 Serial Port, 4 COM Ports
|
40-pin, 2.54mm
|
|
H
|
Peripheral power (-5V and -12V)
|
4 conductor
|
|
I
|
Front panel
|
8-conductor pigtail
|
|
J
|
Keyboard and PS/2 mouse
|
5-pin DIN 6-pin cirecular DIN
|
|
K
|
Audio Input/Output & TV Output
|
Speaker, Line Out, Line In, Mic In, TV Output,
S Terminal
|
PRICING (Single Unit. Includes: Integration, Setup, and Testing)PCM-10489-5 ... Cabling
- PCM-4896/L, 5896, 6890/B .............. |
35.00|
|
|
