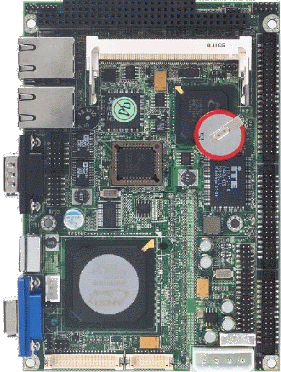

The PCM-5315 is based on the AMD Geode LX800/ LX900 500 Mhz CPU and is designed to provide the ideal combination of low power, great performance, widely expanded interfaces and small size for applications that require a small form factor and lower-scale processor support.

The PCM-5315 features DDR SDRAM support up to 1GB, up to 1920x1440@24bpp video resolution with shared system memory up to 254MB that makes the PCM-5315 suitable for applications that require superior computing and graphic display performance. PCM-5315 also features PC/104 and Mini PCI expansion interfaces that work with a wide range of EMAC's PC/104 and Mini PCI peripheral modules. This expansion capability makes the PCM-5315 very flexible allowing it to adapt to legacy PC/104 devices as well as newer middle-to-high level Mini PCI devices.

The PCM-5315 is an ideal board for applications such as data acquisition, industrial control, thin client applications and other uses that leverage low-power consumption with optimized processor performance.

FEATURES

• Onboard AMD Geode LX800/ LX900 500 Mhz Processor
• Fanless Operation
• 24-bit TTL/LVDS TFT LCD
• Supports DDR Memory
• Supports Type II CompactFlash
• Supports Mini PCI & PC/104
• Dual 10/100-Base-TX Ethernet Ports
• 8-bit Programmable Digital I/O Lines

SPECIFICATIONS

Standard SBC Functions

• CPU: Onboard AMD Geode LX800/ LX900 500 Mhz.
• Chipset: AMD Geode LX + AMD CS5536
• BIOS: AWARD 512KB Flash ROM
• System Memory: 200-pin DDR SODIMM x 1, Max 1GB (DDR333)
• SSD: Type II CompactFlash slot
• Watchdog: Generates a time-out system reset
• Expansion: PC/104 & Mini PCI
• Audio: MIC-in, Line-in, Line-out, CD-in

Super I/O

• FDD interface: Supports one FDDs
• IDE interface: EIDE x 1(UDMA 33)
• Keyboard/Mouse: PS2 Port for Keyboard & Mouse
• Serial ports: RS-232 x 1 & RS-232/422/485 x 1
• Parallel port: One parallel port supports SPP/EPP/ECP parallel modes
• Infared port: Supports Tx/Rx header
• USB interface: Four USB 2.0 ports
• Digital I/O: Supports 8-bit Programmable

SVGA/Flat Panel Interface

• Display type: Simultaneously supports both CRT and 24-bit TFT LCD displays
• Chipset: AMD Geode + TI SN75LVDS83
• Display memory: Shared system memory up to 254MB
• Resolution: Up to 1920 x 1440 @ 24bpp for CRT & Up to 1600 x 1200 @ 24bpp for LCD
• LCD: Up to 24-bit single channel TTL/LVDS TFT LCD

Ethernet Interface

• Chipset: Realtek RTL8139DL
• Ethernet interface: PCI 10/100 Mbps Ethernet, IEEE 802.3u protocol compatible
• Connectors: Two RJ-45 connectors

Mechanical and Environmental

• Power Supply Type: AT/ATX
• Power Requirments: +5V @ 1.5 Amps
• Dimensions: 5.75"(L) x 4"(W) (146mm x 102mm)
• Operating temperature: 0 ~ 60° C (32 ~ 140 ° F)
• Weight: 0.88lb (0.4kg)

Operating System Compatibility

• Linux & RTAI Real-Time Linux
• Microsoft Windows CE /CE.net
• Microsoft Windows NT / NTE
• Microsoft Windows XP / XPE
• Microsoft MS-DOS 6.22 & RomDos 6.22

PRICING (Single Unit. Includes: Integration, Setup, and Testing)

pcm-5315 ... Geode LX800/LX900 500 Mhz, LCD & DUAL LAN

295.00

(CompactFlash card and RAM not included.)
